PREPARE THE HOOD

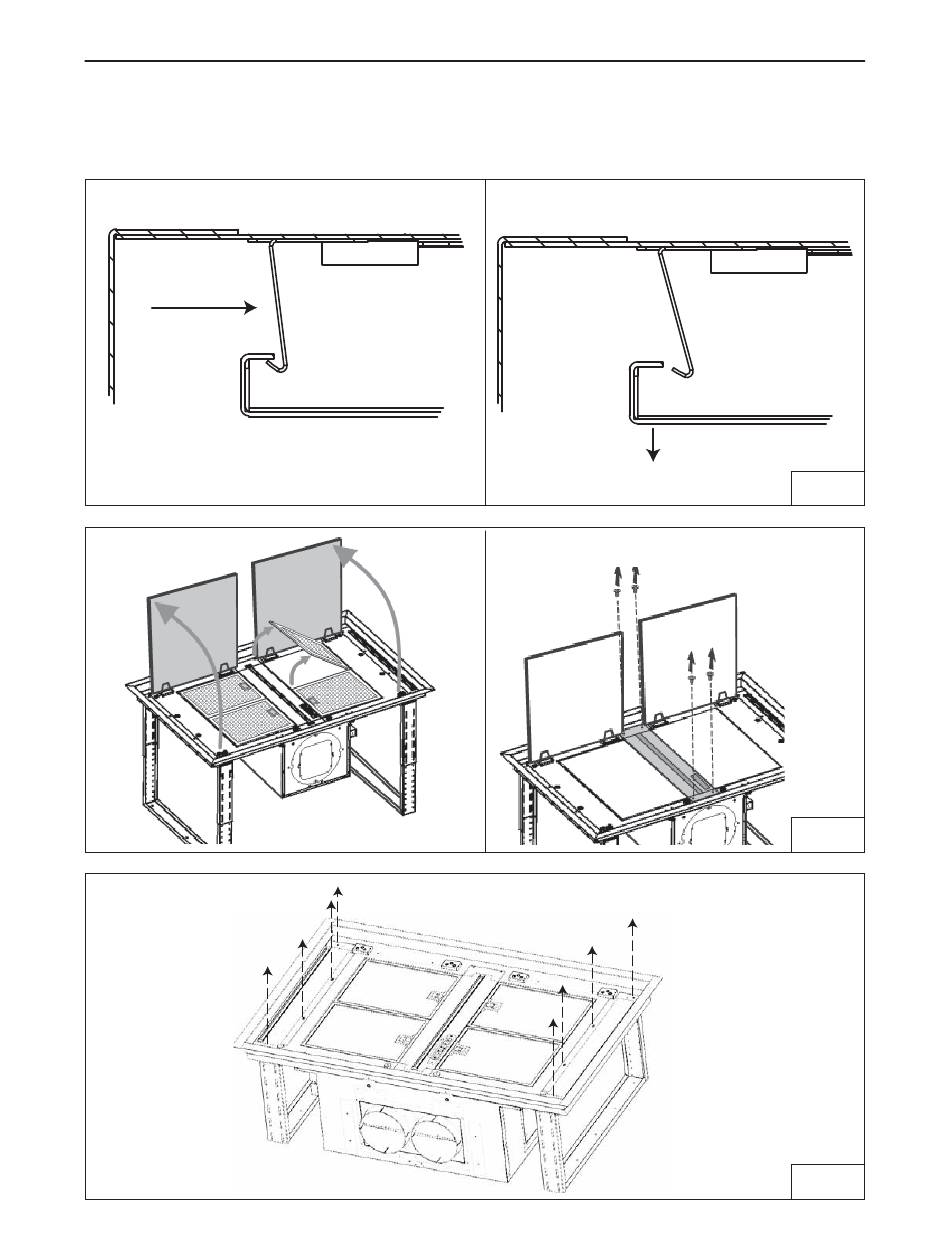

1. Push in lock tab behind center of perimeter panel to open. See FIG. 10.
1. Open the perimeter panels and remove the mesh filters. See FIG.11.
2. Remove the central panel/s unscrewing the 3/16 x 1/4 screws. See Fig.11.
3. Remove the (2) light panels by unscrewing the 3/16 x 1/4 screws (ALU-E43 model only). See Fig.12.
Model ALU-E43
- 18 -
FIG.10
REMOVE (4)
MOUNTING
SCREWS (3/16 x
1/4 Flat Head)
FIG.11
REMOVE (4+4)
MOUNTING
SCREWS (3/16 x
1/4 Flat Head)
FIG.12
