10 Interfaces

10.1 Parallel Interface

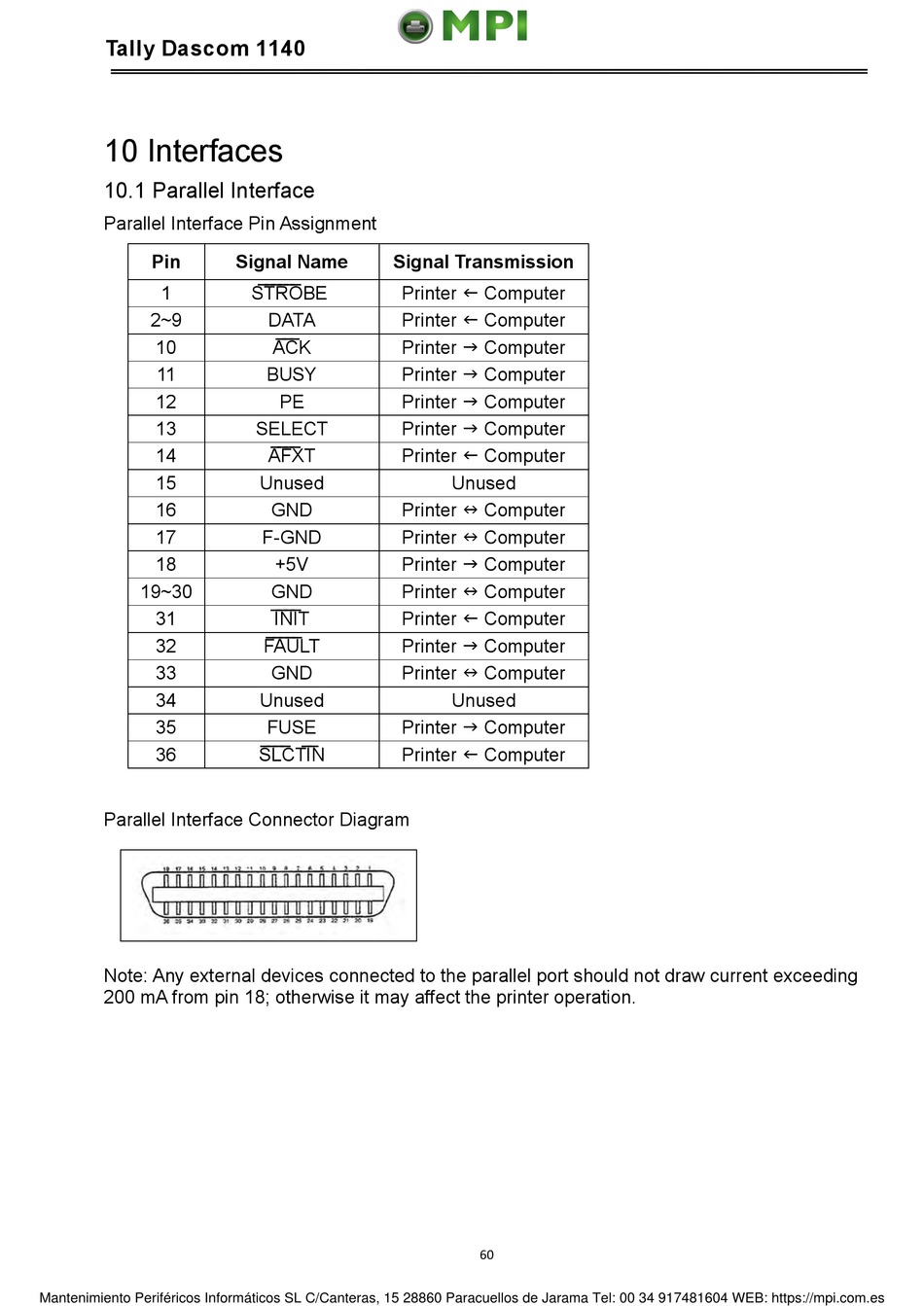

Parallel Interface Pin Assignment
Pin
1
2~9
10
11
12
13
14
15
16
17
18
19~30
31
32
33
34
35
36
Parallel Interface Connector Diagram
Note: Any external devices connected to the parallel port should not draw current exceeding
200 mA from pin 18; otherwise it may affect the printer operation.
