Tally Dascom DT-210/230

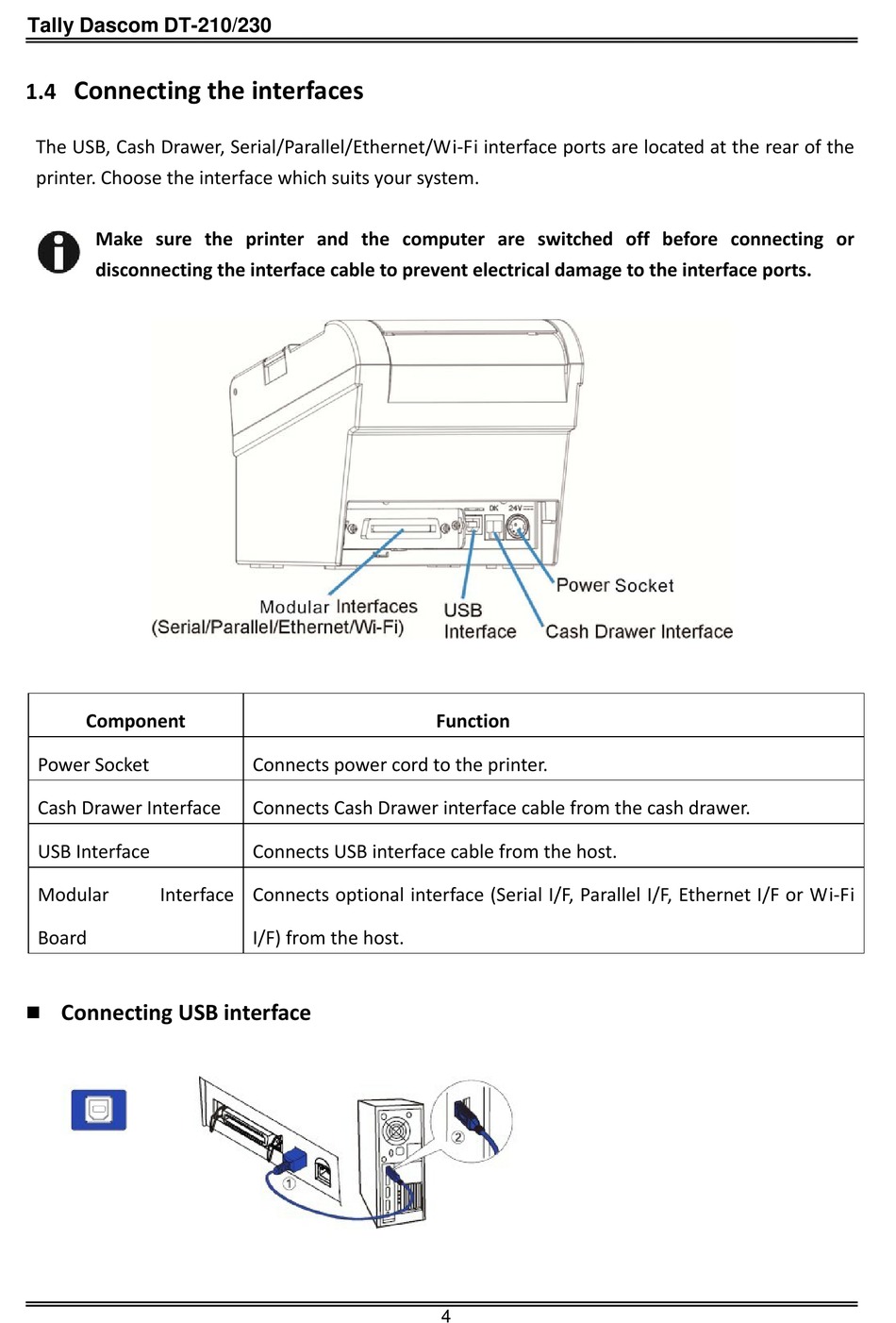

Connecting the interfaces
1.4

The USB, Cash Drawer, Serial/Parallel/Ethernet/Wi‐Fi interface ports are located at the rear of the
printer. Choose the interface which suits your system.

Make  sure  the  printer  and  the  computer  are  switched  off  before  connecting  or
disconnecting the interface cable to prevent electrical damage to the interface ports.

















Component
Power Socket
Cash Drawer Interface
USB Interface
Modular
Interface
Board


Connecting USB interface

Connects power cord to the printer.
Connects Cash Drawer interface cable from the cash drawer.
Connects USB interface cable from the host.
Connects optional interface (Serial I/F, Parallel I/F, Ethernet I/F or Wi‐Fi
I/F) from the host.
