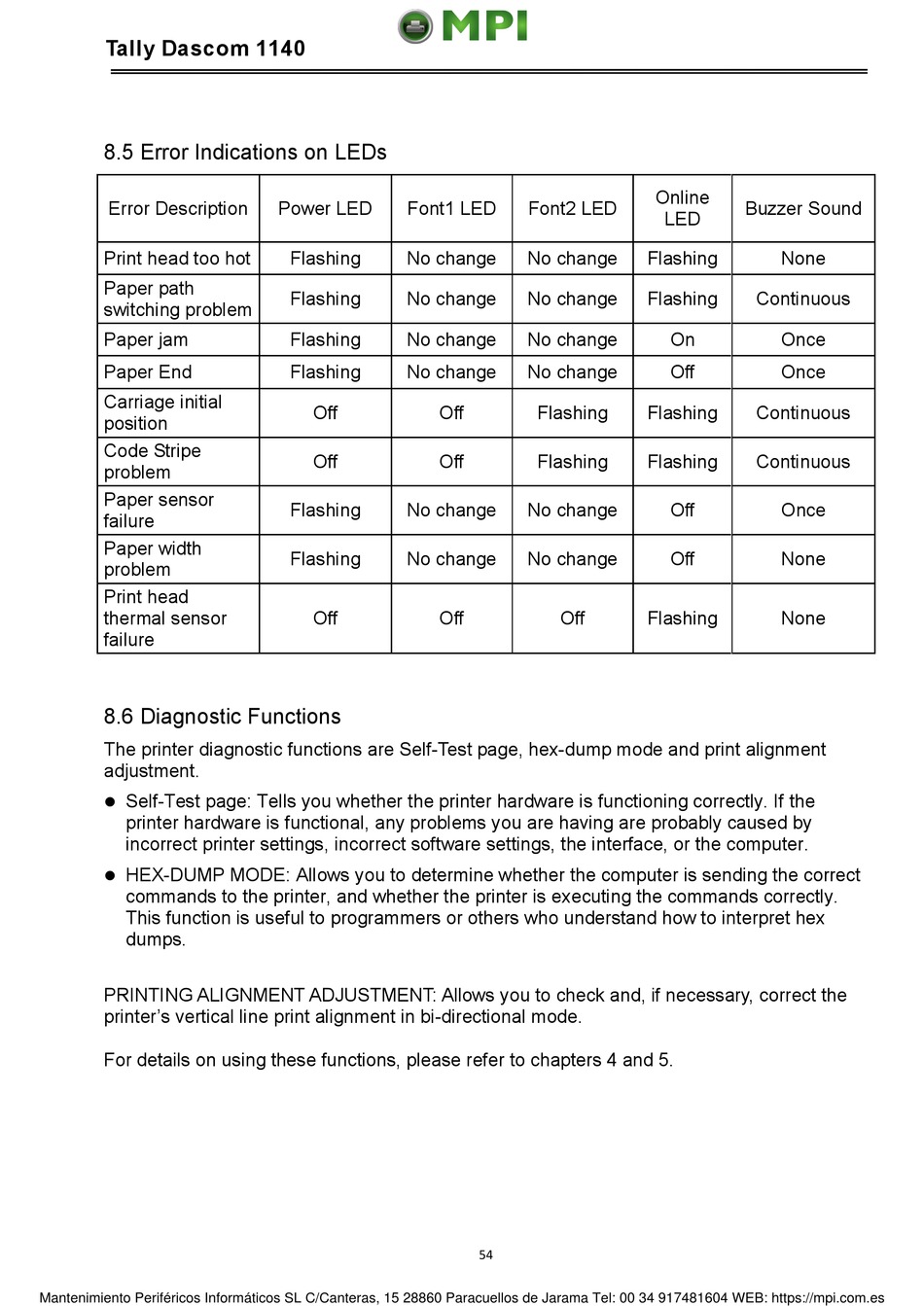

8.5 Error Indications on LEDs

Error Description
Print head too hot
Paper path
switching problem
Paper jam
Paper End
Carriage initial
position
Code Stripe
problem
Paper sensor
failure
Paper width
problem
Print head
thermal sensor
failure

8.6 Diagnostic Functions

The printer diagnostic functions are Self-Test page, hex-dump mode and print alignment
adjustment.
Self-Test page: Tells you whether the printer hardware is functioning correctly. If the

printer hardware is functional, any problems you are having are probably caused by
incorrect printer settings, incorrect software settings, the interface, or the computer.
HEX-DUMP MODE: Allows you to determine whether the computer is sending the correct

commands to the printer, and whether the printer is executing the commands correctly.
This function is useful to programmers or others who understand how to interpret hex
dumps.
PRINTING ALIGNMENT ADJUSTMENT: Allows you to check and, if necessary, correct the
printer's vertical line print alignment in bi-directional mode.
For details on using these functions, please refer to chapters 4 and 5.
