User manual
Z10TL

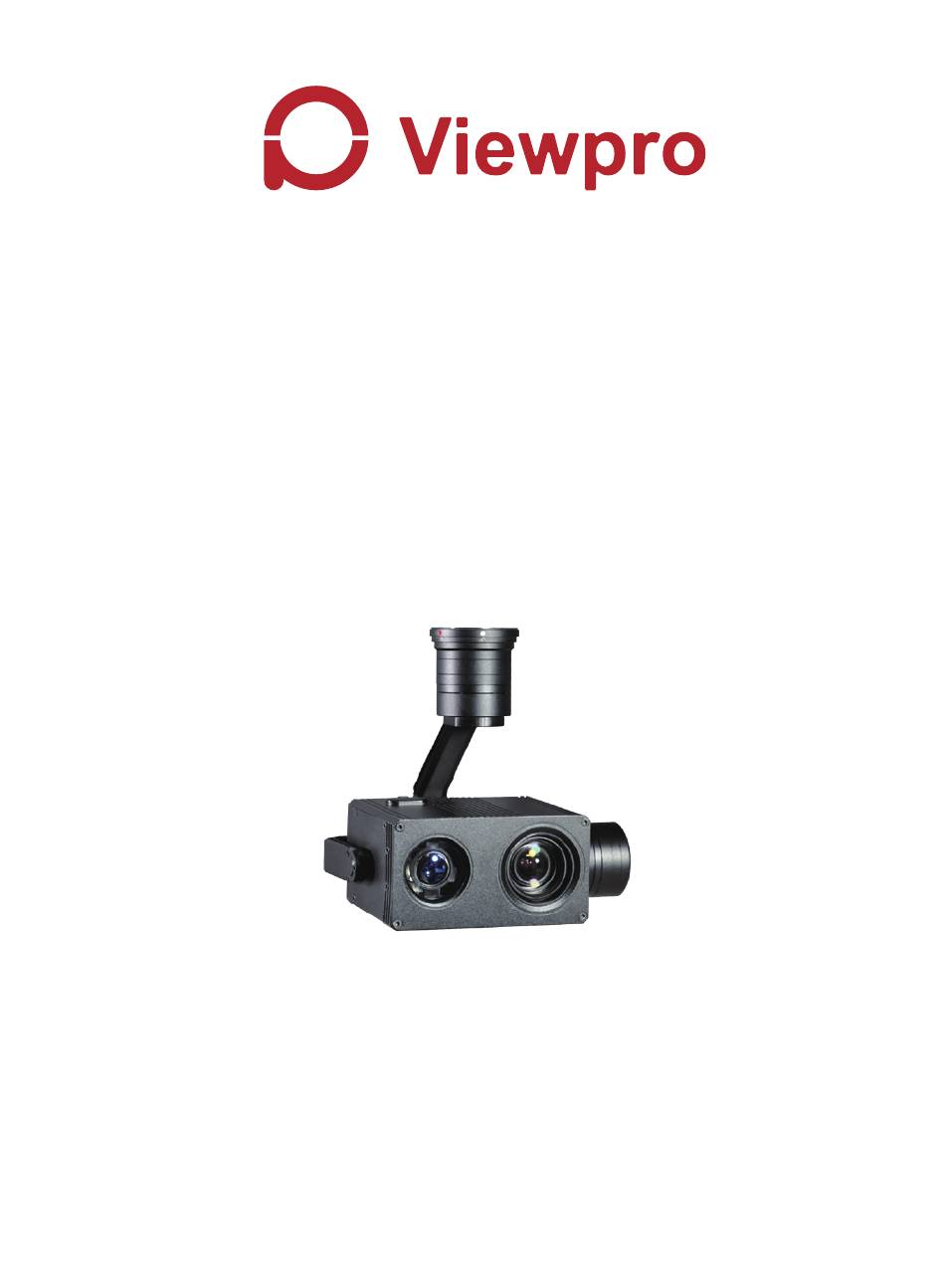

10x Zoom IR Laser Night Vision Object Tracking Gimbal Camera
Compatible with DJI M200/M210/M210RTK
Images are for reference only, please subject to the actual product.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Z10TL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Viewpro Z10TL

Summary of Contents for Viewpro Z10TL

  • Page 1 User manual Z10TL 10x Zoom IR Laser Night Vision Object Tracking Gimbal Camera Compatible with DJI M200/M210/M210RTK Images are for reference only, please subject to the actual product.

  • Page 2: Table Of Contents

    Contents Z10TL High-precision Camera 1. Camera introduction..................1 2. Camera description....................1 3. Mechanics@Electronic characteristics.............2 4. Application description..................2 5. Specification....................9...

  • Page 3: Camera Introduction

    10 times optical zoom, object tracking, IR laser night vision and so on. The speed of Z10TL gimbal is adjustable, LOW speed mode for tele end, the control will be more accurate; Fast mode for wide end, which makes the gimbal control sensitive and quick.

  • Page 4: Mechanics@Electronic Characteristics

    Application Description DJI Pilot After mounting Z10TL on DJI drone and connecting with remote control, you can operate the gimbal camera via APP DJI Pilot. The gimbal attitude angels (tilt and pan) can be controlled by DJI remote control. Control method please refer to DJI related user manual.
  • Page 5 1.1 Camera settings - Photo mode settings: You can choose single shot, burst mode or interval mode. 1.2 Payload Settings:...
  • Page 6 Gimbal Speed: Gimbal speed is adjustable. When it’s 0%, the speed will be adjust automatically, quick speed for wide end, slow speed for tele end. When you adjust it to 1% manually, the speed will be low even in wide end. The high the percentage is, the quicker the speed will be. OSD Display Options: You can DIY you on-screen-display (OSD).
  • Page 7 (estimate). Digital Zoom Options: The EO camera of Z10TL has 6 times digital zoom. Press T continually will get digital zoom automatically after 10x full optical zoom. Or choose digital zoom from Payload settings directly. The zoom times number will become blue when it’s in digital zoom statu.
  • Page 8 Camera Settings: Choose defog or flip the screen when necessary.
  • Page 9 2.1 IR laser light for Night Mode Z10TL can let you see clearly even in a pitch-dark environment with an invisible light. Switch on IR light (then Night Mode will be turned on automatically), you will see a laser light spot on the target directly.
  • Page 10 2.2 Object tracking Start tracking: Enable tracking function, then single touch on the screen to pick tracking object. Stop tracking：Payload Settings --CANCEL TRACKING *Note: the gimbal will follow the object automatically after object is chosen, to control the gimbal manually please cancel tracking first.

  • Page 11: Specification

    Specification Hardware Parameter Working voltage Input voltage 3S ~ 4S Dynamic current 1100mA @ 12V Idle current 800mA @ 12V Power consumption ≤ 13.2W Working environment temp. ~ +60 ℃ ℃ Output Skyport Local-storage SD card (Up to 128G, class 10, FAT32 or ex FAT format) Control method DJI Pilot Gimbal Spec...
