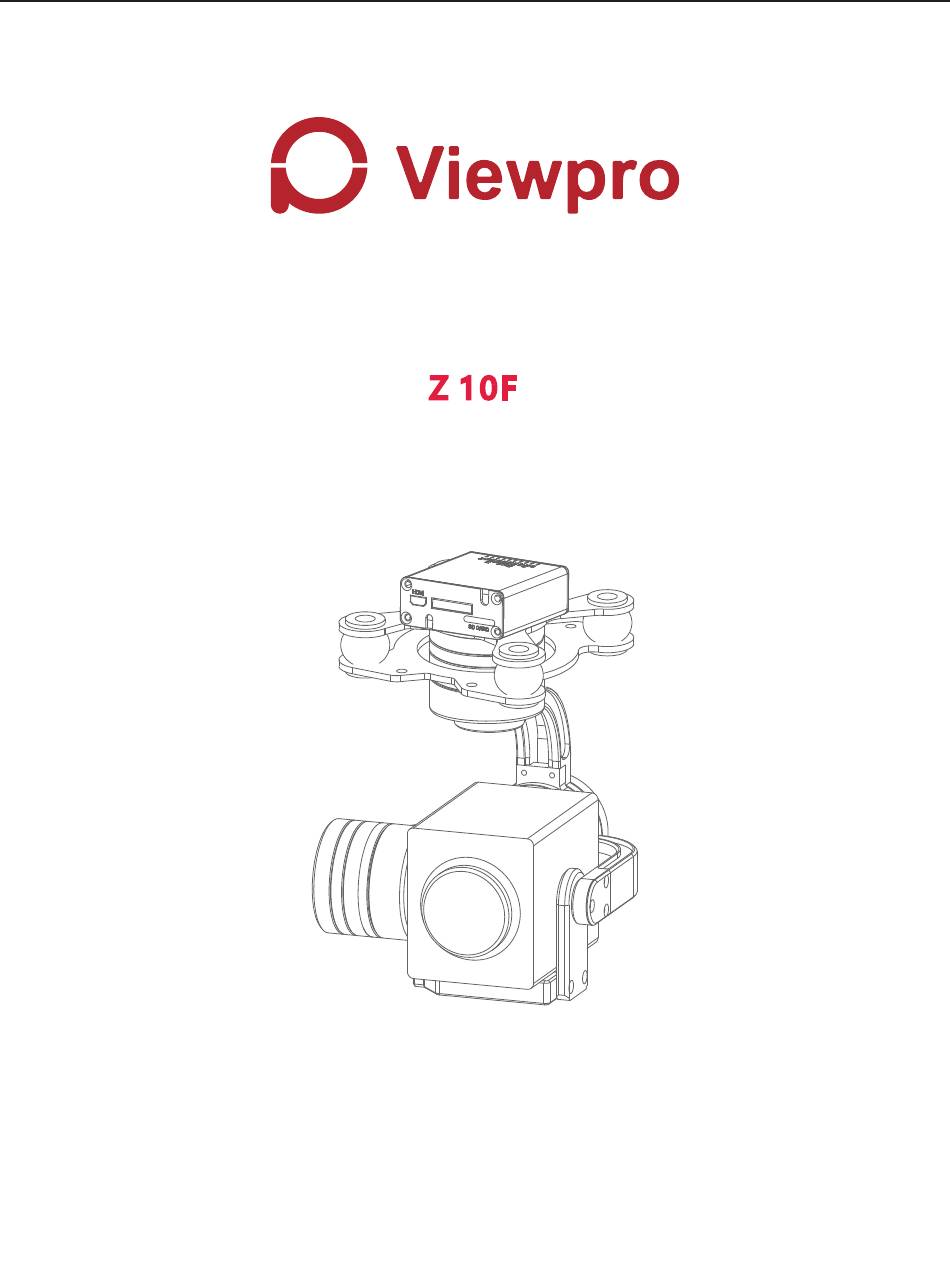

- Page 1 User manual 1 0 F 10x Optical Zoom Camera Gimbal Images are for reference only, please subject to the actual product.
-
Page 2: Table Of Contents
Contents Z10F Pinpoint-precision Gimbal 1.Gimbal introduction ....................2 2.Object tracking function (Optional) ............2 3.Gimbal description ..................3 4.Packing list ....................4 5. Gimbal dimension ..................4 6. Installing ....................5 7. Mechanics@Electronic characteristics .............5 8. Working characteristics ................5 9. Connection of control box and wiring instructions ........6 10. -
Page 3: Gimbal Introduction

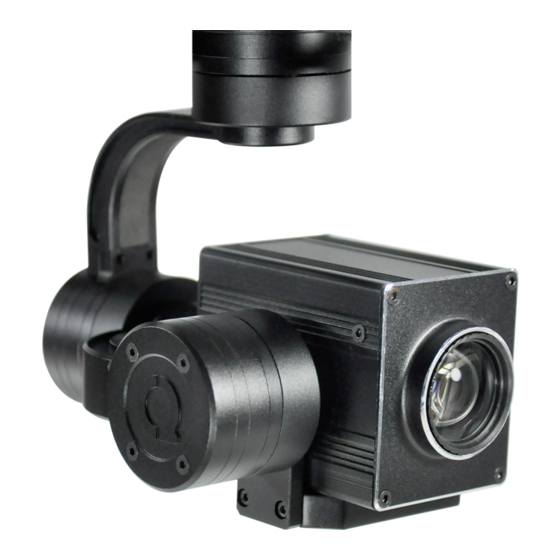

Gimbal Introduction Z10F is a pinpoint-precision professional 3-axis gimbal with a 10x optical zoom camera which features high stability, small size, light weight and low power consumption. The 3-axis gimbal based on FOC motor control technology, adopts pinpoint-precision encoder in each motor. The speed of Z10F gimbal is adjustable, LOW speed mode is used for large zoom range, the control will be more accurate;... -
Page 4: Gimbal Description
Gimbal Description [1] Damping balls [5] Roll axis motor [2] Upper damping board [6] Pitch axis motor [3] Lower damping board [7] HD zoom camera [4] YAW axis motor [8] Camera mounting based Please make sure that the motor is not stopped by any object during the rotation, if the gimbal is blocked during rotation, please remove the obstruction immediately. - Page 5 Gimal Dimenstion Uint: mm 86.2 108.3...
-
Page 6: Installing
Installing Mechanics@Electronic Characteristics 3S~ 4S 240mA@12V Input voltage Idle current Working Dynamic current 320mA@12V -10°~+50° environment temp 395g Size L108*W86.2*H113.3mm Weight Working Characteristics Pitch angle range of action: -90°~+90° Roll angle range of action: -45°~+45° Yaw angle range of action:- 150°~+150° Non-polar rotation Vibration angle: Pitch/Roll: ±0.02°, Yaw: ±0.03°... -
Page 7: Connection Of Control Box And Wiring Instructions
Connection of Control Box and Wiring Instruction HDMI: micro HDMI OUTPUT 1080P 60fps default SD card: max 32G, class10 FAT32 or format PWM in 5V output USER BOARD TTL 115200/8/1/N... - Page 8 S.bus/Rx: connect to Rx2 for track function. Roll/ Tx: connect to Tx2 for track function. Pitch: PWM in, pitch control 1. Pitch up 2. Pitch stop W e h ave p ro t o co l f o r c o n t r o l t h e g i m b a l an d cam er a, p l ease co n t act o u r t ech n i cal su p p o r t...
- Page 9 Mode: Change the speed / home position Position 1: Lowest speed for pitch and yaw. Position 2: Middle speed for pitch and yaw. Position 3: Highest speed for pitch and yaw. The speed is continuously quickly from 1 to 3. One click: Home position.
- Page 10 Pic /Rec picture / Start record, stop record Switch 2 to 1: camera mode change. Picture mode: the number is quantity of SD card can storage; Record mode: the time is recording time from start record. Switch 2 to 3: A) take a picture. B) Start record / stop record Multi: Backup PWM channel for customize AV: AV output.
-
Page 11: Camera Introduction
Camera Introduction Z10F has 4 mega effective pixel, supports 10x optical autofocus, possess HD 1080P video.There are two video streams in the camera, one is 1080P 30FPS, local H.264 compression, stored in the device SD card, another video output 1080p60FPS HDMI HD signal for the wireless transmission, according to the characteristics of UAV photography application, we design fast auto-focus speed , small size, and support PWM and serial command control. -
Page 12: Functional Characteristics
Functional Characteristics Zoom Range Zoom focal length f=4.9~49mm, zoom ranges up to 10 times, exhibiting image detail Perfectly. The Speed of Focusing Design for UAV aerial photography, according to aerial characteristics, using fast focus algorithm, focus time <1s. Wide Dynamic Adopt 105dB wide dynamic range, in the presence of backlit or strong light.
