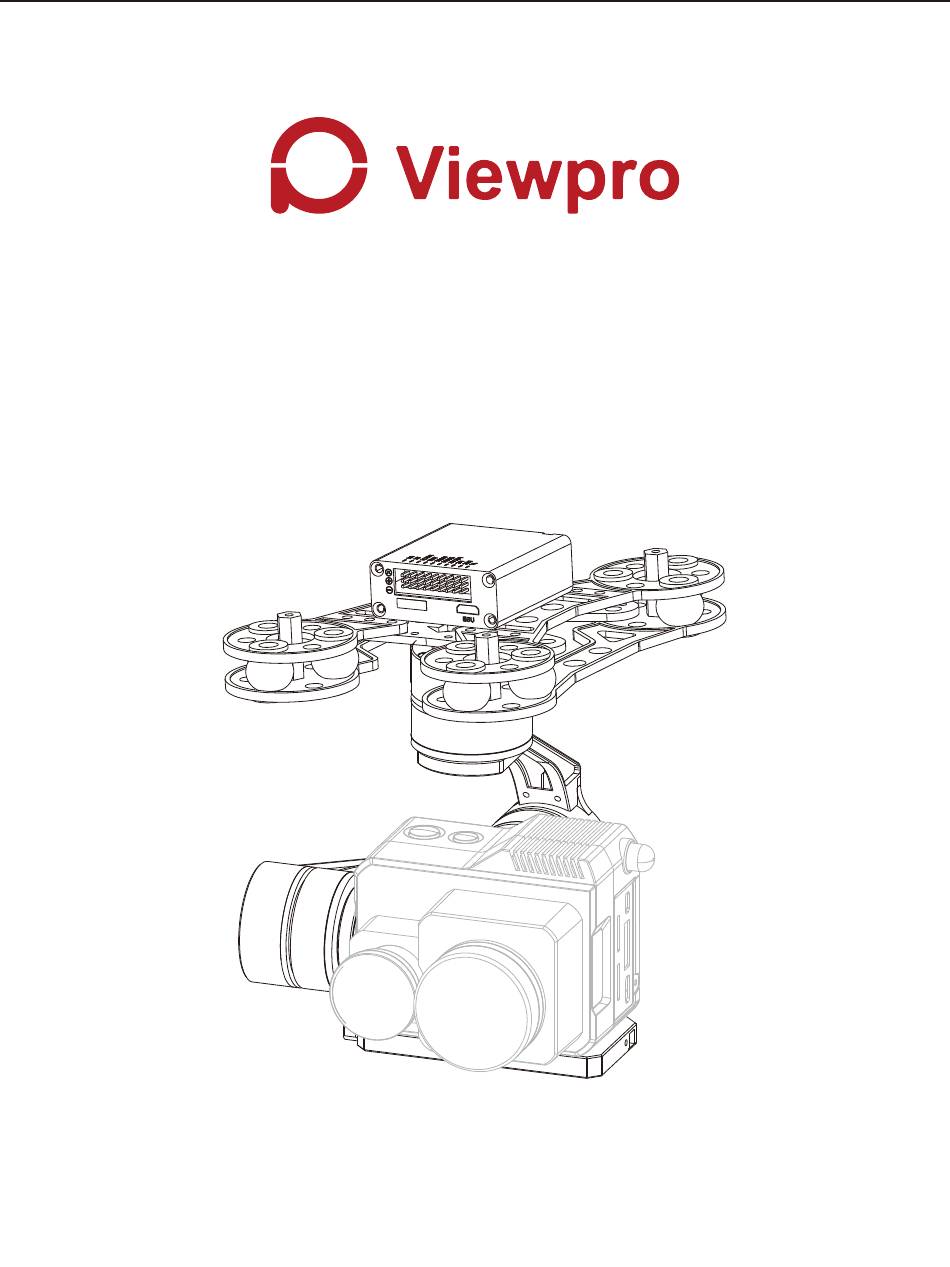

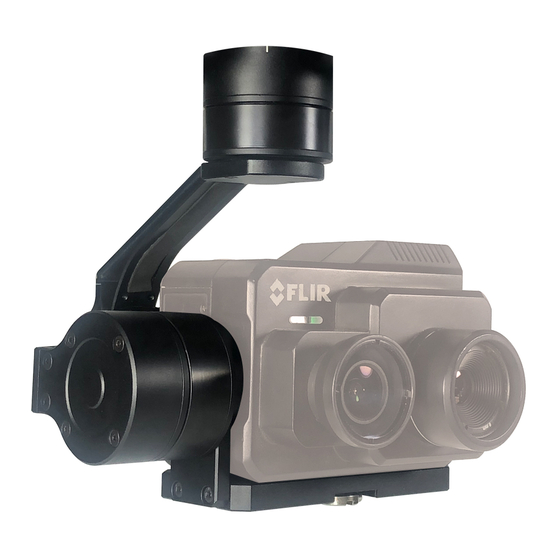

- Page 1 User manual Z -duo pro Z-Duo Pro Gimbal Images are for reference only, please subject to the actual product.
-
Page 2: Table Of Contents
Contents Z-DUO PRO Pinpoint-precision Gimbal 1.Gimbal introduction..................2 2.Gimbal description..................2 3.Packing list....................3 4.Gimbal dimension..................3 5.Installing.....................4 6.Mechanics@Electronic characteristics............4 7.Working characteristics................4 8.Gimbal’s signal wire box................5... -
Page 3: Gimbal Introduction
The speed of Z-DUO PRO gimbal is adjustable, LOW speed mode is used for large zoom range, the control will be more accurate; Fast speed mode is used for small zooming range, which makes the gimbal control sensitive and quick. -
Page 4: Packing List
Gimal Dimenstion Gimbal*1 Screw pack*1 M3*5mm button head Hexagon screw*4 Copper cylinders*4 Damping balls*12 Installing Uint: mm 113.3 124.3... -
Page 5: Installing
Installing Mechanics@Electronic Characteristics 3S~ 4S 330mA@12V Input voltage Idle current Working Dynamic current 450mA@12V -10°℃~+50°℃ environment temp 400g Size L105.3 *W 113.3*H133.3mm Weight Working Characteristics Pitch angle range of action: ±90° Roll angle range of action: ±85° Yaw/Pan: Yaw angle range of action : ±150° Vibration angle: Pitch/Roll: ±0.02°, Yaw：±0.03°... -
Page 6: Gimbal's Signal Wire Box
Connection of Control Box and Wiring Instruction Uint:mm 1 2 3 S.bus/Rx Roll/Tx Pitch Mode Zoom Focus Pic/Rec Multi PWM 1——Zoom PWM2——Focus PWM3——Pic/Rec PWM in 5V output USER BOARD TTL 9600/8/1/N... - Page 7 S.bus/Rx: connect to Rx2 for track function. Roll/ Tx: connect to Tx2 for track function. Pitch: PWM in, pitch control 1. Pitch up 2. Pitch stop W e h ave p ro t o co l f o r c o n t r o l t h e g i m b a l an d cam er a, p l ease co n t act o u r t ech n i cal su p p o r t...
- Page 8 Mode: Change the speed / home position Position 1: Lowest speed for pitch and yaw. Position 2: Middle speed for pitch and yaw. Position 3: Highest speed for pitch and yaw. The speed is continuously quickly from 1 to 3. One click: Home position.
