Viewpro
U30T

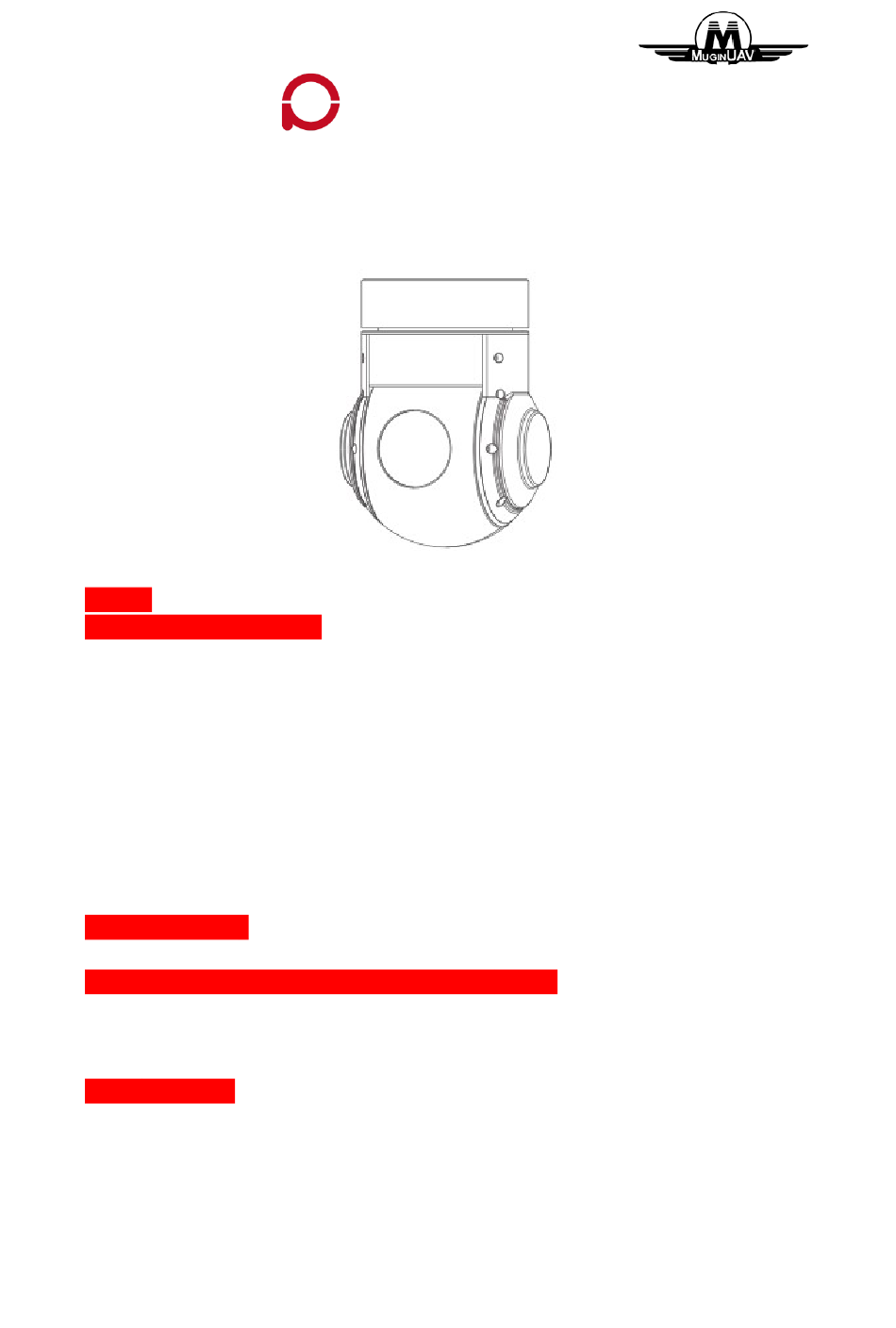

U30T 30x Optical Zoom Object Tracking Camera Gimbal
User manual
Contents
U30T Pinpoint-precision Gimbal
1. Gimbal introduction ................................................................................................................2
2. Object tracking function ..........................................................................................................2
3. Gimbal description ..................................................................................................................3
4. Packing list ...............................................................................................................................4
5. Gimbal dimension ...................................................................................................................4
6. Installing ..................................................................................................................................5
7. Mechanics@Electronic characteristics ....................................................................................5
8. Working characteristics ...........................................................................................................5
9. Gimbal's signal wire box ..........................................................................................................6
10. Gimbal's connection of control box and wiring instructions..................................................7
30x Starlight Camera
1.SONY EV7520 30x starlight camera introduction.......................................................................11
GPS Information Display and Serial Port Control Wiring Diagram
1. GPS and connection of control box ........................................................................................13
2. GPS baud rate .........................................................................................................................13
3. GPS introduction .....................................................................................................................13
Gimbal Introduction
U30T is a pinpoint-precision professional 3-axis gimbal which features high stability, small size,
light weight and low power consumption. The 3-axis gimbal based on FOC motor control
technology, adopts pinpoint-precision encoder in each motor.
The speed of U30T gimbal is adjustable, LOW speed mode is used for large zoom range, the
control will be more accurate; Fast speed mode is used for small zooming range, which makes the
gimbal control sensitive and quick. Also the one-key to center function will allow the gimbal
Mugin UAV
www.MuginUAV.com
sales@MuginUAV.com
Advertisement
Table of Contents
Related Manuals for Viewpro U30T
Summary of Contents for Viewpro U30T
-
Page 1: Table Of Contents
The speed of U30T gimbal is adjustable, LOW speed mode is used for large zoom range, the control will be more accurate; Fast speed mode is used for small zooming range, which makes the gimbal control sensitive and quick. -
Page 2: Object Tracking Function
U30T supports PWM, S.BUS and serial command control, suitable for close range remote control or remote data command control. Object Tracking Function 1. Function description Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. -
Page 3: Installing
Installing Mechanics@Electronic Characteristics Input voltage Idle current 330mA@12V Dynamic current 450mA@12V Working environment temp. -20 ℃ ~ +80 ℃ Weight 675g Size L115.8 *W 103.5*H147.3mm Working Characteristics Pitch/Tilt:Pitch angle range of action : ± 90 ° Roll:Roll angle range of action : ± 85 ° Yaw/Pan:Yaw angle range of action : ±... - Page 4 Connection of Control Box and Wiring Instruction HDMI: micro HDMI OUTPUT 1080P 60fps default SD card: max 128G, class10 FAT 32 or exFAT format S.bus/Rx: Connect to Rx2 for track function. Roll/ Tx: Connect to Tx2 for track function. Pitch: PWM in, pitch control 1 Pitch up 2 Pitch stop 3 Pitch down...
- Page 5 2 Yaw stop 3 Yaw left Mode: Change the speed / home position Position 1: Lowest speed for pitch and yaw. Position 2: Middle speed for pitch and yaw. Position 3: Highest speed for pitch and yaw. The speed is continuously quickly from 1 to 3. One click: Home position.
- Page 6 2 Stop focus 3 Focus near Pic /Rec picture / Start record, stop record Switch 2 to 1: Start record / stop record.start record, the OSD display rec hh:mm:ss ; 2 Stop record, the OSD display STBY. 3 Switch 2 to 3: take a picture. OSD display’REC IMG’ a second. Multi: Tracking control Position 1: exit the tracking Switch 1 to 2: Display the cross cursor.
- Page 7 Digital zoom 12x (360x with optical zoom) Imager Sensor SONY 1/2.8-type Exmor R CMOS Image sensor(Number of effective pixels) Approx.2.13 Megapixels 1080p/59.94,1080p/50,1080p/60, 1080p/30,1080p/29.97,1080p/25, 1080i/59.94,1080i/50,1080i/60, Signal system 1080i/30,720p/59.94,720p/50, 720p/60, 720p/30, 720p/29.97, 7 2 0 p / 2 5 , N T S C * 1 , P A L * 1 Minimum High sensitivity mode Colour: 0.01 lx (F1.6,AGC on,1/30s)
- Page 8 To use the serial port function, please use the jumper cap to connect RX1 and RX2, TX1 and TX2. External serial port TX connect with TX3. External serial port RX connect with RX3. External serial port GND connect with GND of wiring box. Note: The signals in the black square are all TTL serial ports.
