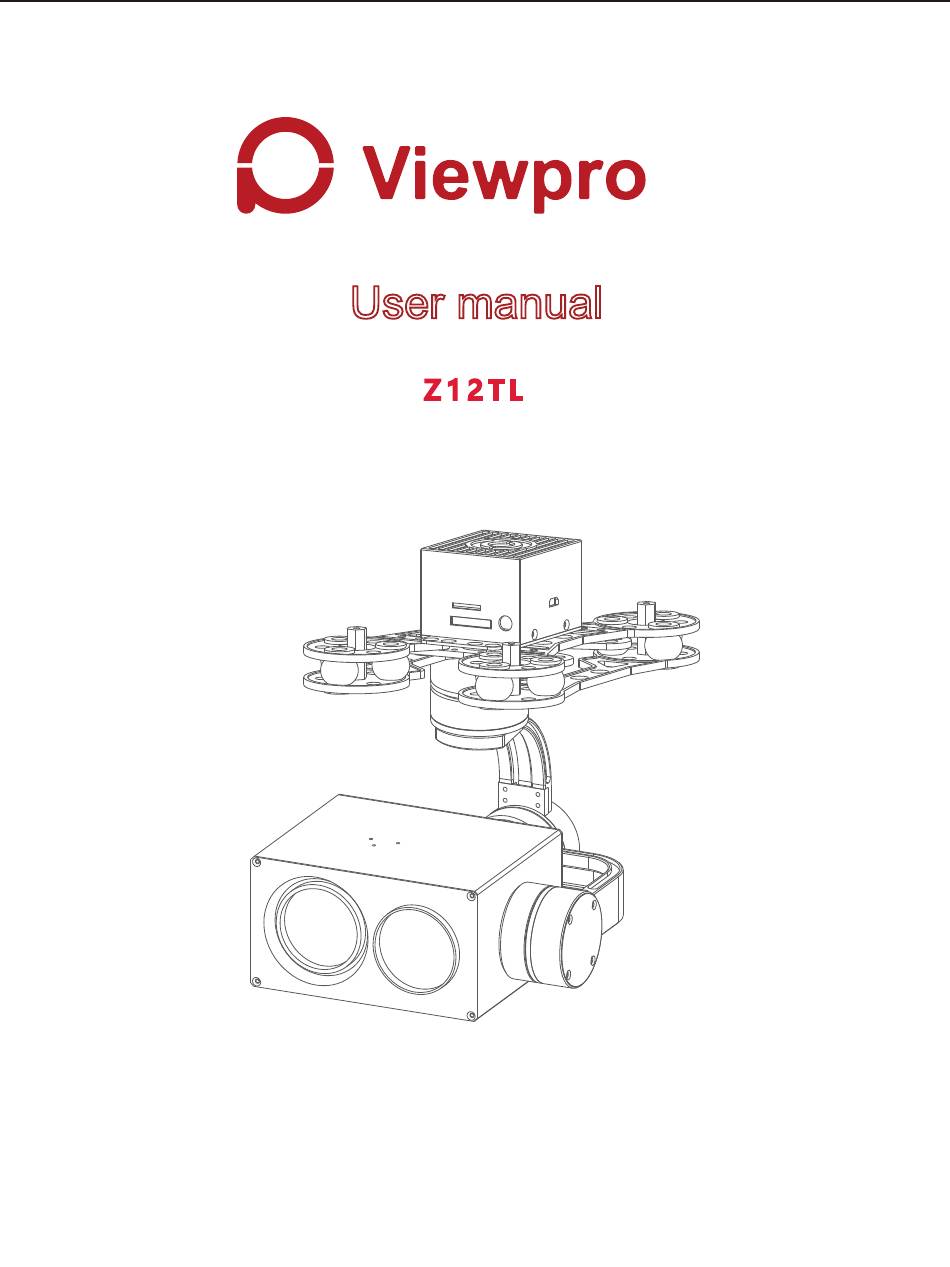

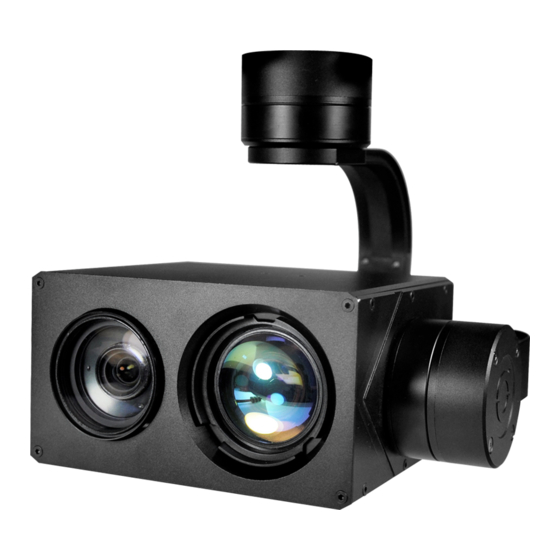

- Page 1 User manual Z 1 2 T L 12x Zoom Laser Night Vision Object Tracking Camera Gimbal Images are for reference only, please subject to the actual product.
-
Page 2: Table Of Contents
Contents Z12TL Pinpoint-precision Gimbal Gimbal introduction … ………………………… …………… ……………………… Object tracking function … … ………………………………………………………2 3. Gimbal description … … ………………………………………………………………3 4. Packing list …… ………………………………………………………………………4 … 5. Gimbal dimension … …………………………………………………………………4 6. Installing ………………………………………………………………………………5 … 7. Mechanics@Electronic characteristics …... -
Page 3: Gimbal Introduction
The speed of Z12TL gimbal is adjustable, LOW speed mode is used for large zoom range, the control will be more accurate; Fast speed mode is used for small zooming range, which makes the gimbal control sensitive and quick. -
Page 4: Gimbal Description
Gimbal Description [1] Gimbal fixed copper cylinder [6] Roll axis motor [2] Damping balls [7] Pitch axis motor [3] Upper damping board [8] Light supplement [4] Lower damping board [9] HD zoom network camera [5] YAW axis motorr Please make sure that the motor is not stopped by any object during the rotation, if the gimbal is blocked during rotation, please remove the obstruction immediately. -
Page 5: Packing List
Packing list Gimbal*1 Screw pack*1 Screw pack*1 (M3*5mm button head hexagon screw*12) Copper cylindersr*4 Damping balls*12 Gimbal Dimension Unit ：mm... -
Page 6: Installing
Installing Mechanics@Electronic Characteristics 3S~ 4S Input voltage Idle current 800mA@12V Working 450mA@12V Dynamic current -20℃ ~ +80℃ environment temp 1265g Size Weight L163*W 164*H158mm Working Characteristics Pitch/Tilt: Pitch angle range of action : ±90 Roll: Roll angle range of action : ±85° Yaw/Pan: Yaw angle range of action : ±150°... -
Page 7: Gimbal's Signal Wire Box
Gimbal’s Signal Wire Box Size:49*45.4*35.7 Unit : mm... -
Page 8: Connection Of Contral Box And Wiring Instructions
Connection of Control Box and Wiring Instruction HDMI: micro HDMI OUTPUT 1080P 60fps default SD card: max 128G, class10 FAT32 or exFAT format PWM in 5V output USER BOARD TTL 115200/8/1/N... - Page 9 S.bus/Rx: connect to Rx2 for track function. Roll/ Tx: connect to Tx2 for track function. Pitch: PWM in, pitch control 1. Pitch up 2. Pitch stop W e h ave p ro t o co l f o r c o n t r o l t h e g i m b a l an d cam er a, p l ease co n t act o u r t ech n i cal su p p o r t...
- Page 10 Mode: Change the speed / home position Position 1: Lowest speed for pitch and yaw. Position 2: Middle speed for pitch and yaw. Position 3: Highest speed for pitch and yaw. The speed is continuously quickly from 1 to 3. One click: Home position.
- Page 11 Pic /Rec picture / Start record, stop record Switch 2 to 1: Start record / stop record. start record, the OSD display rec hh:mm:ss ; stop record, the OSD display STBY. Switch 2 to 3: Take a picture. OSD display’ REC IMG’ a second. Multi: Tracking control / camera ICR on, laser on/ camera ICR off, laser off 1.
-
Page 12: Camera Characteristics
Camera Characteristics • 1080p (1920 x 1080) HD image quality • IMX185-1/1.9" high-performance CMOS sensor, 2MP pixel, high picture quality and high sensitivity • Powerful Digital zoom -12x optical zoom, 12x digital zoom, excellent autofocus Performance: fixed aperture is F1.5~1.9 with a focal length range of 7.0-84mm •... -
Page 13: Light Supplement Characteristics
Light Supplement Characteristics Effective range 300 meters Light wave length 850 ± 10nm (940nm, 980nm) Power zoom synchronously, Illumination angle 70°~2.0° adjustable 2s (wide end - tele end) Zoom time Power consumption 2 ± 0.2W of laser chipset Tele end 2.0°: effective range 300 meters, Illumination range spot diameter <...
