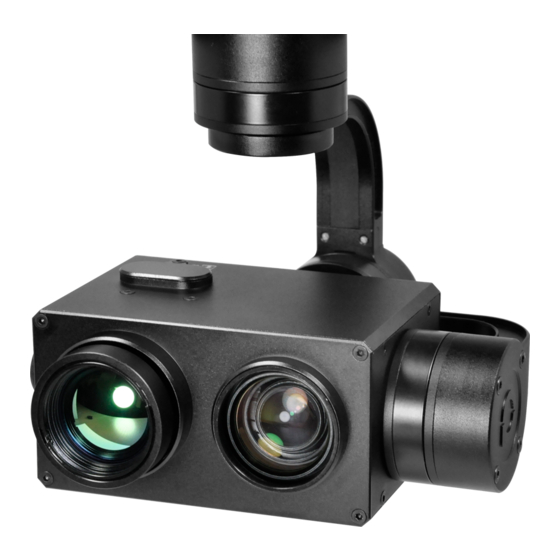

- Page 1 User manual MINI Z10TIR 10x Zoom EO + IR Dual Sensor Object Tracking Camera Gimbal Images are for reference only, please subject to the actual product.
-
Page 2: Table Of Contents
Contents Mini Z10TIR Pinpoint-precision Gimbal Gimbal introduction … ………………………… …………… ……………………… Object tracking function … … ………………………………………………………2 3. Gimbal description … … ………………………………………………………………3 4. Packing list …… ………………………………………………………………………4 … 5. Gimbal dimension … …………………………………………………………………4 6. Installing ………………………………………………………………………………5 … 7. Mechanics@Electronic characteristics …... -
Page 3: Gimbal Introduction
Also the one-key to center function will allow the gimbal return to initial position automatically and rapidly. MINI Z10TIR supports PWM, S.BUS and serial command control, suitable for close range remote control or remote data command control. Object Tracking Function 1. -
Page 4: Gimbal Description
Gimbal Description [1] Upper damping board [5] Pitch axis motor Lower damping board 10x HD zoom camera YAW axis motor 19mm 640 thermal infrared camera Roll axis motor Please make sure that the motor is not stopped by any object during the rotation, if the gimbal is blocked during rotation, please remove the obstruction immediately. -
Page 5: Packing List
Packing list Gimbal*1 Screw pack*1 Screw pack*1 (M3*5mm button head hexagon screw*4) Copper cylindersr*4 Damping balls*4 Gimbal Dimension Unit ：mm... -
Page 6: Installing
Installing Mechanics@Electronic Characteristics 3S~ 4S Input voltage Idle current 450mA@12V Working 500m A@12V Dynamic current -10℃ ~ +60℃ environment temp 490g Temp Weight -30℃~+80℃ Size L118 *W 109*H120mm Working Characteristics Pitch/Tilt: Pitch angle range of action : ±90 Roll: Roll angle range of action : ±85° Yaw/Pan: Yaw angle range of action : ±170°... - Page 7 Connection of Control Box and Wiring Instruction HDMI: micro HDMI OUTPUT 1080P 60fps default SD card: max 128G, class10 FAT32 or exFAT format PWM in 5V output USER BOARD TTL 9600/8/1/N...
- Page 8 S.bus/Rx: connect to Rx2 for track function. Roll/ Tx: connect to Tx2 for track function. Pitch: PWM in, pitch control 1. Pitch up 2. Pitch stop W e h ave p ro t o co l f o r c o n t r o l t h e g i m b a l an d cam er a, p l ease co n t act o u r t ech n i cal s u p p o r t...
- Page 9 Mode: Change the speed / home position Position 1: Lowest speed for pitch and yaw. Position 2: Middle speed for pitch and yaw. Position 3: Highest speed for pitch and yaw. The speed is continuously quickly from 1 to 3. One click: Home position.
- Page 10 Pic /Rec picture / Start record, stop record Switch 2 to 1: Start record / stop record. start record, the OSD display rec hh:mm:ss ; stop record, the OSD display STBY. Switch 2 to 3: Take a picture. OSD display’ REC IMG’ a second. Multi: Tracking control Position 1 exit the tracking Switch 1 to 2: Display the cross cursor.
-
Page 11: 19Mm Thermal Imager Parameter
640 25mm Thermal Imager Parameter H orizontal FOV 32° Vertical FOV 24° Diagonal FOV 39.4° Detective D istance M an:1.8x0.5m 559meters Recognize D istance M an 1.8x0.5m 140meters Verified D istance M an 1.8x0.5m 70meters Detective D istance Car 4.2x1.8m 1714meters Recognize D istance Car 4.2x1.8m 428 meters... -
Page 12: 10X Visible Light Camera Specifications
10x Visible Light Camera Specifications Imager Sensor 1/3 type progressive scanning CMOS Picture quality Full HD 1080 (1920*1080) Effective pixel 4.08MP Video output 1080p/60, 1080p/50, 1080p/30,1080p/25 Min illumination 0.5 lx (1/30s, F1.8, 50%) Illumination range 100 lx ~100,000 lx Gain Auto / Manual 1/1s to 1/10,000s Shutter speed...
