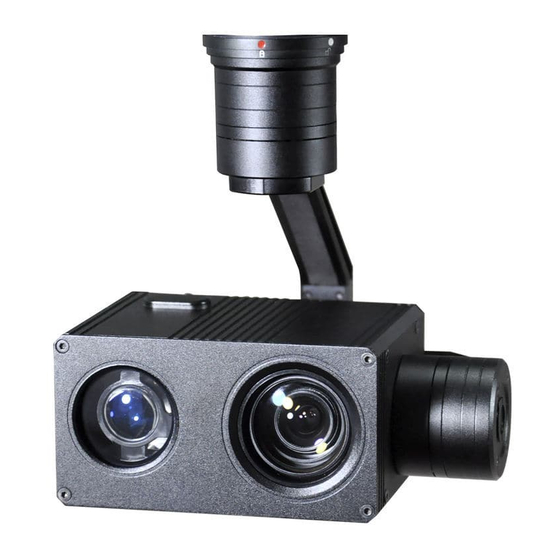

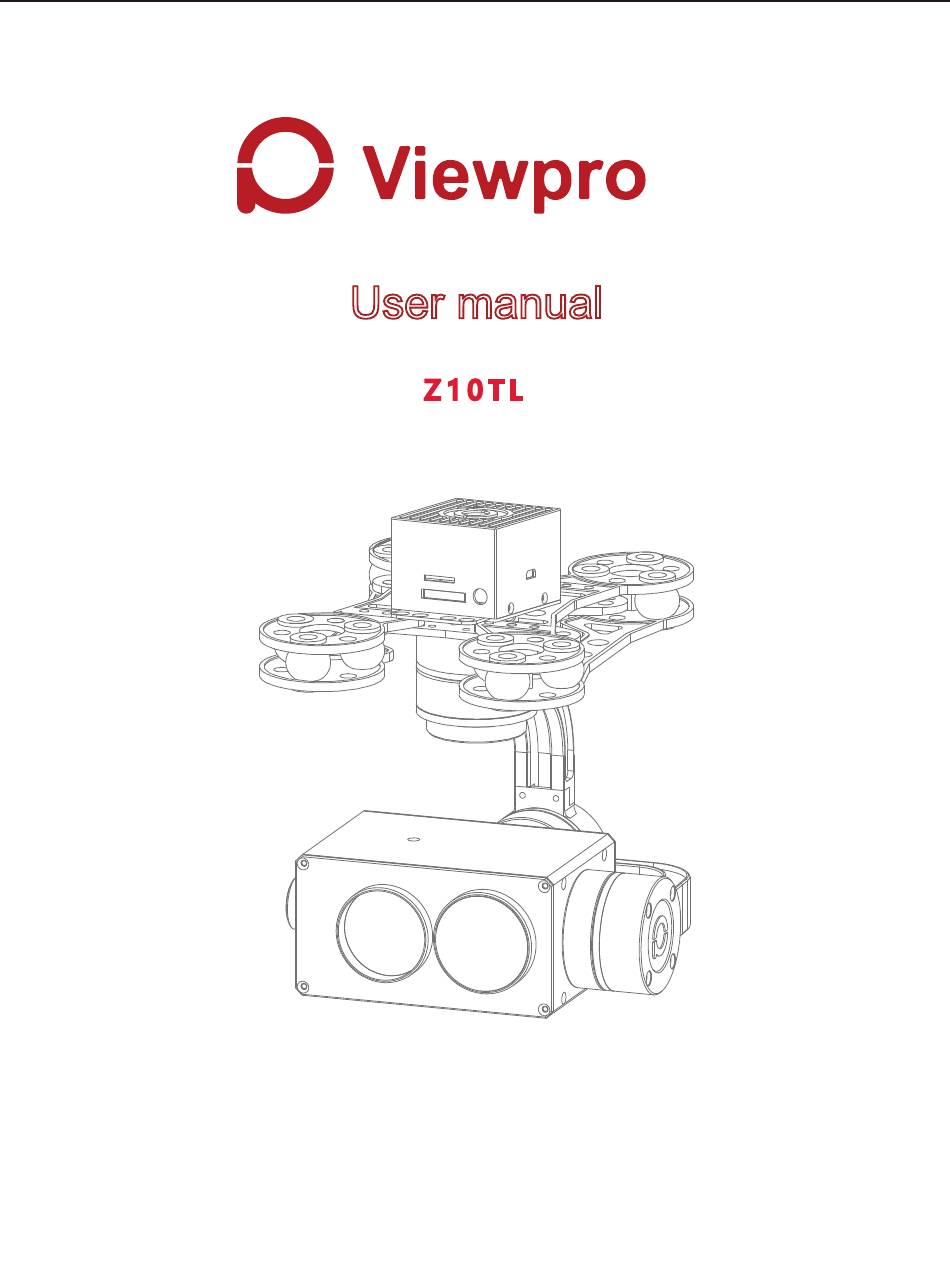

- Page 1 User manual Z 1 T L 10x Zoom Laser Night Vision Object Tracking Camera Gimbal Images are for reference only, please subject to the actual product.
-
Page 2: Table Of Contents
Contents Z10TL Pinpoint-precision Gimbal Gimbal introduction … ………………………… …………… ……………………… Object tracking function … … ………………………………………………………2 3. Gimbal description … … ………………………………………………………………3 4. Packing list …… ………………………………………………………………………4 … 5. Gimbal dimension … …………………………………………………………………4 6. Installing ………………………………………………………………………………5 … 7. Mechanics@Electronic characteristics …... -
Page 3: Gimbal Introduction
FOC motor control technology, adopts pinpoint-precision encoder in each motor. The speed of Z10TL gimbal is adjustable, LOW speed mode is used for large zoom range, the control will be more accurate; Fast speed mode is used for small zooming range, which makes the gimbal control sensitive and quick. -
Page 4: Gimbal Description
Gimbal Description [1]Damping ball [6] Pitch axis motor [2] Upper damping board [7] Light supplement [3] Lower damping board [8] HD zoom network camera [4] YAW axis motor [5] Roll axis motor Please make sure that the motor is not stopped by any object during the rotation, if the gimbal is blocked during rotation, please remove the obstruction immediately. -
Page 5: Packing List
Packing list Gimbal*1 Screw pack*1 Screw pack*1 (M3*5mm button head hexagon screw*4) Copper cylindersr*4 Damping balls*12 Gimbal Dimension Unit ：mm 131.4 119.8... -
Page 6: Installing
Installing Mechanics@Electronic Characteristics 3S~ 4S Input voltage Idle current 800mA@12V Working 1100mA@12V Dynamic current -20℃ ~ +80℃ environment temp 650g Size Weight L131.4 *W 119.8*H150.5mm Working Characteristics Pitch/Tilt: Pitch angle range of action : ±90 Roll: Roll angle range of action : ±85° Yaw/Pan: Yaw angle range of action : ±150°... -
Page 7: Gimbal's Signal Wire Box
Gimbal’s Signal Wire Box Size:49*45.4*35.7 Unit : mm... -
Page 8: Connection Of Contral Box And Wiring Instructions
Connection of Control Box and Wiring Instruction HDMI: micro HDMI OUTPUT 1080P 60fps default SD card: max 128G, class10 FAT32 or exFAT format PWM in 5V output USER BOARD TTL 115200/8/1/N... - Page 9 S.bus/Rx: connect to Rx2 for track function. Roll/ Tx: connect to Tx2 for track function. Pitch: PWM in, pitch control 1. Pitch up 2. Pitch stop W e h ave p ro t o co l f o r c o n t r o l t h e g i m b a l an d cam er a, p l ease co n t act o u r t ech n i cal su p p o r t...
- Page 10 Mode: Change the speed / home position Position 1: Lowest speed for pitch and yaw. Position 2: Middle speed for pitch and yaw. Position 3: Highest speed for pitch and yaw. The speed is continuously quickly from 1 to 3. One click: Home position.
- Page 11 Pic /Rec picture / Start record, stop record Switch 2 to 1: Start record / stop record. start record, the OSD display rec hh:mm:ss ; stop record, the OSD display STBY. Switch 2 to 3: Take a picture. OSD display’ REC IMG’ a second. Multi: Tracking control Position 1 exit the tracking Switch 1 to 2: Display the cross cursor.
- Page 12 Camera Introduction Z10TL has 2 mega effective pixels, supports 10x optical autofocus, possess HD 1080P video. There are two video streams in the camera, one is 1080P 30FPS, local H.264 compression, stored in the device SD card, another video output HDMI HD signal for the wireless transmission, according to the characteristics of UAV photography application, we design fast auto-focus speed, small size, and support PWM and S.BUS...
-
Page 13: Light Supplement Characteristics
Light Supplement Characteristics Effective range 300 meters Light wave length 850 ± 10nm (940nm, 980nm) Power zoom synchronously, Illumination angle 70°~2.0° adjustable 2s (wide end - tele end) Zoom time Power consumption 2 ± 0.2W of laser chipset Tele end 2.0°: effective range 300 meters, Illumination range spot diameter <...
