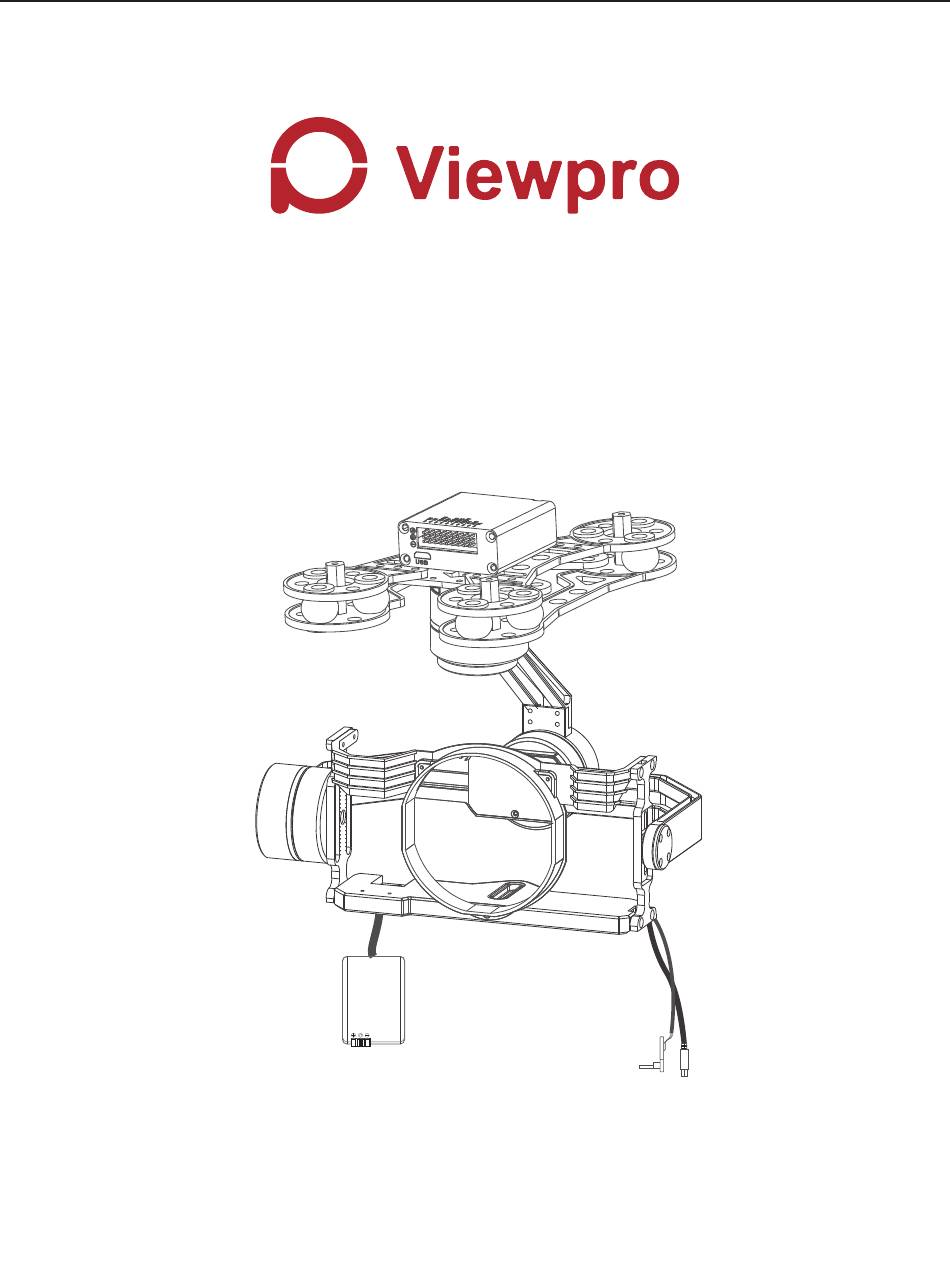

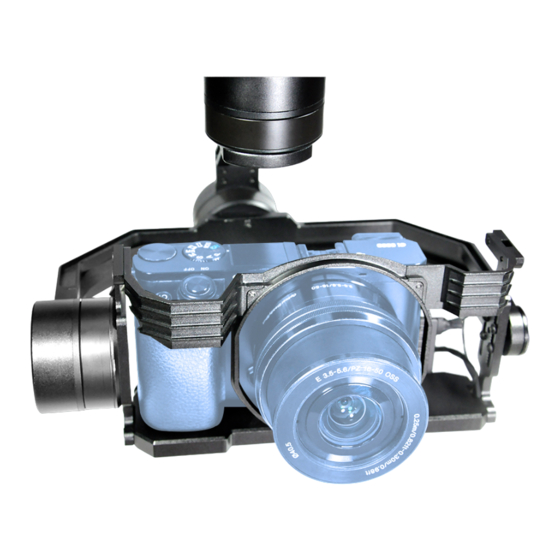

  • Page 1 User manual Z -6KA7 Z-6KA7 Optical Zoom Camera Gimbal U SB Images are for reference only, please subject to the actual product.
  • Page 2: Table Of Contents

    Contents Z-6KA7 Pinpoint-precision Gimbal 1.Gimbal introduction..................2 2.Object tracking function(Optional)..............2 3.Gimbal description..................3 4.Packing list....................4 5.Gimbal dimension..................4 6.Installing.....................5 7.Mechanics@Electronic characteristics............5 8.Working characteristics................5 9.Gimbal’s connection of control box and wiring instructions......6...
  • Page 3: Gimbal Introduction

    FOC motor control technology, adopts pinpoint-precision encoder in each motor. The speed of Z-6KA7 gimbal is adjustable, LOW speed mode is used for large zoom range, the control will be more accurate; Fast speed mode is used for small zooming range, which makes the gimbal control sensitive and quick.
  • Page 4: Gimbal Description

    Gimbal Description U S B [1] Gimbal fixed copper cylinder [6] Roll axis motor [2] Damping balls [7] Pitch axis motor [3] Upper damping board [8] Fake batteries [4] Lower damping board [9] Shutter control line [5] YAW axis motor [10] HDMI line Please make sure that the motor is not stopped by any object during the rotation, if the gimbal is blocked during rotation, please remove...
  • Page 5: Packing List

    Gimal Dimenstion Gimbal*1 Screw pack*1 M3*5mm button head hexagon screw*12 Copper cylinders*4 Damping balls*12 Installing Uint: mm 159.4...
  • Page 6: Installing

    Installing Mechanics@Electronic Characteristics 3S~ 4S 330mA@12V Input voltage Idle current Working Dynamic current 450mA@12V -10°℃~+50°℃ environment temp 695g Size L144*W103*H134mm Weight Working Characteristics Pitch angle range of action: ±90° Roll angle range of action: ±85° Yaw/Pan: Yaw angle range of action : ±150° Vibration angle: Pitch/Roll: ±0.02°, Yaw:±0.03°...
  • Page 7: Gimbal's Connection Of Control Box And Wiring Instructions

    Connection of Control Box and Wiring Instruction HDMI version: connect micro HDMI of camera to the upside of gimbal, the wire go through the US B arm of gimbal . Av version: we convert the HDMI signal to AV, you can connect the AV signal upside the gimbal. PWM in 5V output USER BOARD...
  • Page 8 S.bus/Rx: connect to Rx2 for track function. Roll/ Tx: connect to Tx2 for track function. Pitch: PWM in, pitch control 1. Pitch up 2. Pitch stop W e h ave p ro t o co l f o r c o n t r o l t h e g i m b a l an d cam er a, p l ease co n t act o u r t ech n i cal su p p o r t...
  • Page 9 Mode: Change the speed / home position Position 1: Lowest speed for pitch and yaw. Position 2: Middle speed for pitch and yaw. Position 3: Highest speed for pitch and yaw. The speed is continuously quickly from 1 to 3. One click: Home position.
  • Page 10 Pic /Rec picture / Start record, stop record Switch 2 to 1: take a picture Switch 2 to 3: Start record / stop record Multi: Backup PWM channel for customize AV: AV output when select AV version. - 9 -...
