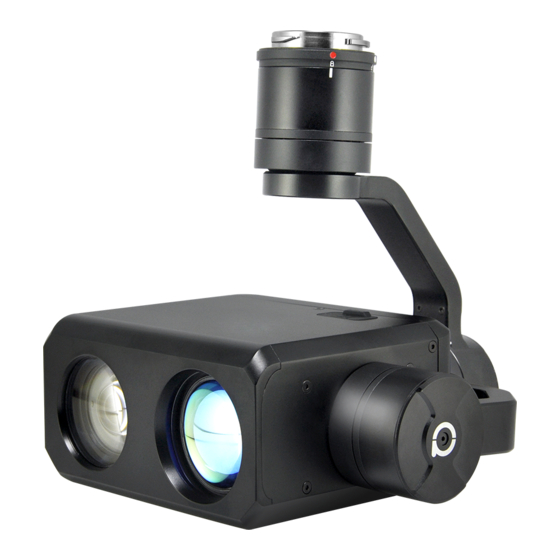

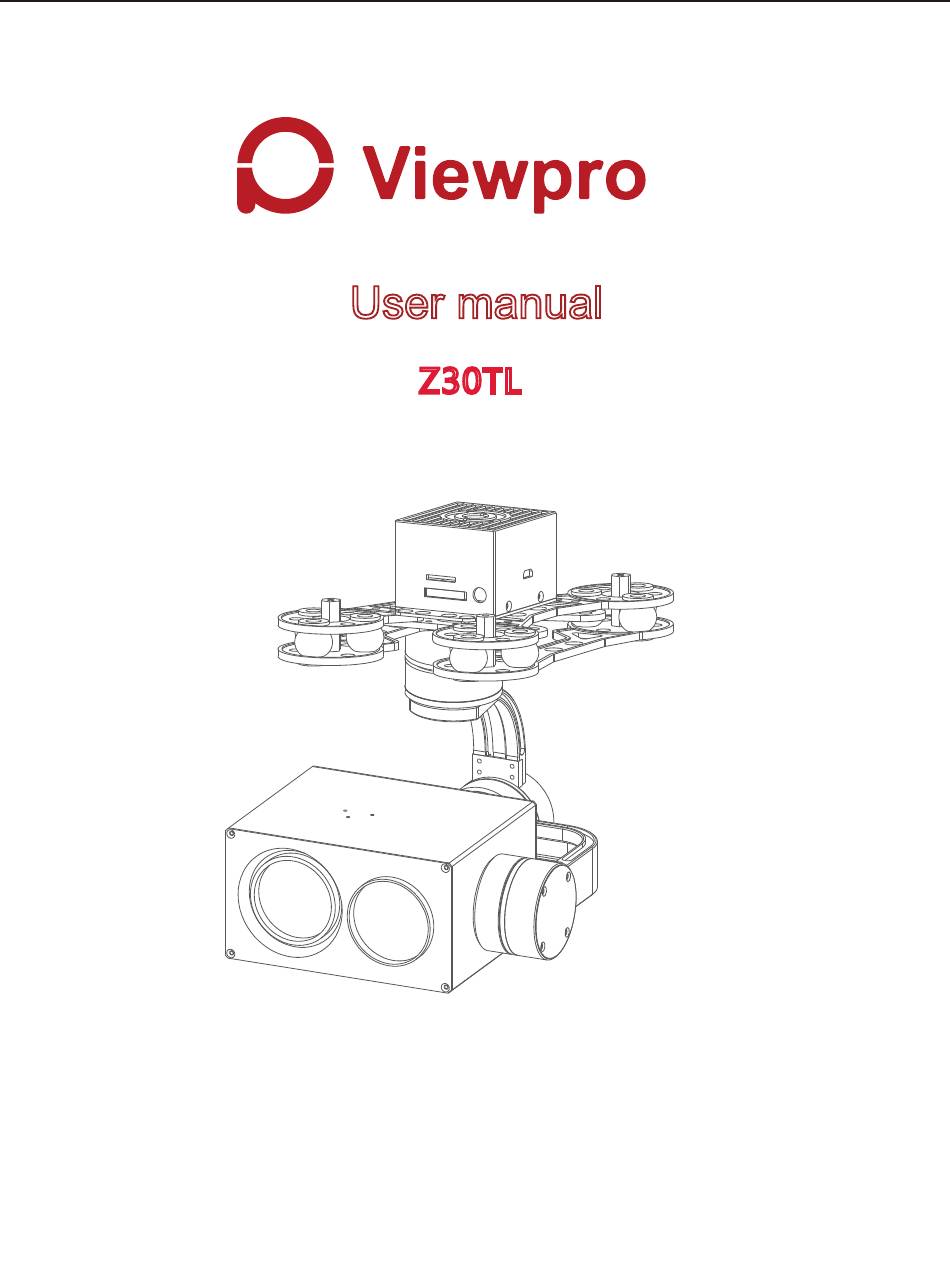

- Page 1 User manual Z30TL 30x Zoom Laser Night Vision Object Tracking Camera Gimbal Images are for reference only, please subject to the actual product.
-
Page 2: Table Of Contents
Contents Z30TL Pinpoint-precision Gimbal Gimbal introduction … ………………………… …………… ……………………… Object tracking function … … ………………………………………………………2 3. Gimbal description … … ………………………………………………………………3 4. Packing list …… ………………………………………………………………………4 … 5. Gimbal dimension … …………………………………………………………………4 6. Installing ………………………………………………………………………………5 … 7. Mechanics@Electronic characteristics …... -
Page 3: Gimbal Introduction
Z30TL can be applied in various fields like public security surveillance, fire fighting, electric power etc. The speed of Z30TL gimbal is adjustable, LOW speed mode is used for large zoom range, the control will be more accurate; Fast speed mode is used for small zooming range, which makes the gimbal control sensitive and quick. -
Page 4: Gimbal Description
Gimbal Description [1] Gimbal fixed copper cylinder [6] Roll axis motor [2] Damping balls [7] Pitch axis motor [3] Upper damping board [8] Light supplement [4] Lower damping board [9] HD zoom camera [5] YAW axis motorr Please make sure that the motor is not stopped by any object during the rotation, if the gimbal is blocked during rotation, please remove the obstruction immediately. -
Page 5: Packing List
Packing list Gimbal*1 Screw pack*1 Screw pack*1 (M3*5mm button head hexagon screw*12) Copper cylindersr*4 Damping balls*12 Gimbal Dimension Unit ：mm... -
Page 6: Installing
Installing Mechanics@Electronic Characteristics 3S~ 4S Input voltage Idle current 800mA@12V Working 1000mA@12V Dynamic current -20℃ ~ +80℃ environment temp 1265g Size Weight L163*W 164*H158mm Working Characteristics Pitch/Tilt: Pitch angle range of action : ±90 Roll: Roll angle range of action : ±85° Yaw/Pan: Yaw angle range of action : ±150°... -
Page 7: Gimbal's Signal Wire Box
Gimbal’s Signal Wire Box Size:49*45.4*35.7 Unit : mm... -
Page 8: Gimbal's Connection Of Control Box And Wiring Instructions
Connection of Control Box and Wiring Instruction HDMI: micro HDMI OUTPUT 1080P 60fps default SD card: max 128G, class10 FAT32 or exFAT format PWM in 5V output USER BOARD TTL 115200/8/1/N... - Page 9 S.bus/Rx: connect to Rx2 for track function. Roll/ Tx: connect to Tx2 for track function. Pitch: PWM in, pitch control 1. Pitch up 2. Pitch stop W e h ave p ro t o co l f o r c o n t r o l t h e g i m b a l an d cam er a, p l ease co n t act o u r t ech n i cal su p p o r t...
- Page 10 Mode: Change the speed / home position Position 1: Lowest speed for pitch and yaw. Position 2: Middle speed for pitch and yaw. Position 3: Highest speed for pitch and yaw. The speed is continuously quickly from 1 to 3. One click: Home position.
- Page 11 Pic /Rec picture / Start record, stop record Switch 2 to 1: Start record / stop record.start record, t he OSD display rec hh:mm:ss ; Stop record, the OSD display STBY. Switch 2 to 3: take a picture . OSD display’REC IMG’ a second. Multi: Tracking control / camera ICR on, laser on/ camera ICR off, laser off 1.
-
Page 12: Starlight Camera Introduction
30x Starlight Camera FCB-EV7520 Imager sensor 1/2.8-typeExmor R CMOS Lens Picture quality Full HD 1080p (1920 x 1080) Colour: 0.01 lx(F1.6, AGC on, Minimum 1/30 s) illumination* Digital zoom 12x (360x with optical zoom) Defog Image sensor 1/2.8-type Exmor R CMOS Image sensor(Number Approx.2.13 Megapixels of effective pixels) - Page 13 FCB-EV7520 Shutter speed 1/1 s to 1/10,000 s, 22 steps Sync system Internal Auto, Manual, Priority mode Exposure control (shutter priority & iris priority), Bright, EV compensation, Slow AE Backlight compensation Aperture control 16 steps Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor White balance Lamp (Fix/Auto/Outdoor Auto), One-push, Manual...
-
Page 14: Light Supplement Characteristics
Light Supplement Characteristics Effective range More than 500 meters Light wave length 850 ± 10nm (940nm, 980nm) Power zoom synchronously, Illumination angle 70°~2.0° adjustable 2s (wide end - tele end) Zoom time Power consumption 2 ± 0.2W of laser chipset Tele end 2.0°: effective range 300 meters, Illumination range spot diameter <...
