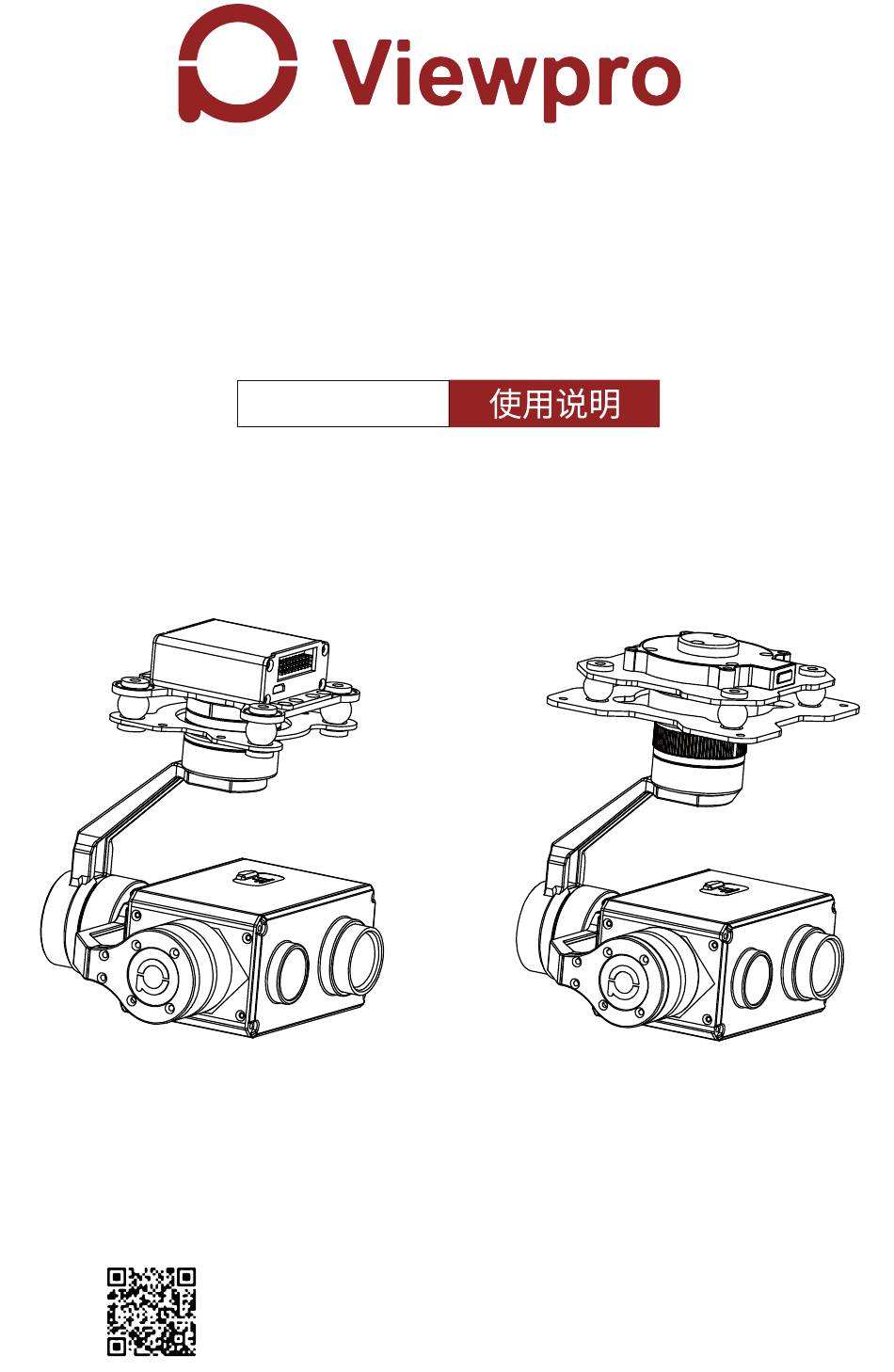

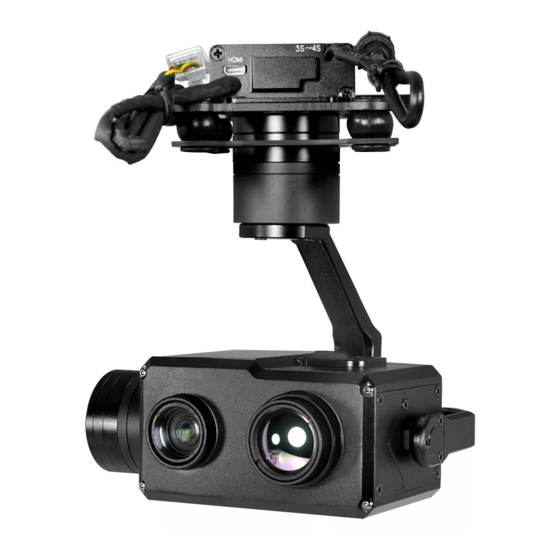

- Page 1 Mini Z10TIR 10x Optical Zoom EO + IR Dual-Sensor Object Tracking Gimbal Camera User Manual Standard Version Viewport Version 标准版 快拆版 For more details please scan the QR code or visit our website: www.viewprotech.com...
-
Page 2: Disclaimer And Warning
Viewpro product. Disassemble the gimbal camera by user is not permitted, as which may cause the camera does not work normally. Viewpro accepts no liability for damage, injury or any legal responsi- bility incurred directly or indirectly from the use of this project. The user shall observe safe and lawful practices including, but no limited to, those set forth in the manual. -
Page 3: Standard Version
1.2 In the Box A. Standard Version Gimbal Camera USB to TTL Cable x 1 pc x 1 pc Copper Cylinder M3 Screw x 4 pcs x 8 pcs Power Cable x 1 pc B. Viewport Version Gimbal Camera USB to TTL Cable x 1 pc x 1 pc Copper Cylinder... -
Page 4: Installation Instruction
TTL / S.BUS Control Cable x 1 pc TTL Connect Cable x 3 pcs Ethernet Cable x 1 pc 2. Installation Instruction 2.1 Overview [11] [13] [12] Control Box Back Side (Standard Version) [10] [11] [14] [13] Viewport [12] (Viewport Version) - Page 5 [8] TF card slot [1] Control box [2] Upper damping board [9] Roll axis motor [3] Lower damping board [10] Pitch axis motor [4] FHD zoom camera [11] 3-6S power interface [5] Infrared thermal camera [12] Micro HDMI interface [6] Damping ball [13] Ethernet interface [7] Yaw axis motor [14] Viewport unlock button...
- Page 6 2.2.2 Control Box Printing (Viewport Version) Front Side POWER Left Side ETHERNET UART & S.BUS Right Side...
- Page 7 2.3 Device Dimensions (Standard Version) Unit: mm 111.2 120.9...
- Page 8 2.3 Device Dimensions (Viewport Version) Unit: mm 41.8 Control Box 120.9 111.2...
- Page 9 2.4 Install Mounting Part (1) Find out the arrow on the gimbal which indicating the yaw heading of the payload (i.e. the lens direction when the camera power on), and synchronize with the direction specified by the UAV. (2) Fix one end of the copper cylinder on the screw hole of lower damping board, and use M3 screw to fasten it.
- Page 10 2.5 Viewport Release Instruction × 1. Make sure the two white stripes indicated in above picture are aligned with each other. (If the stripes are not aligned to each other, please pinch the connector part and turn it to left manually)
- Page 11 2. Align the white dot (unlock icon) to the red triangle (below unlock button), push the gimbal into the Viewport completely and then rotate the gimbal camera anticlockwise. 3. When you hear "click" sound (when red dot is aligned to the red triangle) means the gimbal camera and Viewport has been locked.
- Page 12 2.6 Install TF Card TF (Micro SD card): Install the TF card to the card slot (Re. 2.1 Overview). Support max 128GB. Request Class 10 (10m/s) transmis- sion speed or higher and FAT32 or exFAT format. Make sure device is power off when inserting the TF card, hot plugging is not supported.
-
Page 13: Signal Control
Above output mode is optional, HDMI and SDI output cannot coexist at the same time. Please subject to your actual product. When using user interface software Viewlink for network connection, the network of external device (computer) should be the IP address: 192.168.2.2 (choose the last byte among 2~254, can not be 119 same as the gimbal), subnet mask: 255.255.255.0, Default gateway: 192.168.2.1, and all firewalls of the... - Page 14 PWM IN 5V OUTPUT Receiver Remote Controller Connection Diagram (Standard Version) Receiver Remote Controller Connection Diagram (Viewport Version)
- Page 15 3.1.2 PWM Control Operation Instruction 1) Pitch (PWM Pitch channel in to control Pitch. Joystick, rotary knob or 3-gear switch on remote control are optional. 3-gear switch as example.) Position 1 Position 2 Position 3 Low Gear Middle Gear High Gear Pitch Up Pitch Stop Pitch Down...
- Page 16 Position 1 Position 2 Position 3 Low Gear Middle Gear High Gear Position 1: Low speed mode, control pitch / yaw with this mode at lowest speed Position 2: Middle speed mode, control pitch / yaw with this mode at middle speed Position 3: High speed mode, control pitch / yaw with this mode at highest speed...
- Page 17 4) Zoom (PWM Zoom channel in to control Zoom. Joystick, rotary knob or 3-gear switch on remote control are optional. 3-gear switch as example.) Position 1 Position 2 Position 3 Low Gear Middle Gear High Gear Zoom Out Stop Zoom Zoom In 5) Focus (PWM Focus channel is to control PIP / IR color palette switch.
- Page 18 Position 1 Position 2 Position 3 Low Gear Middle Gear High Gear Switch from Position 2 to 1: Take a picture OSD display 'REC IMG' a second. Switch from Position 2 to 3: Start record / repeat operation to stop record Start record, the OSD display rec hh:mm:ss.
- Page 19 3.2 Serial Port / TTL Control TTL communication requirements: TTL signal is 3.3V, baud rate: 115200, data bit 8, stop bit 1, no parity, HEX send and receive. Connection Diagram (PC - USB to TTL Cable- Gimbal Camera as example): Gimbal Camera Cable RX (White)
-
Page 20: S.bus Control
TTL control protocol file. ViewLink is a user interface developed by Viewpro for Viewpro gimbal cameras, you can download it from Viewpro website (www.viewpro- tech.com) or ask distributors for installation package. - Page 21 5V OUTPUT Remote Control Receiver Wiring Diagram Standard Version Receiver Remote Control Wiring Diagram Viewport Version...
- Page 22 (please contact with our technical support for the setting instruction.) 3.4 TCP control For Viewpro gimbal cameras with Ethernet output, the default IP address is: 192.168.2.119, control port: 2000. You can send the corresponding protocol to realize TCP control after connecting.
-
Page 23: Specification
4. Specification Hardware Parameter Working voltage Input voltage 3S ~ 6S Output voltage 5V (connect with PWM) Dynamic current 620~850mA @ 12V Idle current 620mA @ 12V Working environment -20℃ ~ +60℃ temp micro HDMI(FHD output 1080P 30fps) / IP Output (1080P/720p 25/30fps) / Skyport TF card (Up to 128G, class 10,... - Page 24 Pitch/Tilt: -45°～90°, Yaw/Pan: ±290° / Controllable Range ±360°*N (IP output version/Skyport) Vibration angle Pitch/Roll: ±0.02°, Yaw：±0.02° One-key to center √ EO Camera Spec Imager Sensor 1/3-type CMOS(Progressive Scan) Picture quality Full HD 1080 (1920*1080) Effective pixel 4.08MP Lens optical zoom 10x, F=3.3~33.0mm, F1.8~3.4 Digital zoom None...
- Page 25 Backlight compensation Aperture control 16 steps IR Thermal imager spec Lens 19mm Horizontal FOV 32.0° Vertical FOV 24.2° Diagonal FOV 39.4° Detective Distance 559 meters (Man: 1.8x0.5m) Recognize Distance 140 meters (Man: 1.8x0.5m) Verified Distance 70 meters (Man: 1.8x0.5m) Detective Distance 1714 meters (Car: 4.2x1.8m) Recognize Distance...
- Page 26 Pixel size 17μm Focusing method Athermal prime lens Emissivity correction 0.01~1 NETD ≤50mK (@25℃) MRTD ≤650mK (@characteristic frequency) Image enhancement Auto adjust image brightness and contrast ratio Color palette White, iron red, pseudo color Auto Non-uniform Yes (no shutter) correction Digital zoom 1x ~ 4x Sync correct time...
- Page 27 The mean square root values of pulse < 0.5 pixel noise in the object position Packing Information N.W. 545g Product meas. 109.2*117.4*143.9mm (including control box) 1pc gimbal camera device, 16pcs screws, 4pcs copper cylinders, 12pcs damping Accessories balls, 4pcs damping boards / Hight quality plastic box with foam cushion G.W.
- Page 28 3. How to set the storage format of Mini Z10TIR ? A: When the IP output resolution is set to 1280*720, the storage resolution is 1920 * 1080; Storage resolution is 1280 * 720 when the IP output resolution is set to 1920*1080; The video frame rate saved in the TF card is the same with the one set during IP output.
