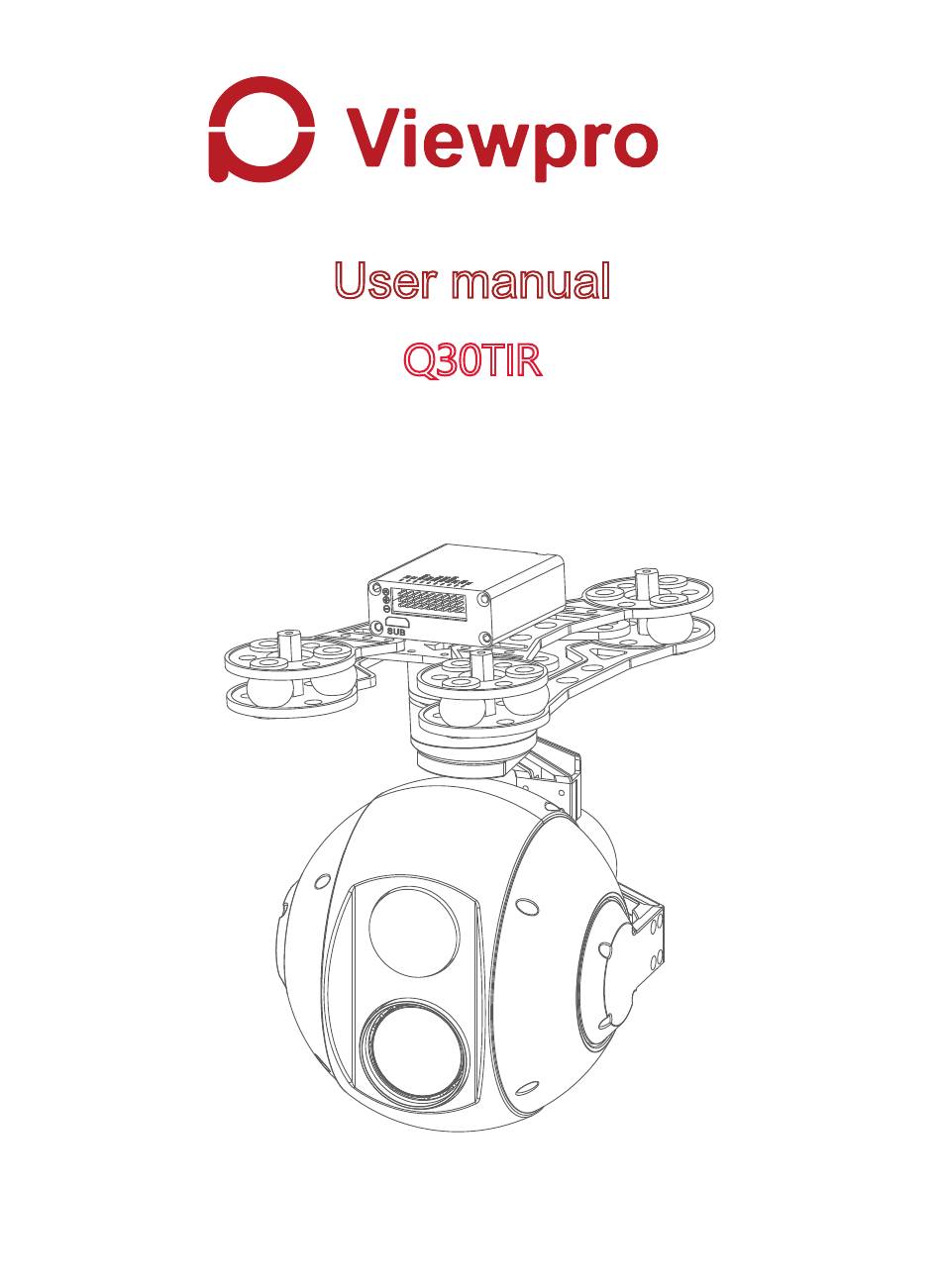

- Page 1 User manual Q30TIR 30x Zoom EO + IR Dual Sensor Object Tracking Camera Gimbal S U B Images are for reference only, please subject to the actual product.
-
Page 2: Table Of Contents
Contents Q30TIR Pinpoint-precision Gimbal Gimbal introduction … ………………………… …………… ……………………… Object tracking function … … ………………………………………………………2 3. Gimbal description … … ………………………………………………………………3 4. Packing list …… ………………………………………………………………………4 … 5. Gimbal dimension … …………………………………………………………………4 6. Installing ………………………………………………………………………………5 … 7. Mechanics@Electronic characteristics …... -
Page 3: Gimbal Introduction
3-axis gimbal based on FOC motor control technology, adopts pinpoint- precision encoder in each motor. The speed of Q30TIR gimbal is adjustable, LOW speed mode is used for large zoom range, the control will be more accurate; Fast speed mode is used for small zooming range, which makes the gimbal control sensitive and quick. -
Page 4: Gimbal Description

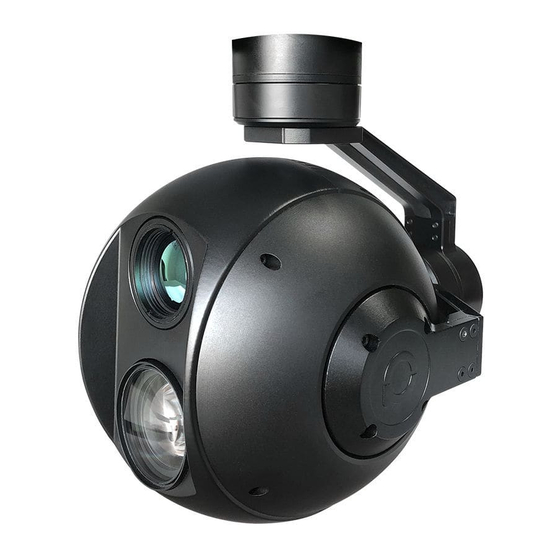

Gimbal Description S U B [1]Control box [6]YAW axis motor [2]Gimbal fixed copper cylinders [7]Roll axis motor [3]Damping ball [8]Thermal infrared camera [4]Upper damping board [9]Pitch axis motor [5]Lower damping board [10]HD zoom camera Please make sure that the motor is not stopped by any object during the rotation, if the gimbal is blocked during rotation, please remove the obstruction immediately. -
Page 5: Packing List
Packing list Gimbal*1 Screw pack*1 M3*5mm button head hexagon screw*16 Copper cylinders*4 Damping balls*12 Gimbal Dimension Unit ：mm... -
Page 6: Installing
Installing Mechanics@Electronic Characteristics 3S~4S Input voltage Idle current 400mA@12V Working Dynamic current 500mA@12V -20 ~+80 ℃ ℃ environment temp 1239g Weight Size L127.6 164.5mm *H173.5mm Working Characteristics Pitch/Tilt: Pitch angle range of action : ±90 Roll: Roll angle range of action : ±85° Yaw/Pan: Yaw angle range of action : ±170°... - Page 7 Connection of Control Box and Wiring Instruction H DM I : m i cro H DM I O UTPUT 1 080P 60f p s d ef au l t SU B SD c ard : m ax 1 28G ,cl ass10 F AT32 o r e xFAT f o r m at PWM in 5V output...
- Page 8 S.bus/Rx:connect to Rx2 for track function. Roll/ Tx:connect to Tx2 for track function. Pitch: PWM in, pitch control 1. Pitch up 2. Pitch stop W e h ave p ro t o co l f o r c o n t r o l t h e g i m b a l an d cam er a, p l ease co n t act o u r t ech n i cal s u p p o r t...
- Page 9 Mode: Change the speed / home position Position 1: Lowest speed for pitch and yaw. Position 2: Middle speed for pitch and yaw. Position 3: Highest speed for pitch and yaw. The speed is continuously quickly from 1 to 3. One click: Home position.
- Page 10 Pic /Rec picture / Start record, stop record Switch 2 to 1: Start record / stop record. start record, the OSD display rec hh:mm:ss ; stop record, the OSD display STBY. Switch 2 to 3: Take a picture. OSD display’ REC IMG’ a second. From 2 to 3: Camera ICR on, laser on ( ICR on = Camera night mode) use ‘...
-
Page 11: Sony Ev7520 30X Starlight Camera
SONY EV7520 30x Starlight Camera FCB-EV7520 Imager sensor 1/2.8-typeExmor R CMOS Lens Picture quality Full HD 1080p (1920 x 1080) Colour: 0.01 lx(F1.6, AGC on, Minimum 1/30 s) illumination* Digital zoom 12x (360x with optical zoom) ● Defog Image sensor 1/2.8-type Exmor R CMOS Image sensor(Number Approx.2.13 Megapixels... - Page 12 FCB-EV7520 Shutter speed 1/1 s to 1/10,000 s, 22 steps Sync system Internal Auto, Manual, Priority mode Exposure control (shutter priority & iris priority), Bright, EV compensation, Slow AE Backlight compensation Aperture control 16 steps Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor White balance Lamp (Fix/Auto/Outdoor Auto), One-push, Manual...
- Page 13 640 25mm Thermal Imager Parameter H orizontal FOV 24.6° Vertical FOV 18.5° Diagonal FOV 30.4 Detective D istance M an:1.8x0.5m 735 meters Recognize D istance M an 1.8x0.5m 184 meters Verified D istance M an 1.8x0.5m 92 meters Detective D istance Car 4.2x1.8m 2255 meters Recognize D istance Car 4.2x1.8m 564 meters...
- Page 14 GPS Information Display and Serial Port Control Wiring Diagram 1 2 3 S.bus/Rx Roll/Tx Pitch Mode Zoom Focus Pic/Rec Multi To use the serial port function, please use the jumper cap to connect RX1 and RX2, TX1 and TX2. External serial port TX connect with TX3. External serial port RX connect with RX3.
