Summary of Contents for EOS ECON 09

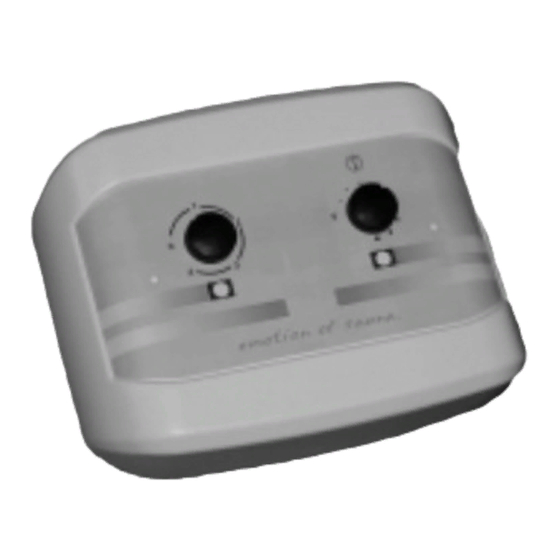

- Page 1 Installation and User's Guide ECON 09 IP x4 Druck Nr. 29343276en/ - 37.06...
- Page 2 The sauna control units are delivered Installation and connection of the sauna equipped for a voltage of 400 V 3 N AC with systems and other electrical equipment a maximum breaking capacity of 9 kW and may be undertaken only by a expert; this with a safety shutdown as standard.
- Page 3 For the mounting of the control unit, the mounting holes Ø3 are drilled in accordance with the dimensions given in Illust. 3, and one of the provided wood screws 4 x 20, see Illust. 3.1, is screwed into the wood through the upper middle hole, leaving a 3mm section of the screw projecting out from the wall.
-
Page 4: Electrical Installation
2. Electrical installation (see Illust. 5) The electrical installation may be undertaken only by an authorized electrician Supply line for cabin subject to the regulations of the local po- lighting wer utility company and the VDE. The 5-wire power supply lead is brought to Power supply the control unit and connected, as can be lead wire... - Page 5 2.1 Installation of the cabin lighting 20 cm All electrical installations in the sauna cabin must be able to withstand surrounding temperatures of at least 140° C. connecting cable must be led through the previously drilled hole and connecting in the control unit in accordance with the circuit diagram.
- Page 6 3.3 Safety shutdown Note Is there a problem reaching the required bathing temperature, or is the temperature The control unit is equipped with an overheat different from that indicated on the safety shutdown device. The sensor of the thermometer in the cabin? overheat safety shutdown with the sensor Please note that the temperature sensor is mount is, as previously explained, installed...
- Page 7 Close the control unit again before setting- up operation. In case the temperature limiter should cut off again immediately after taking into operation, the unit has to be checked by a specialist. Wiring diagram control unit Econ 09 black black black black black...
- Page 8 Direct warranty processing with our service department is in this case not possible. Equipment start-up date: Stamp and signature of the authorized electrician: Service address: EOS-Werke Günther GmbH Adolf-Weiß-Str. 43 35759 Driedorf-Germany tel +49 (0)2775 82 240 fax +49 (0)2775 82 455 servicecenter@eos-werke.de www.eos-werke.de...
