Summary of Contents for Skyrc Maestro T1000

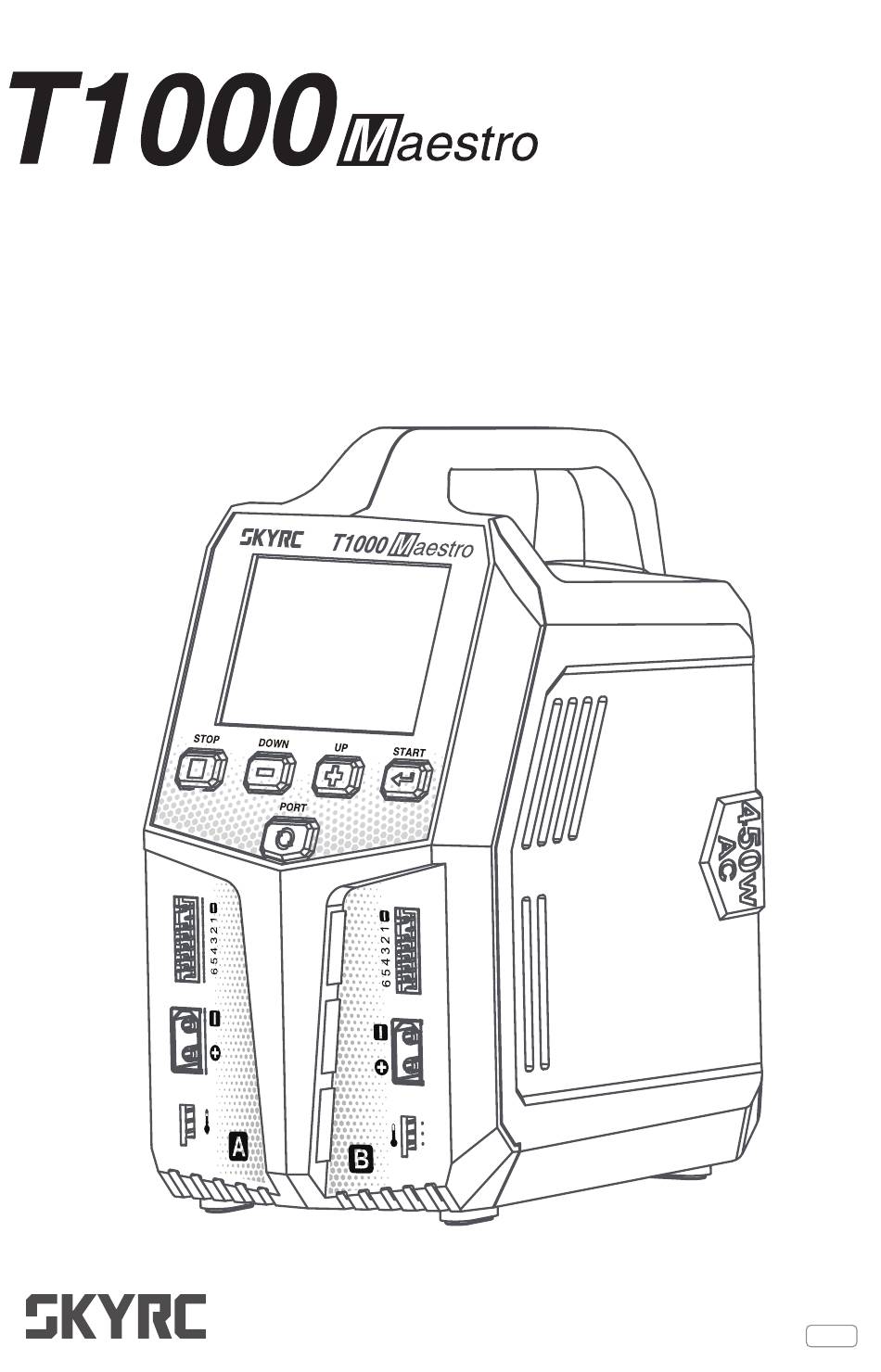

- Page 1 AC/DC Dual Balance Charger/Discharger Instruction Manual SK-100182 V1.1...
-
Page 2: Table Of Contents
SKYRC T1000 Maestro Instruction Manual Introduction Specifications Warning Standard Battery Parameters Operation Parallel Charge External Discharge Charger Master Battery Analyzer DC Power Optional Parts Charging Settings System Setting Errors and Warnings Package Firmware Upgrade Notice Conformity Declaration Warranty and Service... -
Page 3: Introduction
SKYRC T1000 Maestro Instruction Manual Introduction Greetings and thank you for your purchase of SkyRC T1000 Dual Balance Charger. As a new member of the T family, T1000 will take you on an exciting and delightful journey in the world of model aircraft and RC car. -
Page 4: Specifications
SKYRC T1000 Maestro Instruction Manual Specifications Item Option Specification Model T1000 100-240V (50/60Hz) Input voltage 10-30V Input current 35A MAX 450W MAX Charge power 1000W MAX Main port Discharge power Balance port 37W MAX External discharge 350W MAX LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb 0.1-20.0A... -
Page 5: Warning
SKYRC T1000 Maestro Instruction Manual Warning T1000 is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the charger by a person responsible for their safety. -
Page 6: Operation
SKYRC T1000 Maestro Instruction Manual Operation Be familiar with the key instructions and operations before starting the operation. Connect the AC or DC power source, and T1000 powers up and enters the main interface; From the main interface, press the Start button to enter the charging settings;... -
Page 7: External Discharge
SKYRC T1000 Maestro Instruction Manual External Discharge T1000 is capable of external discharge. A discharge current of 40.0A can be reached with BD350 discharger connected. Upon connecting the power supply, T1000 automatically powers up and enters the main interface; Connect BD350 discharger to T1000;... -
Page 8: Charger Master
SKYRC T1000 Maestro Instruction Manual Charger Master T1000 is capable of charging and discharging through the computer. Various parameters, including charge time and capacity, can be displayed visually, as well as charge current and voltage in a curve. In addition, battery performance can be analyzed through the Charger Master. -
Page 9: Dc Power
SKYRC T1000 Maestro Instruction Manual Specify the battery type, discharge current, cut-off voltage, and other parameters; Click New Test to start the testing after setting up; When the first test completes, click Append Test to start the second test. The third and further tests follow suit. -
Page 10: Optional Parts
SKYRC T1000 Maestro Instruction Manual Optional Parts XT60 XT60 XT60 BD350 Discharger PCH-150 Charging Board Parallel Charging Cable SK-600147-01 SK-600148-01 SK-600023-19 Charging Settings On the main interface, press the Start button to enter charging settings, in which you can switch A/B ports by pressing the Port button. -
Page 12: Errors And Warnings
SKYRC T1000 Maestro Instruction Manual Errors and Warnings In the event of a fault, the charger will display an error message and sound an alarm. Error Message Explanation Error: DC Input Low! DC input voltage is lower than preset! Error: DC Input High! -
Page 13: Firmware Upgrade Notice
Click to upgrade after detecting a new firmware; Wait for the progress bar to finish and reach 100%; The waiting takes about 5 minutes. Conformity Declaration SkyRC T1000 satisfies all relevant and mandatory CE directives and FCC Part 15 Subpart B. Test Standards Title Result... -
Page 14: Warranty And Service
This charger is designed and approved exclusively for use with the types of battery stated in this Instruction Manual. SkyRC accepts no liability of any kind if the charger is used for any purpose other than that stated. We are unable to ensure that you follow the instructions supplied with the charger, and we have no control over the methods you employ for using, operating, and maintaining the device. - Page 15 SKYRC T1000 Maestro Instruction Manual This content is subject to change. Latest version can be downloadedfrom www.skyrc.com lf you have any question about this document,please contact SkyRC by sending a message to info@skyrc.com All Rights Reserved. SKYRC T1000 Maestro...
- Page 16 SKYRC T1000 Maestro Instruction Manual Manufactured by SKYRC TECHNOLOGY CO., LTD. www.skyrc.com RoHS The manual is subject to change without notice; please refer to our website for the latest version! SKYRC T1000 Maestro 2022 SkyRC Trchnology Co., Ltd. All Rights Reserved [Version 1.1] 7504-1692-02...
