QUICK START GUIDE
AC/DC Quattro Balance Charger/Discharger

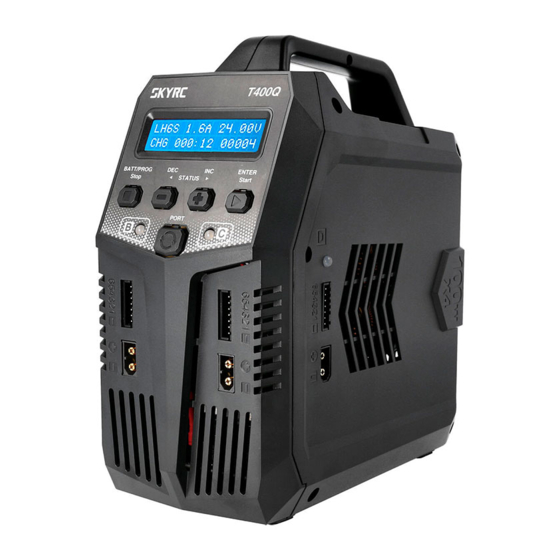

Thanks for purchasing SkyRC T400Q AC/DC Quattro Balance Charger/Discharger.
This charger comes with four independent circuits that can charge various chemistries
batteries (LiPo/LiFe/Lilon/LiHV/NiMH/NiCd/Pb). The charger delivers up to 100W
per port and can charge four batteries simultaneously at up to 12 amps each. It
comes ready to charge in the most compact design yet while taking up minimal
space in the pit area. And the handle design ensures the charger is convenient to
carry. Additionally, the charger also can charge AGM and Pb battery under a low
temperature in the AGM and Cold modes.
Warning and Safety Notes
These warnings and safety notes are particularly important. Please follow the
instructions for maximum safety; otherwise the charger and the battery can be
damaged or at worst it can cause a fire.
Never leave the charger unattended when it is connected to its power
!
supply. If any malfunction is found, TERMINATE THE PROCESS AT
ONCE and refer to the operation manual.
Keep the charger well away from dust, damp, rain, heat, direct sunshine
!
and vibration. Never drop it.
The allowable AC input voltage is 100~240V AC and DC input 11-18V.
!
This charger and the battery should be put on a heat-resistant,
!
noninflammable and nonconductive surface. Never place them on a car
seat, carpet or similar. Keep all the inflammable volatile materials away
from operating area.
Make sure you know the specifications of the battery to be charged or
!
discharged to ensure it meets the requirements of this charger. If the
program is set up incorrectly, the battery and charger may be damaged.
It can cause fire or explosion due to overcharging.
Scan for
T400Q instruction manual
or download through www.skyrc.com
LCD Display
Scroll Through the Main Menu
Stop Any Charge Processes
Alter Values
See the Status
of Individual Cells in
Balance Charge Mode
Switch Between Port
A, B, C and D.
Output Socket
Carrying Handle
DC Input
11-18V
Smart
Ventilation Fan
Resume or Start
Charge Processes
LED Indicator
Balance Port
AC Input
100-240V
Ventilation Slot
Advertisement
Table of Contents
Related Manuals for Skyrc T400Q
Summary of Contents for Skyrc T400Q
- Page 1 T400Q instruction manual or download through www.skyrc.com AC/DC Quattro Balance Charger/Discharger Thanks for purchasing SkyRC T400Q AC/DC Quattro Balance Charger/Discharger. This charger comes with four independent circuits that can charge various chemistries batteries (LiPo/LiFe/Lilon/LiHV/NiMH/NiCd/Pb). The charger delivers up to 100W LCD Display per port and can charge four batteries simultaneously at up to 12 amps each.
- Page 2 Power and Battery Connection 2) NiMH/NiCd or Pb Battery Connection 1. Connect to the power source There are two ways to power SkyRC T400Q: DC 11-18V and AC 100-240V. AC 100-240V Mains Power Supply: 12V DC Battery / DC Power Supply: Please scan and watch the tutorial video about how to charge LiPo battery in balance mode.
