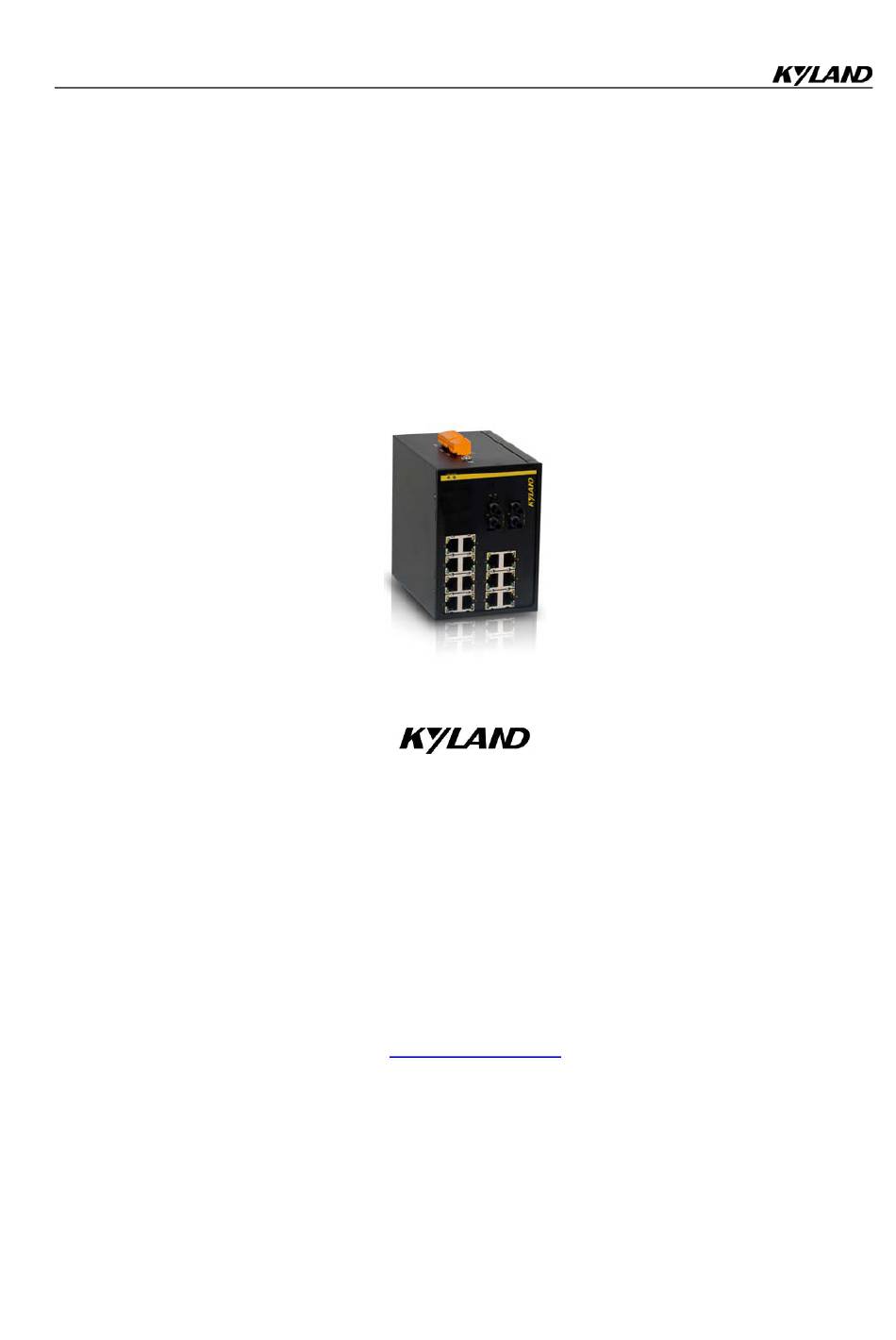

KYLAND Technology KIEN3016A Hardware Installation Manual

Industrial ethernet switch

Advertisement

Quick Links


KIEN3016A
Industrial Ethernet Switch
Hardware Installation Manual
Kyland Technology Co., LTD.
Publication Date: Oct. 2011
Version: V1.0
Customer Service Hotline: (+8610) 88796676
FAX: (+8610) 88796678
Website:
http://www.kyland.cn
E-mail: support@kyland.biz
No.: 1.12.02.1030-0
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KIEN3016A and is the answer not in the manual?

Questions and answers

Summary of Contents for KYLAND Technology KIEN3016A

  • Page 1   KIEN3016A Industrial Ethernet Switch Hardware Installation Manual Kyland Technology Co., LTD. Publication Date: Oct. 2011 Version: V1.0 Customer Service Hotline: (+8610) 88796676 FAX: (+8610) 88796678 Website: http://www.kyland.cn E-mail: support@kyland.biz No.: 1.12.02.1030-0...
  • Page 2 KIEN3016AIndustrial Ethernet Switch Hardware Installation Manual Disclaimer: Kyland Technology Co., Ltd. tries to keep the content in this manual as accurate and as up-to-date as possible.This document is not guaranteed to be error-free, and we reserve the right to amend it without notice to users.
  • Page 3   Notice for Safety Operation This product performs reliably as long as it is used according to guidelines. Artificial damage or destruction of the equipment should be avoided. Read this manual carefully and keep it for future reference; Do not place the equipment near water sources or damp areas; Do not place anything on power cable and put the cable in unreachable places;...
  • Page 4: Table Of Contents

        Contents  1.  Packing List  .............................. 5  2.  Product Overview ............................ 5  3.    Structure and Interface ........................... 5  3.1Front Panel........................5  3.2Top Panel ........................7  4.    Mounting  ................................ 7  4.1 Mounting ........................7  4.2 Mounting Steps ......................8  5.    Cable Connection .............................  1 1  5.1 10/100Base-T(X) ......................11  5.2 100Base-FX .........................
  • Page 5: Packing List

    2. Product Overview KIEN3016A is a series of green, low power consumption and compact DIN-Rail industrial Ethernet switch that can be applied extensively in wind power, distribution network automation,subway PIS, power SCADA, wastewater treatment, metallurgy, intelligent transportation, rail transit and many other industries.
  • Page 6 3:(15、16)-two 100Base-FX port LEDs 4:(15、16)-two 100Base-FX ports 5:(1-14)-fourteen 10/100Base-T(X) RJ45 ports 6:RJ45 port Speed LED 7:RJ45 port Link/ACT LED Figure 1 Front Panel 1 KIEN3016A-16T front panel is shown in Figure below 1: PWR1-Power 1 LED 2: PWR2-Power 2 LED 3:(1-16)-sixteen10/100/1000Base-T(X) RJ45 ports...
  • Page 7: Top Panel

      Figure 2 Front Panel 2 3.2Top Panel 1: Terminal block for power input 2: Screw hole for grounding Figure 3 Top Panel 4. Mounting 4.1 Mounting Dimension Drawing for DIN-Rail Mounting (Unit: mm)
  • Page 8: Mounting Steps

    4.2 Mounting Steps KIEN3016A DIN-Rail Mounting The specific steps are as follows: Step 1: Select the mounting position for KIEN3016A and ensure that there is adequate space. Step 2: Insert the top of the DIN-Rail into the spring-supported slot of the...
  • Page 9 DIN-Rail and switch, as shown in arrow 1. Step 2:Pull the KIEN3016A up in the direction of arrow 2; meanwhile remove the device from the DIN-Rail along the direction of arrow 3.
  • Page 10 KIEN3016APanel Mounting The specific steps are as follows: Step 1: Select the mounting position for KIEN3016A on the wall or in cabinet; ensure that there is adequate space for the switch. Step 2: Drill 4 holes on the selected position according to the panel mounting dimension drawings;...
  • Page 11: Cable Connection

      or cabinet. Figure 9 Panel Dismounting 5. Cable Connection 5.1 10/100Base-T(X) 10/100Base-T(X) Ethernet RJ45 port can be connected to terminal equipment and network devices with straight-through cables or crossover cables. RJ45 connectors must be attached at both ends of the cable. RJ45 port and pin number 8 7 6 5 4 3 2 1 Figure 10 RJ45 Port...
  • Page 12: 100Base-Fx

      4,5,7,8 Unused Unused Note: “+”“-”mean level polarity. 100M straight-through cable wiring Figure 11 100M Straight-through Cable Wiring 100M crossover cable wiring Figure 12 100M Crossover Cable Wiring 5.2 100Base-FX 100Base-FX Parameter Table Table 2 100Base-FX Parameter Table FX(FC/SC/ST) Property Multimode Single mode Single mode Single mode Single mode Type 1310...
  • Page 13: Power

      FX(FC/SC/ST) Property Transmission Distance (Km) 10~80 0~40 6~60 4~60 Applicable Distance (Km) Min. (dBm) Luminous power Max. (dBm) Receiving Sensitivity (dBm) Overload Luminous Power (dBm) 100M fiber port wiring (Take SC port as example; ST/FC wiring method is the same with SC) Figure 13 100M Fiber Port Wiring Note: A laser is used to transmit signals in fiber cables.
  • Page 14: Grounding

    Step 1: Take the power terminal block off KIEN3016A Step 2: Insert the power cable into the terminal block and fix the power cable Step 3: Put the terminal block back to KIEN3016A with the connected cable 5.4 Grounding Chassis grounding and power terminal grounding...
  • Page 15   Figure 15 Chassis Grounding and Power Terminal Grounding There is a grounding screw on the top panel of the KIEN3016A, which is for chassis grounding. One end of the chassis grounding cable is connected with the grounding screw and the other end of the cable is reliably grounded. (The cross section area of chassis grounding cable should be more than 2.5mm...
  • Page 16: Led Indicators

      Figure 16 18#AWG Yellow-green Line Note: If KIEN3016A needs to do a dielectric voltage withstand test, in order to ensure proper testing, please disconnect the 18#AWG yellow-green line to disable surge protection circuit that connects to surge grounding Figure 17 Disconnect 18#AWG Yellow-green Line 6.
  • Page 17: Product Models And Accessories

    Effective network connection in the port Link/Act Blinking Network activities in the port No effective network connection in the port 7. Product Models and Accessories The specific configuration models of KIEN3016A are shown in Table 5 Table 5 KIEN3016A Configuration Table Model Description Power KIEN3016A-16T...
  • Page 18: Basic Features And Specifications

    Single Mode Fiber:1310nm, 40Km/60Km(100Mbps); 1550nm, 60Km /80Km(100Mbps) Power Requirements Power input: 12VDC (9~36VDC), 24VAC/DC (18~50VAC, 18~72VDC) Power terminal: 5-pin 5.08mm-spacing plug-in terminal block Power consumption: KIEN3016A-16T:6.1W KIEN3016A-2S/M-14T:6.6W Physical Characteristics Housing: Metal, fanless Installation: DIN-Rail or Panel mounting Dimensions (W×H×D): 88mm×135mm×137mm Weight: 1.2Kg...
  • Page 19   Storage Temperature: -40℃ to 85℃(-40 to 185℉) Ambient Relative Humidity: 5% to 95% (non-condensing) MTBF: 361000h Warranty: 5 years...
