- Page 1 KIEN1009 Industrial Ethernet Switch Hardware Installation Manual Kyland Technology Co., Ltd. Publication Date: Mar. 2013 Version: V1.0 FAX: +86-10-88796678 Website: http://www.kyland.com E-mail: support@kyland.com No.: 1.12.02.1049-0...
- Page 2 KIEN1009 Industrial Ethernet Switch Hardware Installation Manual Disclaimer: Kyland Technology Co., Ltd. tries to keep the content of this manual as accurate and as updated as possible. This document is not guaranteed to be error-free, and we reserve the right to amend it without notice to users.
- Page 3 Notice for Safety Operation The product performs reliably as long as it is used according to the guidance. Artificial damage or destruction of the device should be avoided. Before using the device, read this notice carefully for personal and equipment safety. Please keep the manual for further reference. Kyland is not liable to any personal or equipment damage caused by violation of this notice.
- Page 4 Dispose of the device in accordance with relevant national provisions, preventing environmental pollution. In the following cases, please immediately shut down your power supply and contact your Kyland representative: Water gets into the equipment. Equipment damage or shell damage. ...
-
Page 5: Table Of Contents
Contents 1 Product Overview ........................1 2 Structure and Interface ......................2 2.1 Front Panel ......................... 2 2.2 Top Panel ........................... 5 3 Mounting ..........................6 3.1 Dimension Drawing ......................6 3.2 Mounting Modes and Steps ....................7 3.2.1 DIN-Rail Mounting ......................7 3.2.2 Panel Mounting ...................... -
Page 6: Product Overview

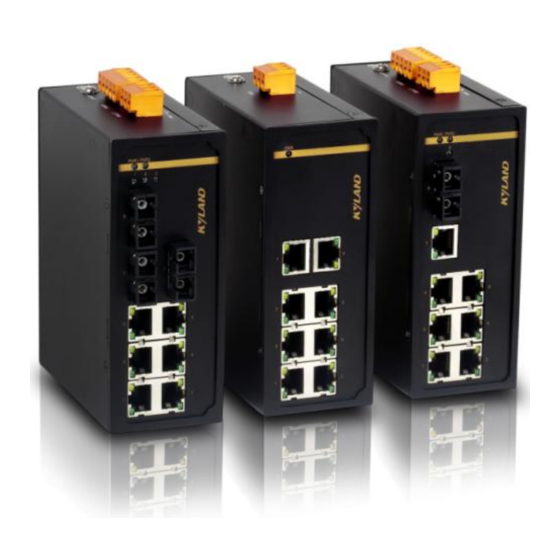

The series switches support DIN-rail and panel mounting. KIEN1009 provides up to six 10/100Base-T(X) Ethernet ports, two 100Base-FX Ethernet ports, and one 1000Base-X, 10/100/1000Base-T(X) SFP slot (gigabit SFP slot). Table 1 KIEN1009 Models... -
Page 7: Structure And Interface
It is recommended to purchase the port dustproof shield (optional) to keep ports clean and ensure switch performance. 2.1 Front Panel Front Panel of KIEN1009-E-8T Figure 1 Front Panel of KIEN1009-E-8T Table 2 Description of the Front Panel of KIEN1009-E-8T Identifier Description Power LED Eight 10/100Base-T(X) Ethernet ports... - Page 8 Structure and Interface Front Panel of KIEN1009-8T Figure 2 Front Panel of KIEN1009-8T Table 3 Description of the Front Panel of KIEN1009-8T Identifier Description PWR1 Power 1 LED PWR2 Power 2 LED Eight 10/100Base-T(X) Ethernet ports 10/100Base-T(X) Ethernet port speed LED (yellow)
- Page 9 Structure and Interface Front Panel of KIEN1009-1GX-2S/M-6T Figure 3 Front Panel of KIEN1009-1GX-2S/M-6T Table 4 Description of the Front Panel of KIEN1009-1GX-2S/M-6T Identifier Description PWR1 Power 1 LED PWR2 Power 2 LED Gigabit SFP slot connection status LED Gigabit SFP slot...
-
Page 10: Top Panel
Figure 5 Top Panel 2 Table 5 Description of Top Panel Identifier Description Power terminal block Power terminal block Grounding screw Note: Top panel 1 is applicable to KIEN1009-E-8T. Top panel 2 is applicable to KIEN1009-8T, KIEN1009-1S/M-7T, KIEN1009-2S/M-6T, KIEN1009-3S/M-6T, and KIEN1009-1GX-2S/M-6T. -
Page 11: Mounting
Mounting 3 Mounting 3.1 Dimension Drawing Figure 6 Dimensions for DIN-Rail Mounting (unit: mm) Figure 7 Dimensions for Panel Mounting (unit: mm) Caution: As part of the heat dissipation system, the switch housing becomes hot during operation. Please use caution when coming in contact and avoid covering the switch housing when the switch is running. -
Page 12: Mounting Modes And Steps
Mounting KIEN1009-3S/M-6T is used as an example to show the dimensions and mounting modes. The dimensions and mounting modes of other models are similar. 3.2 Mounting Modes and Steps The series switches support DIN-rail and panel mounting. Before installation, make sure that the following requirements are met. -
Page 13: Panel Mounting
Mounting Dismounting Step 1: Insert the head of a screwdriver into the opening of the spring locking piece at the bottom from the left. Lift the handle of the screwdriver to open the spring locking piece of the connecting seat, as shown on the left of the following figure. Step 2: Move the device in direction 2 until the bottom of the device is detached from the DIN rail. - Page 14 Mounting the screws through the Ф6.5 positions in the following figure. Move the device in direction 1 until the screws are in the Ф4 positions. Then tighten the screws. Figure 10 Panel Mounting Dismounting Step 1: Loosen the four screws with a screwdriver. Pull the device upward until the four screws are in the Ф6.5 positions in the following figure.
-
Page 15: Connection
Connection 4 Connection 4.1 10/100Base-T(X) Ethernet Port 10/100Base-T(X) Ethernet port is equipped with RJ45 connector. The port is self-adaptive. It can automatically configure itself to work in 10M or 100M state, full or half duplex mode. The port can also adapt to MDI or MDI-X connection automatically. You can connect the port to a terminal or network device with a straight-through or cross-over cable. -
Page 16: 100Base-Fx Ethernet Port
Connection Wiring Sequence Figure 13 Connection Using Straight-through/Cross-over Cable Note: The color of the cable for RJ45 connector meets the 568B standard: 1-orange and white, 2-orange, 3-green and white, 4-blue, 5-blue and white, 6-green, 7-brown and white, and 8-brown. 4.2 100Base-FX Ethernet Port 100Base-FX Ethernet port is equipped with FC/ST/SC connector, and each port consists of TX (transmit) port and RX (receive) port. -
Page 17: 1000Base-X, 10/100/1000Base-T(X) Sfp Slot
Connection 4.3 1000Base-X, 10/100/1000Base-T(X) SFP Slot 1000Base-X, 10/100/1000Base-T(X) SFP slot (gigabit SFP slot) requires an SFP optical/electrical module to enable data transmission. The following table lists the gigabit SFP optical/electrical modules (optional) supported by the series switches. Table 7 Gigabit SFP Optical/Electrical Modules Central Transmission Model... -
Page 18: Gigabit Sfp Electrical Module
Connection How to Connect the SFP Optical Module Insert the SFP optical module into the SFP slot in the switch, and then insert the fibers into the TX port and RX port of the SFP module. Figure 17 Connecting the SFP Optical Module Identify the RX port and TX port of an SFP optical module: 1. -
Page 19: Grounding
Connection How to Connect the SFP Electrical Module Insert the SFP electrical module into the SFP slot in the switch, and then insert the RJ45 connector of the twisted pair into the SFP module. Figure 19 Connecting the SFP Electrical Module 4.4 Grounding Grounding protects the switch from lightning and interference. - Page 20 Connection power input is faulty, the device can continue operating properly, thereby improving network reliability. Note: 0.75mm <Cross-sectional area of the power wire<2.5mm ; grounding resistance<5 3-Pin 5.08mm-Spacing Plug-in Terminal Block (single power input) The following figure shows the 3-pin 5.08mm-spacing plug-in terminal block. Figure 21 3-Pin 5.08mm-Spacing Plug-in Terminal Block (socket) The following table lists the pin definitions of the 3-pin 5.08mm-spacing plug-in terminal block.
- Page 21 Connection The following table lists the pin definitions of the 5-pin 5.08mm-spacing plug-in terminal block. Table 9 Pin Definitions of 5-Pin 5.08mm-Spacing Plug-in Terminal Block DC Definition AC Definition PWR1: + PWR1: L PWR1: - PWR1: N PGND PGND PWR2: - PWR2: N PWR2: + PWR2: L...
- Page 22 Figure 24 Connection of 5-Pin 5.08mm-Spacing Plug-in Terminal Block Caution: KIEN1009-E-8T supports 24DC power input and the other models support 12DCW and 24DCW power input. Before connecting the device to power supply, make sure that the power input meets the power requirement.
-
Page 23: Leds
LEDs 5 LEDs Table 10 LEDs State Description The power is connected and operates properly. Power LED (applicable to single power supply) The power is not connected or operates abnormally. Power (applicable Power 1 is connected and operates properly. redundant power supply) Power 1 is not connected or operates abnormally. -
Page 24: Basic Features And Specifications
DIN-rail mounting and panel mounting 53.6mm×135mm×106.5mm Dimensions (W×H×D) (excluding connectors, DIN rail, and plate for panel mounting) Weight 0.76Kg Environmental Limits 0℃~60℃ KIEN1009-E-8T KIEN1009-8T, KIEN1009-1S/M-7T Operating temperature -40℃~+85℃ KIEN1009-2S/M-6T, KIEN1009-3S/M-6T KIEN1009-1GX-2S/M-6T Storage temperature -40℃~+85℃ Ambient relative humidity 5%~95% (non-condensing) MTBF...
