GRUNDFOS INSTRUCTIONS

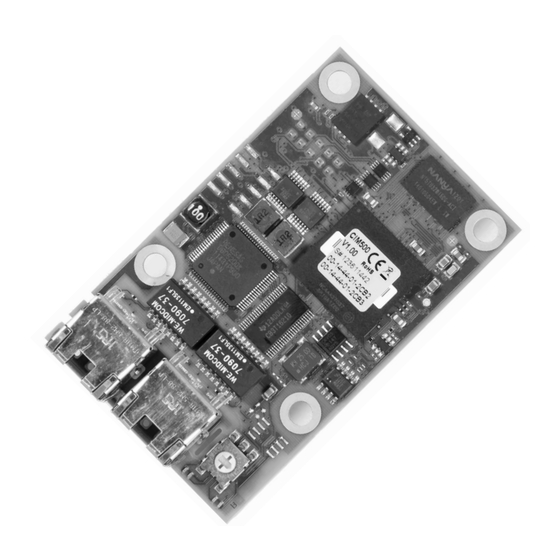

CIM 500 Ethernet module
Installation and operating instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CIM 500 and is the answer not in the manual?

Questions and answers

Related Manuals for Grundfos CIM 500

Summary of Contents for Grundfos CIM 500

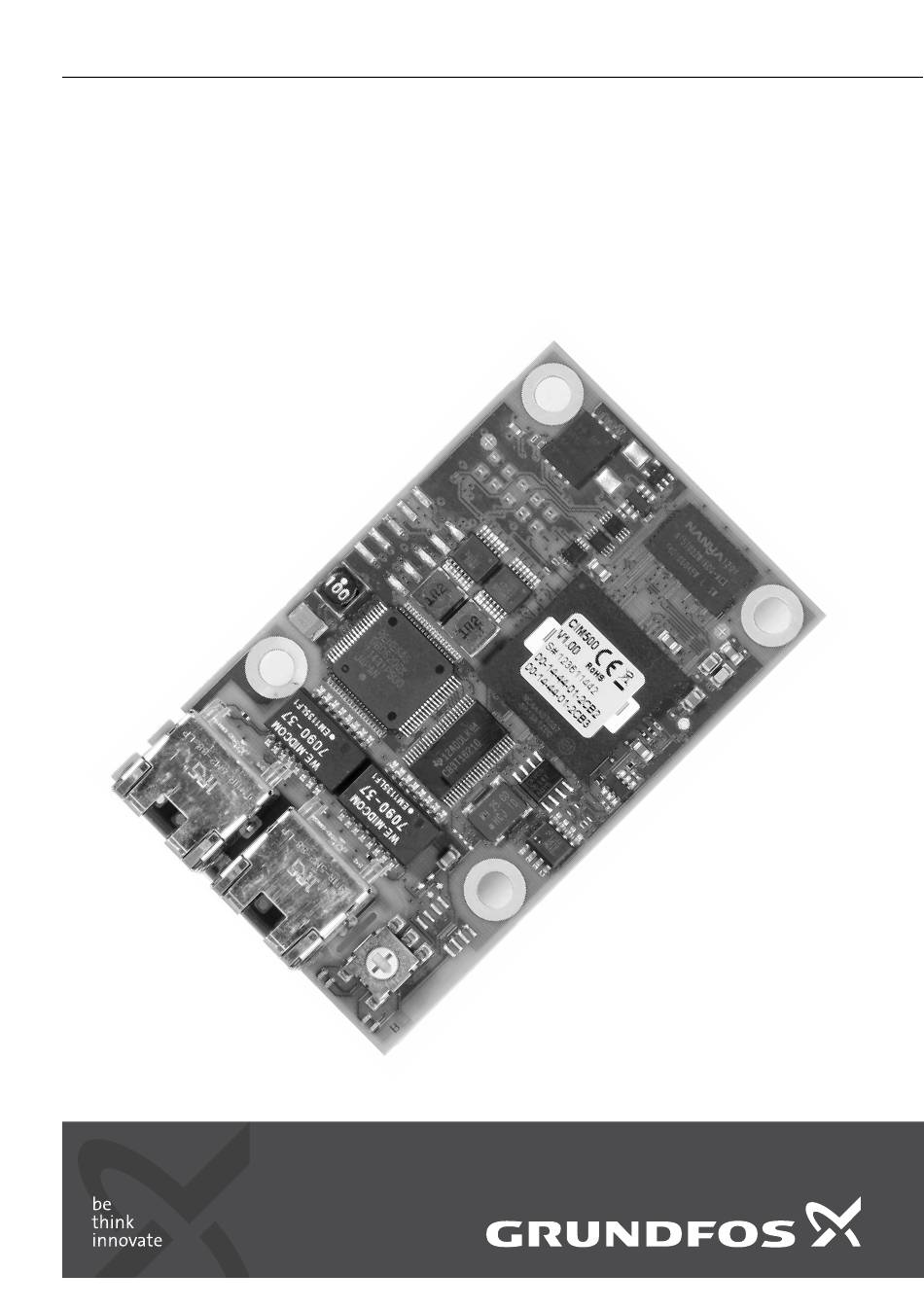

  • Page 1 GRUNDFOS INSTRUCTIONS CIM 500 Ethernet module Installation and operating instructions...

  • Page 2: Table Of Contents

    English (GB) Installation and operating instructions 2. Applications Original installation and operating instructions. The CIM 500 Ethernet module enables data CONTENTS transmission between an industrial Ethernet network Page and a Grundfos product. The module supports various industrial Ethernet Symbols used in this document protocols.

  • Page 3: Abbreviations

    2.1 Abbreviations 2.2 CIM 500 Ethernet module Communication Interface Module Communication Interface Unit Light-emitting diode Ground Dynamic Host Configuration Protocol. Used to configure network devices so DHCP that they can communicate via an IP network. Simple Network Time Protocol. Used for...

  • Page 4: Installation

    3. Installation Warning The CIM 500 must only be connected to SELV or SELV-E circuits. 3.1 Connecting the Ethernet cable RJ45 plugs and Ethernet cable must be used. The cable screen must be connected to protective earth at both ends.

  • Page 5: Selection Of Industrial Ethernet Protocol

    To establish a connection from a The module has a rotary switch for selection of the PC to the CIM 500, proceed as follows: industrial Ethernet protocol. See fig. 4. 1. Connect the PC and the module, using an Ethernet cable.

  • Page 6: Status Leds

    See section 6.1. Resetting to factory settings. 5. Data activity and link LEDs Flashing red After 20 seconds the CIM 500 will and green The module has two connectivity LEDs related to restart. each RJ45 connector. See fig. 1.

  • Page 7: Fault Finding

    6. Fault finding 6.1 Modbus TCP Faults in a module can be detected by observing the status of the two status LEDs. See the tables below. CIM 500 fitted in a Grundfos product Fault (LED status) Possible cause Remedy Both LEDs remain off when...

  • Page 8: Profinet Io

    6.2 PROFINET IO CIM 500 fitted in a Grundfos product Fault (LED status) Possible cause Remedy Both LEDs remain off when The module is fitted Check that the module is the power supply is incorrectly in the Grundfos fitted/connected correctly.

  • Page 9: Technical Data

    CIM 500 fitted in a CIU 500 Fault (LED status) Possible cause Remedy Both LEDs remain off when The CIU 500 is defective. the power supply is Replace the CIU 500. connected. LED1 remains off. SW1 is set to "1".
  • Page 10 Appendix How to configure an IP address on your PC 1. Enter an IP address and the subnet mask to be used by your PC. See fig. 6. 2. Open "Control Panel". 3. Select "Network and Sharing Center". 4. Click [Change adapter settings]. 5.
  • Page 11 By means of the web server you can also update the firmware of the CIM 500 module and store/restore settings. To connect a PC to the CIM 500, proceed as follows: 1. Connect the PC and the module, using an Ethernet cable.
  • Page 12 Modbus TCP configuration Fig. 8 Real Time Ethernet Protocol Configuration - Modbus TCP Object Description The default value is 502, the official IANA-assigned Modbus TCP port number. The number 502 will always be active implicitly. TCP Port Number If you select another value in the web server configuration field, both the new value and value 502 will be active.
  • Page 13 PROFINET IO master to a module fitted in a CIU or an E-box without installing this device in a real industrial process system. In an office environment, it can then be Grundfos product verified that communication works and data are received and handled correctly by the simulation PROFINET IO master application program (e.g.
  • Page 14 Application Configuration Fig. 10 Application Configuration Object Description IP address The static IP address for the web server. Factory setting: 192.168.1.100. Subnet mask The subnet mask for the web server. Factory setting: 255.255.255.0. Gateway The default gateway for the web server. Factory setting: 192.168.1.1. The module can be configured to use a specific domain name server.
  • Page 15 GENIpro TCP port settings TCP Port Number The module can transfer data from a Grundfos PC tool to the product via the GENIpro protocol. The TCP port number of the module and that of the PC tool must be identical.
  • Page 16 Email Configuration The web server in the module can be set to send an email notification in case of internal module events. Fig. 12 Email Configuration Object Description Enter the IP address of the SMTP server. If you enter a URL, the module will look it up SMTP Server via a DNS server and replace it with the IP address.
  • Page 17 Time Configuration Object Description Enter the IP address of the SNTP server and the CIM 500 will automatically adjust its clock. If you do not configure the SNTP server, or the connection is lost, the module will SNTP Server use the internal clock. If you enter a URL, the module will look it up via a DNS server and replace it with the IP address.
  • Page 18 User Management You must log in to use the built-in web server for configuration. The usernames and passwords can be configured from this page. The web server operates with two types of user: Administration – Access to all configurations/functions. Configuration –...
  • Page 19 Update You can update the firmware by means of the built-in web server. The binary file is supplied by Grundfos. Configuration To make installation and configuration easier, you can upload the configuration to a PC for backup or distribution to multiple modules.
  • Page 20 We, Grundfos, declare under our sole responsibility that the product Vi, Grundfos, erklærer under ansvar at produktet CIM 500 som denne CIM 500, to which this declaration relates, is in conformity with these erklæring omhandler, er i overensstemmelse med disse af Rådets Council directives on the approximation of the laws of the EC member direktiver om indbyrdes tilnærmelse til EF-medlemsstaternes...
  • Page 21 JP: EC 適合宣言 KO: EC 性합성 선언 Grundfos は、その責任の下に、CIM 500 製品が EC 加盟諸国の法規 Grundfos 에서는 자사의 단독 책임에 따라 이 선언과 관련된 CIM 500 に関連する、以下の評議会指令に適合していることを宣言します： 제품이 EC 회원국 법률에 기반한 다음 이사회 지침을 준수함을 – 低電圧指令 （2006/95/EC） 。 선언합니다 : 適用規格：...
  • Page 22 Argentina China Hong Kong Bombas GRUNDFOS de Argentina S.A. GRUNDFOS Pumps (Shanghai) Co. Ltd. GRUNDFOS Pumps (Hong Kong) Ltd. Ruta Panamericana km. 37.500 Centro 50/F Maxdo Center No. 8 XingYi Rd. Unit 1, Ground floor Industrial Garin Hongqiao development Zone Siu Wai Industrial Centre 1619 Garín Pcia.
  • Page 23 United Arab Emirates Telefax: +60-3-5569 2866 Singapore GRUNDFOS Gulf Distribution Mexico GRUNDFOS (Singapore) Pte. Ltd. P.O. Box 16768 Bombas GRUNDFOS de México S.A. de 25 Jalan Tukang Jebel Ali Free Zone C.V. Singapore 619264 Dubai Boulevard TLC No. 15 Phone: +65-6681 9688...
  • Page 24 98407037 1213 ECM: 1126250 www.grundfos.com...
