- Page 1 4 1 0 E HEM ATOCR I T CE NT R I FU G E USER MANUAL SAVE THIS MANUAL FOR FUTURE USE. GF_410E-INS-LAB-RevE23...
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION ................. 2 PRODUCT OVERVIEW ............3 GLOSSARY ................3 INTENDED USE ............... 3 IMPORTANT SAFETY GUIDELINES .......... 3 SETUP ..................4 UNPACKING ................4 CONTENTS ................4 REPLACEMENT PARTS............4 INSTALLATION ................ 4 SPECIMEN COLLECTION ............5 MATERIALS NEEDED: ............5 CAPILLARY TUBE SPECIFICATIONS ........ -
Page 3: Product Overview

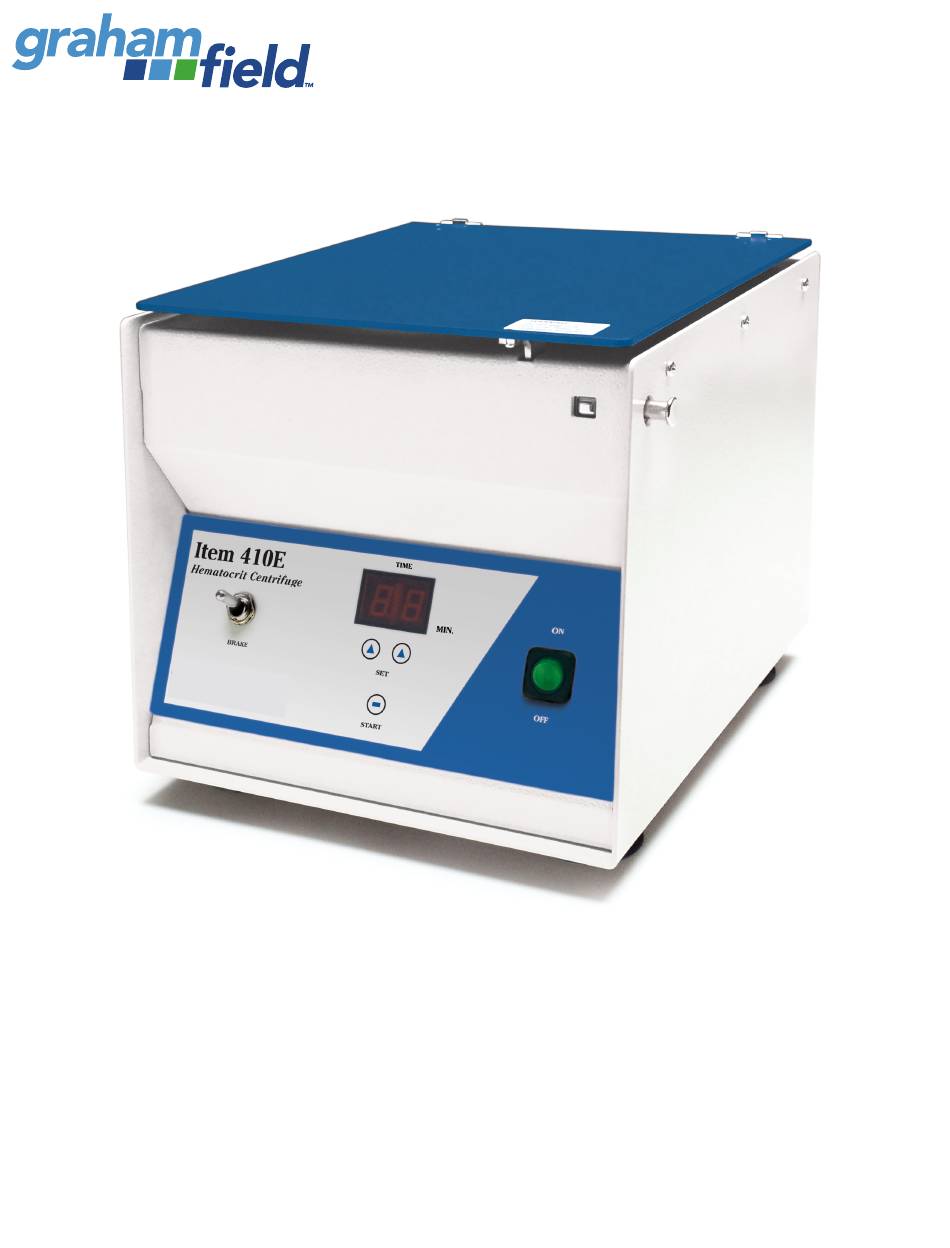

The Hematocrit Centrifuge, shown above, features a digital timer (up to 99 minutes), 410E Hematocrit Centrifuge fixed speed, brake control, and a reading scale. This unit spins loads at a fixed speed of 12,000 RPM and has a thermal cutout switch to prevent overheated operating temperature. -
Page 4: Setup
WARNING: Important! Read and understand these instructions before installing or using the 410E Hematocrit Centrifuge. If you do not understand any part of these instructions, contact your medical professional or GF authorized distributor for direction in the use of this product. -
Page 5: Installation
Installation s NOTICE: The operation of AC motor is affected by the surrounding power consumption, which will result in a fluctuation of speed. To assure an accurate RPM and its corresponding RCF, do not place this equipment in draft, sunlight or near a piece of equipment that emits heat and/or electromagnetic conduction emission. -
Page 6: Loading The Rotor
Loading the Rotor The Hematocrit Centrifuge can hold up to 24 capillary tubes of size 1.2mm (or 1.5mm) x 75mm. 1. Open the centrifuge lid (if centrifuge lid is locked, press the unlocking button on front of centrifuge to unlock it). 2. -
Page 7: Interpreting Results: Using The Reading Scale
WARNING: DO NOT open the centrifuge lid until the rotor has completely stopped spinning. Opening the lid before the rotor has stopped spinning could result in personal injury. INTERPRETING RESULTS: USING THE READING SCALE 100% centrifuge adjustable bar tube capillary tube holder diagonal line... -
Page 8: Limitations And Factors Affecting Results
Limitations and Factors Affecting Results 1. Inadequate centrifugation, either time or RPM, will result in erroneously high reading. 2. Ensure that the capillary tube is sealed properly, to prevent red cell loss during centrifugation. The rubber gasket encircling the interior of the rotor must be smooth and pliable. -
Page 9: Maintenance
MAINTENANCE WARNING: Centrifuge disassembly or dismantling is limited to authorized service personnel only. WARNING: Always use a properly grounded electrical outlet of correct voltage and current handling capacity. WARNING: Do not immerse the centrifuge in or saturate it with water. s NOTICE: Do not lubricate the drive motor or linkage assembly. -
Page 10: Specifications
Specifications Model 410E Hematocrit Centrifuge CE marking Conforms to LVD 73/23 EEC safety standards. Standard Complies with EC Electromagnetic Compatibility requirement of EN60601-1-2. EMI filter is designed in conformity with 89/336 EEC-EMC Directive. Complies with IEC801 series regulations. Complies with EN standard N.W. -
Page 11: Limited Warranty
LIMITED WARRANTY SCOPE OF WARRANTY GF Health Products, Inc. (“GF”) warrants to the original purchaser only that it will replace or repair components, at GF’s sole discretion, that are defective in material or workmanship under normal use and service. All warranties are conditioned upon the proper use of the products strictly in accordance with good commercial practice and applicable GF instructions and manuals, including proper use and maintenance. - Page 12 Manufactured For: GF Health Products, Inc. One Graham-Field Way, Atlanta, GA 30340 Made in Taiwan +1 770.368.4700 © 2022, GF Health Products, Inc. All Rights Reserved. Information contained herein is subject to change without notice. Graham-Field is a trademark of GF Health Products, Inc. The most current and complete product information can be found on our website.
