Configuration Of Kantech Boards; Kantech Access Controller Position Chart - Altronix Trove T2KHK3F12 Installation Manual

1. Align Kantech boards on the backplane to match the boards' mounting holes with corresponding holes in backplane.
a. Position standoff over appropriate hole on the rear of backplane and depress it until it locks in place (Fig. 2a, pg. 3, Step 1a).
b. Depress down on board to secure it to the standoff (Fig. 2a, pg. 3, Step 1b).
2. Fasten backplane to Trove2 enclosure utilizing pan head screws (provided).
Kantech Access Controller Position Chart for the Following Models:
Kantech Board
KT-400 Door Controller
KT-300 Door Controller
KT-MOD-INP16 or KT-MOD-OUTP16 Expansion Boards

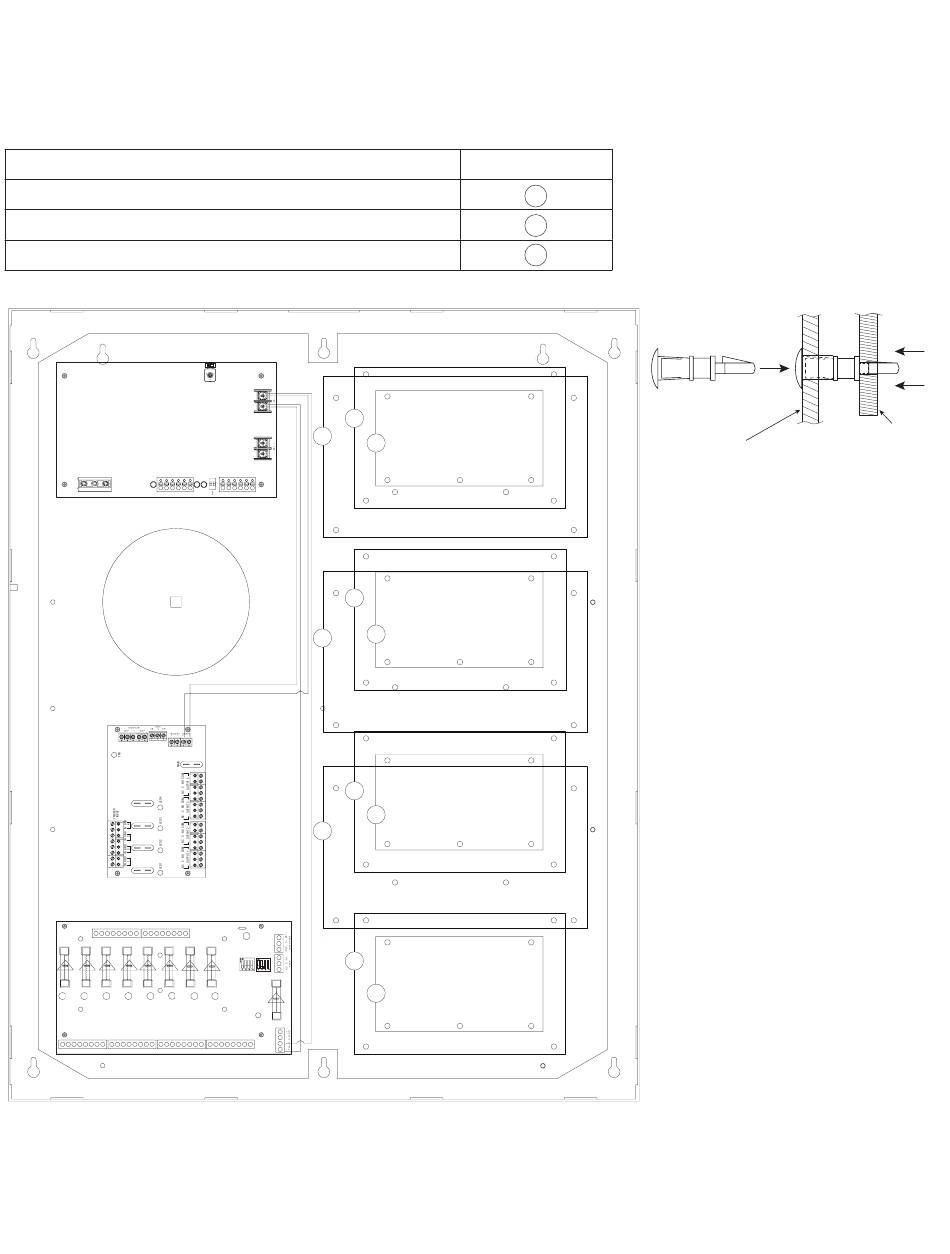

Fig. 2
Altronix
eFlow6NB
AC1
L G N NC C NO NC C NO
AC FAIL BAT FAIL
Altronix
T1618300K
Altronix
ACM4
IN GND IN GND IN GND IN GND IN GND IN GND IN GND IN GND
5 6 7 8
1 2 3 4
F1 F2 F3 F4 F5 F6
NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM
OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 OUTPUT 5
T2KHK3F12

Configuration of Kantech Boards:

OFF - 24V
ON - 12V
B
A
AC DC
TRIGGER EOL NO GND
+AUX-
SUPERVISED RESET
B
A
B
A
FACP
TRIGGER
TRG
INPUT
F7 F8
B
O N O N
1 2 3 4 1 2 3 4
Altronix
ACM8
MAIN
10A 250V
OUTPUT 6 OUTPUT 7 OUTPUT 8
Pem Mounting
A
B
C
C
C
C
C
Step 1a
Kantech
Standoff
Back of TKH2
Fig. 2a
Step 1b
Kantech
Board
