ASSEMBLY

• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you inish all assembly steps.
• Left parts are marked "L" or "Left" and right parts
are marked "R" or "Right."
1. Go to www.iconsupport.eu on your computer
and register your product.
• documents your ownership
• activates your warranty
• ensures priority customer support if assistance
is ever needed
Note: If you do not have internet access, call
Customer Care (see the front cover of this
manual) and register your product.

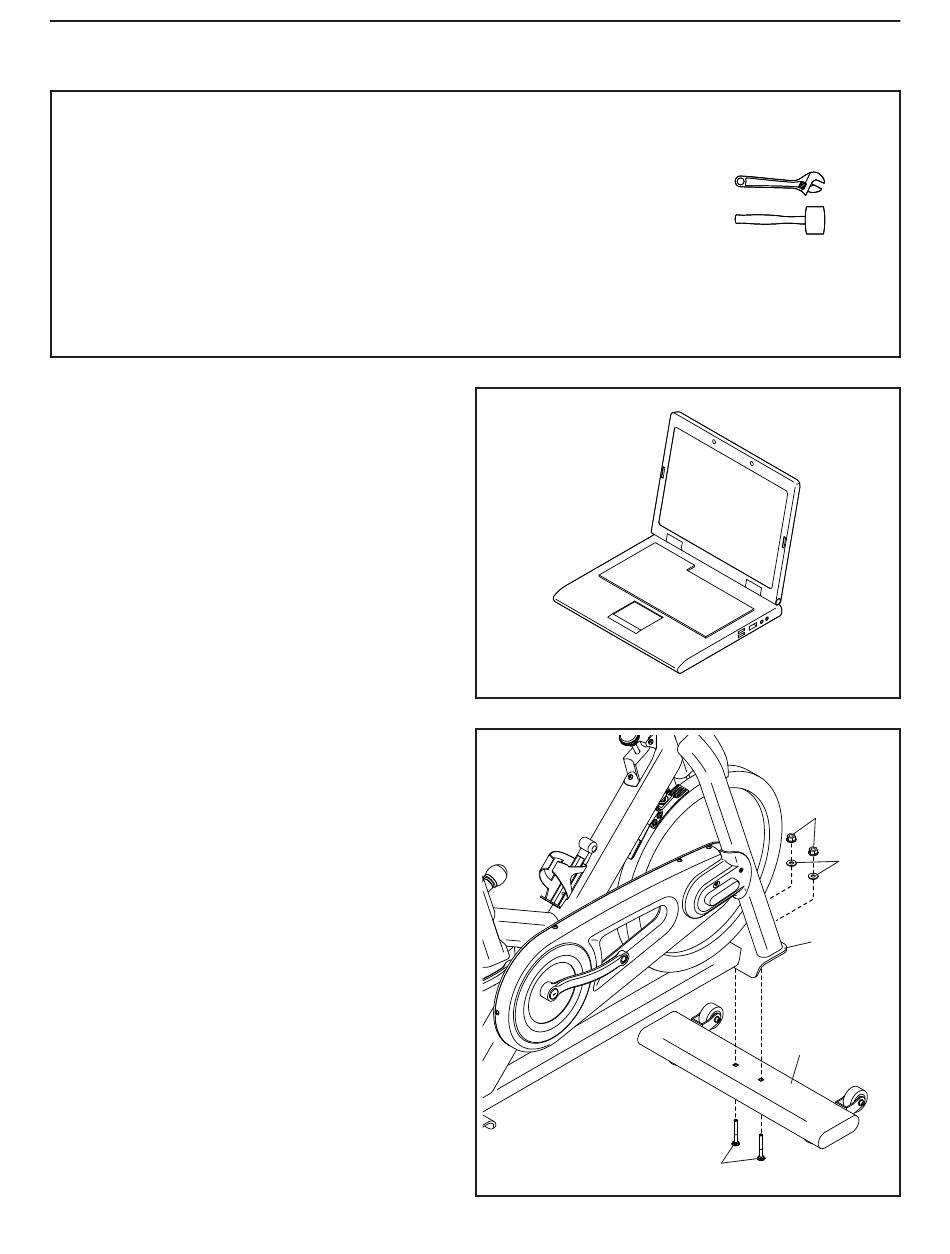

2. If there are shipping tubes (not shown) attached
to the front and rear of the Frame (1), remove
and discard the shipping tubes and the hardware
attaching them.
Orient the Front Stabilizer (4) as shown.
Attach the Front Stabilizer (4) to the Frame (1)
with two M8 x 55mm Carriage Bolts (9), two M8
Washers (3), and two M8 Flange Nuts (2).
• In addition to the included tool(s), assembly
requires the following tool(s):
one adjustable wrench
one rubber mallet
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
1
2
6
2
3
1
4
9
