ASSEMBLY
② ①
②
Fig. 5
①
Fig. 6
①
②
③
Fig. 7
UNITRON
VERSAMET 4 INVERTED METALLURGICAL MICROSCOPE
(continued)
②
③
73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com

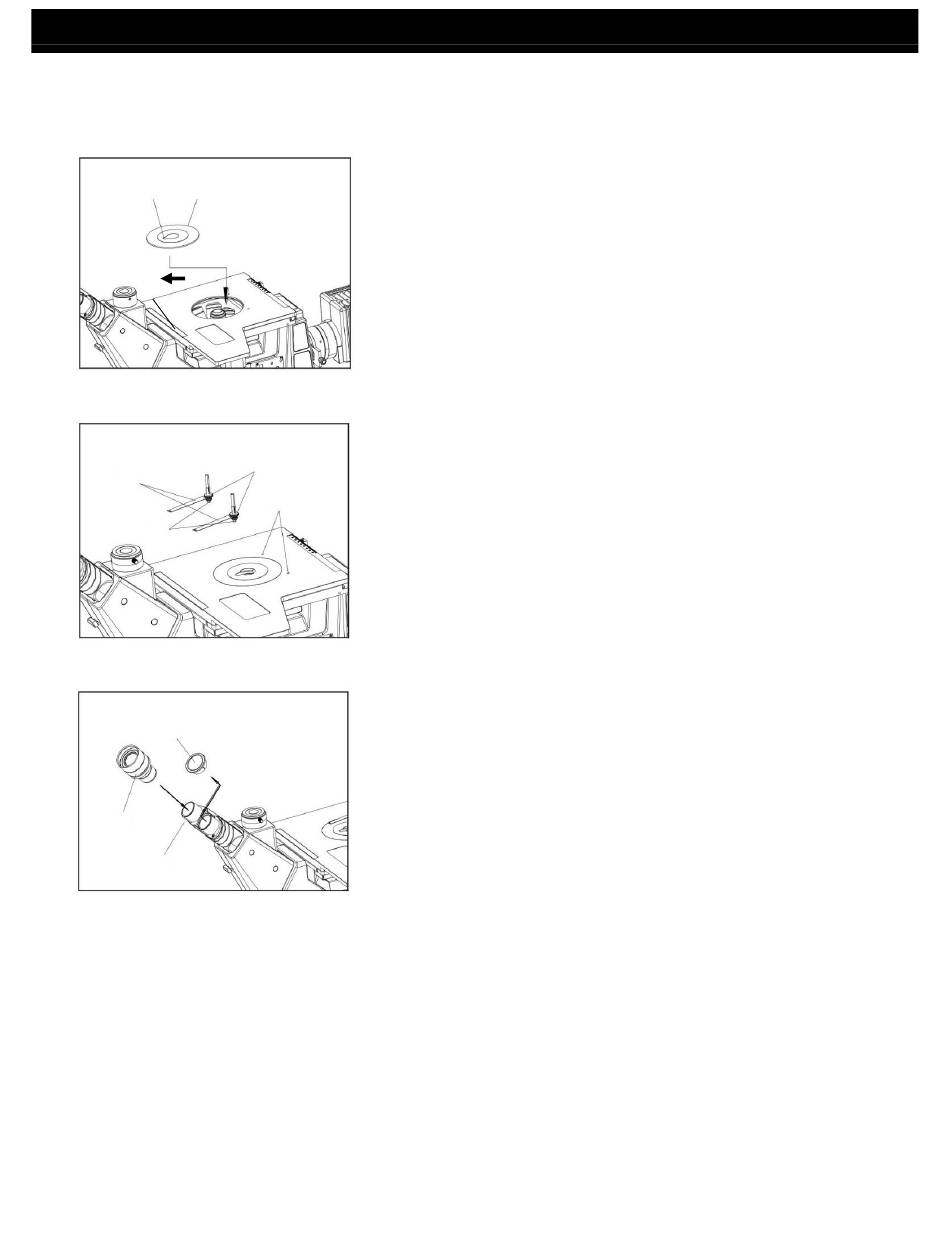

Installing the Metal Insert Stage Plate
(Fig. 5)
Place the metal insert stage plate ① with the V
groove ② facing the user to make it easier to check
the objective.
Installing the Stage Clips (Fig. 6)
Remove the clip ① from the column ② and screw
the column into one of the holes ③ on the stage.
Secure the column to the stage with the screw.
Then slide the clip onto the column facing toward the
user.
Repeat for the other stage clip.
Installing the Eyepieces (Fig. 7)
Remove the eyetube caps ① and insert the
eyepieces ② into the eyepiece tubes ③.
Lock in the eyepieces using the supplied 1.5mm hex
wrench to tighten the lock screw on each eyepiece
tube.
9
