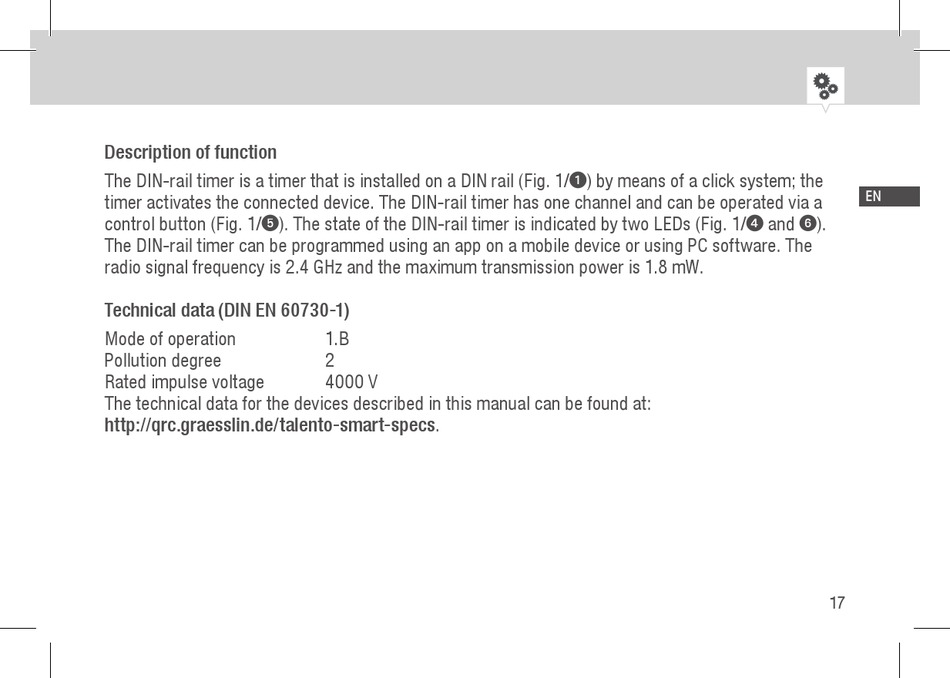

Description of function
The DIN-rail timer is a timer that is installed on a DIN rail (Fig. 1/
timer activates the connected device. The DIN-rail timer has one channel and can be operated via a
control button (Fig. 1/ ). The state of the DIN-rail timer is indicated by two LEDs (Fig. 1/
5
The DIN-rail timer can be programmed using an app on a mobile device or using PC software. The
radio signal frequency is 2.4 GHz and the maximum transmission power is 1.8 mW.
Technical data (DIN EN 60730-1)
Mode of operation
Pollution degree
Rated impulse voltage
The technical data for the devices described in this manual can be found at:
http://qrc.graesslin.de/talento-smart-specs.
1.B
2
4000 V
) by means of a click system; the
1
4
EN
and ).
6
