User Manual
Innovation Compact
User manual

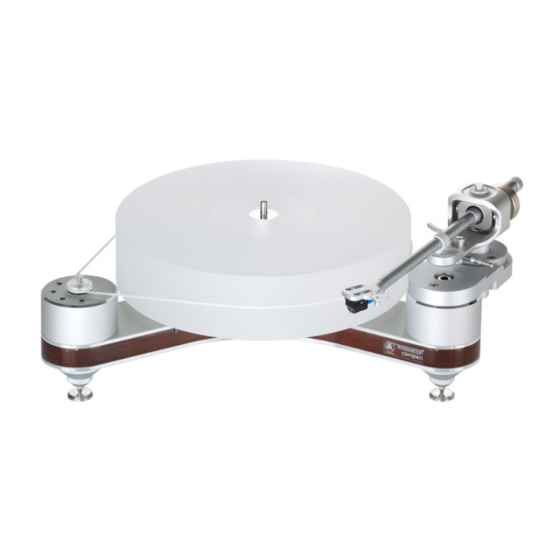

Silver with natural wood chassis
Figures: Package with
Clearaudio tonearm
„Magnify" and Clearaudio
cartridge „Stradivari V2".
Black with black chassis
Made in Germany
Clearaudio electronic
®
GmbH
Spardorfer Str. 150 • D-91054 Erlangen • Tel. +49 9131 40300100 • FAX + 49 9131 40300119
www.clearaudio.de • www.analogshop.de • info@clearaudio.de
© Clearaudio electronic GmbH 2016
Version: 1.4_13.10.2016_E
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Clearaudio Innovation Compact
Summary of Contents for Clearaudio Innovation Compact
- Page 1 Black with black chassis Made in Germany Clearaudio electronic ® GmbH Spardorfer Str. 150 • D-91054 Erlangen • Tel. +49 9131 40300100 • FAX + 49 9131 40300119 www.clearaudio.de • www.analogshop.de • info@clearaudio.de © Clearaudio electronic GmbH 2016 Version: 1.4_13.10.2016_E...
- Page 2 EQUIPMENT MAINS WORKING SETTING Your Clearaudio product has been prepared to comply with the household power and safety requirements that exist in your area. This product can be connected to 230 V or 110 V AC (50 Hz and 60 Hz).
-
Page 3: Table Of Contents
2. List of components 5 - 6 3. Installation and setup 7 - 10 4. Fine adjustment of the motor 5. Special instruction 6. Technical data Warranty information User manual Stroboscope Testrecord 15 - 16 Page 3 © Clearaudio electronic GmbH 2016... -
Page 4: Packing Overview
Clearaudio Quality Card, Stroboscope Testrecord Innovation Compact turntable chassis incl. mounted lower bearing part and integrated motor unit; optional: tonearm Platter with integrated bearing upper part; power supply; optional: cartridge Pic. 1: Packing overview Page 4 © Clearaudio electronic GmbH 2016... -
Page 5: List Of Components
Innovation Compact User manual 2. List of components Innovation Compact Clearaudio has developed a special and secure packing for your turntable that ensures a safe transportation. Please keep this original packing, if you need to ship the turntable. Innovation Compact... - Page 6 Turntable + tonearm + cartridge No illustration: cartridge alignment gauge for Magnify Universal tonearm (optional) 4 pcs. hex wrench; sizes: Not shown: warranty card, Clearaudio Quality # 1,5/# 2,5/#3/#7 certificate card Screw driver Not shown: User Manual IMPORTANT NOTICE: Please double check the tightness of all bolts, hardware, and mounting pods, as temperature fluctuations during transit may have caused the hardware to become loose.
-
Page 7: Installation And Setup
Please use the white gloves enclosed in order to avoid scratches or unwanted fingerprints (platter). Innovation Compact turntable requires a space for setup of at least 18.90 inch x 19.29 inch. 19.29 inch / 490 mm 18.90 inch / 480 mm Pic. 3: Required setup space © Clearaudio electronic GmbH 2016 Page 7... - Page 8 Remove the protective security tape from the bearing housing. Place two drops of the synthetic bearing oil on the ceramic bearing shaft (also available at www.analogshop.de / Art. No. AC068). Pic. 6: Oiling the bearing shaft Page 8 © Clearaudio electronic GmbH 2016...
- Page 9 (approx. 20 ° Celsius). Make sure with gentle pressure that the platter is applying on the complete surface of the bearing. Pic. 8: Setting up the platter © Clearaudio electronic GmbH 2016 Page 9...
- Page 10 After the initial setup we recommend to let the turntable spin for at least 15 to 30 minutes. This ensures a smoother break in. Pic. 11: Connection of power supply and motor Page 10 © Clearaudio electronic GmbH 2016...
-
Page 11: Fine Adjustment Of The Motor
Follow hereby the instruction of the user manual. To check the speed with highest accuracy please use the Clearaudio Speed Light (Art. No. AC039) (www.analogshop.de). On the front side of your turntable there are three setting trimmers (see pic. 11). -
Page 12: Special Instruction
Only if the product is returned in its original packing Clearaudio can provide the warranty. 5.3 Service In case of any necessary, service for all Clearaudio products should be done by authorized personal only. Innovation Compact In case of any repair, the Clearaudio... -
Page 13: Technical Data
Warranty: 5 years* (see page 15) * Only if the warranty card is filled out correctly and sent back to Clearaudio! Clearaudio electronic is not responsible for typographical errors in descriptions. Technical specifications subject to change or improvement without prior notice. Availability as long as stock lasts. Copies and imprints- also only in extracts –... -
Page 14: Warranty Information
RETAIN YOUR PURCHASE RECEIPT Your purchase receipt is your permanent record of a valuable purchase. It should be kept in a safe place to be referred to as necessary for insurance purposes or when corresponding with Clearaudio. IMPORTANT When seeking warranty service, it is the responsibility of the consumer to establish proof and date of purchase. Your purchase receipt or invoice is adequate for such proof. -
Page 15: User Manual Stroboscope Testrecord
33.3 Hz, 45 Hz and 78 Hz (starting from the outer diameter). Stroboscope Testrecord Please place the on your turntable platter and start the engine of your turntable. The big advantage of the Clearaudio Stroboscope Testrecord Stroboscope Testrecord is, that you can place your cartridge onto the , while measuring the speed, as there are grooves provided on the disc. - Page 16 With the outside scale you can detect the speed of 33 Hz and with the inside scale you can detect the Stroboscope Testrecord speed of 45 Hz. Again, the big advantage of the Clearaudio is, that you can place your cartridge onto the stroberecord, while measuring the speed, as there are grooves provided on the disc.
