Clearaudio Innovation Compact User Manual

Innovation compact
Hide thumbs Also See for Innovation Compact:

Advertisement

Quick Links

Download this manual See also: User Manual
I
n
n
o
v
a
t
I
n
n
o
v
a
t
Innovation Compact
Innovation Compact
Figures: package with
Clearaudio tonearm „Universal"
and Clearaudio cartridge „da
Vinci".
Hi-Fi Components
Spardorfer Str. 150  D-91054 Erlangen  Tel. +49 9131 40300100  FAX +49 9131 40300119
www.clearaudio.de  www.analogshop.de  info@clearaudio.de  copyright clearaudio2014
i
o
n
C
o
m
i
o
n
C
o
m
Clearaudio electronic
p
a
c
t
p
a
c
t

User manual

Innovation Compact and
Innovation Compact Wood
Innovation Compact Wood
®
GmbH
Version August 2014

Advertisement

loading
Need help?

Need help?

Do you have a question about the Innovation Compact and is the answer not in the manual?

Questions and answers

Related Manuals for Clearaudio Innovation Compact

Summary of Contents for Clearaudio Innovation Compact

  • Page 1: User Manual

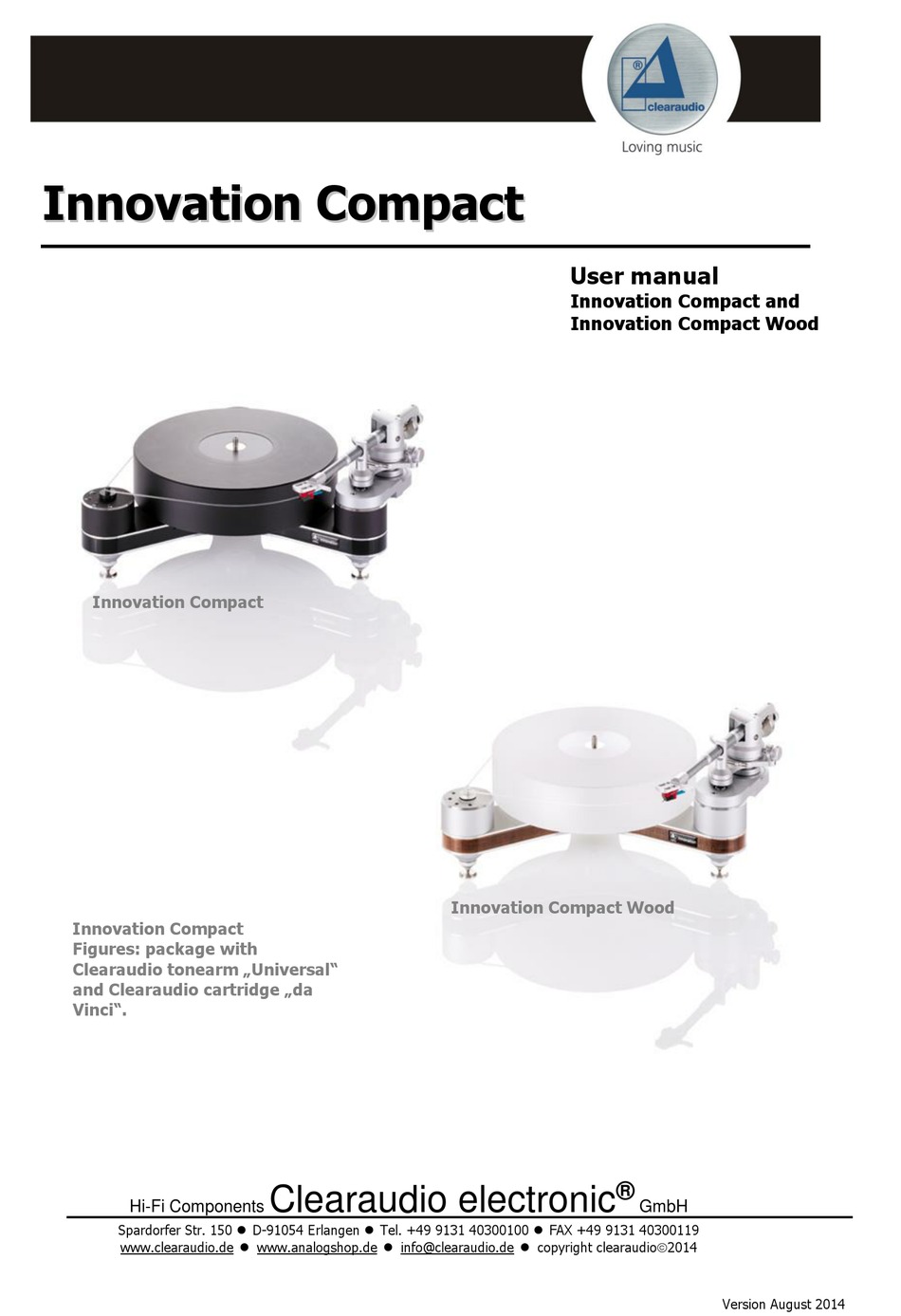

    Clearaudio tonearm „Universal“ and Clearaudio cartridge „da Vinci“. ® Clearaudio electronic Hi-Fi Components GmbH Spardorfer Str. 150  D-91054 Erlangen  Tel. +49 9131 40300100  FAX +49 9131 40300119 www.clearaudio.de  www.analogshop.de  info@clearaudio.de  copyright clearaudio2014 Version August 2014...
  • Page 2 (EMC) and low-voltage appliances. EQUIPMENT MAINS WORKING SETTING Your Clearaudio product has been prepared to comply with the household power and safety requirements that exist in your area. This product can be connected to 230 V or 110 V AC (50 Hz and 60 Hz).

  • Page 3: Table Of Contents

    Innovation Compact User manual Contents 1. Packing overview 2. Part list 3. Installation and set up 4 Fine adjustment of the motor 5. Service and special instruction 6. Technical data Warranty information Page 2  Clearaudio electronic GmbH 2014...

  • Page 4: Packing Overview

    Quality Card, Stroboscope Testrecord Innovation Compact turntable chassis incl. mounted lower bearing part and integrated motor unit; optional: tonearm Platter with integrated bearing upper part; power supply; optional: cartridge Pic. 1: Packing overview Page 3  Clearaudio electronic GmbH 2014...

  • Page 5: Part List

    Innovation Compact User manual 2. Part list Innovation Compact Clearaudio has developed a special and secure packing for your turntable that ensures a safe transportation. Please keep this original packing, if you need to ship the turntable. Innovation Compact- Below you find the part list of the Clearaudio...
  • Page 6 Optional in package: Clearaudio MC cartridge Turntable + tonearm + cartridge No illustration: cartridge alignment Unify or Universal gauge for -tonearm (optional) 16. Not shown: warranty card, Clearaudio Not shown: User Manual Quality certificate card Page 5  Clearaudio electronic GmbH 2014...

  • Page 7: Installation And Set Up

    Innovation Compact turntable requires a space for set-up of at least 18,90 inch x 19,29 inch. 19,29 inch / 49 cm 18,90 inch / 48 cm Pic. 2: Required set - up space Page 6  Clearaudio electronic GmbH 2014...
  • Page 8 Pic. 4: Grounding the bearing of the Innovation Compact Remove the protective security tape from the bearing housing. Place two drops of the synthetic bearing oil on the ceramic bearing shaft (also available at www.analogshop.de).
  • Page 9 (approx. 20 ° Celsius). Pic. 7: To set up the platter Make sure with gentle pressure that the platter is applying on the complete surface of the bearing. Page 8  Clearaudio electronic GmbH 2014...
  • Page 10 33 1/3 rpm is reached. After the initial set-up we recommend to let the turntable spin for at least 15 to 30 minutes. This ensures a smoother break in. Pic. 10: Connection of power supply and motor Page 9  Clearaudio electronic GmbH 2014...

  • Page 11: Fine Adjustment Of The Motor

    Please check the speed before using the turntable for the first time. For the correct adjustment of the speed please put the recommended Clearaudio Stroboscope Testrecord on the platter. Follow hereby the instruction of the Stroboscope Testrecord user manual.

  • Page 12: Service And Special Instruction

    Innovation Compact User manual 5. Service and special instruction In case of any necessary, service for all Clearaudio products should be done by authorized personal only. Innovation Compact In case of any repair, the Clearaudio -turntable needs to be send to your nearest authorized Clearaudio distributor, dealer or directly to the Clearaudio factory.

  • Page 13: Technical Data

    Warranty: 5 years* (see page 13) * Only if the warranty card is filled out correctly and sent back to Clearaudio! Clearaudio electronic is not responsible for typographical errors in descriptions. Technical specifications subject to change or improvement without prior notice. Availability as long as stock lasts.

  • Page 14: Warranty Information

    RETAIN YOUR PURCHASE RECEIPT Your purchase receipt is your permanent record of a valuable purchase. It should be kept in a safe place to be referred to as necessary for insurance purposes or when corresponding with Clearaudio. IMPORTANT When seeking warranty service, it is the responsibility of the consumer to establish proof and date of purchase. Your purchase receipt or invoice is adequate for such proof.

This manual is also suitable for:

Innovation compact wood
