- Page 1 HES-3106SFP-F2 6-port L2+ Managed Gigabit Fiber Switch User’s Guide Version:...
-
Page 2: Revision History
This is a Class A product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures. Trademarks CTS is a registered trademark of Connection Technology Systems Inc. All trademarks belong to their respective proprietor Contents subject to change without prior notice. -
Page 3: Cts Contact Information
CTS Contact Information Headquarter/Manufacturer: ▓ Connection Technology Systems Inc. 18F-6, No.79, Sec.1, Xintai 5th Rd., XiZhi Dist., New Taipei City 221, Taiwan(R.O.C) Tel: +886-2-2698-9661 Fax: +886-2-2698-9662 Dir.Line:+886-2-2698-9201 www.ctsystem.com Global Authorized Representatives: ▓ Connection Technology USA Inc. Connection Technology Systems Japan... -
Page 4: Table Of Contents
Table of Contents Revision History ..................ii CTS CONTACT INFORMATION ..............III TABLE OF CONTENTS ................IV CHAPTER 1. INTRODUCTION ..............2 1.1 O HES-3106SFP-F2 ............2 VERVIEW OF 1.2 K .................. 3 EATURES 1.3 F & T & S .............. -
Page 5: About This Manual
About this manual In this user’s guide, it will not only clearly introduce CTS HES-3106SFP-F2 Managed Switch but tell you how to install this Managed Switch with detailed instructions. Organization of the Manual Chapter 1 “Introduction” describes the features of the Managed Switch ... -
Page 6: Chapter 1. Introduction
Introduction Introduction CTS’s Managed Switch is designed to meet the emerging FTTX & Metro Ethernet requirements. When massive fiber ports need to be deployed, the Managed Switch provides the best performance and price ratio. 1.1 Overview of HES-3106SFP-F2 HES-3106SFP-F2, a compact Managed Ethernet Switch, has 4 x 10/100/1000Base-T RJ-45 ports and 2 x 100/1000Base-X SFP ports on the front panel. -
Page 7: Key Features
Introduction 1.2 Key Features 4 x 10/100/1000Base-T ports IEEE 802.3/802.3u/802.3ab Support Auto-Negotiation Support MDI/MDIX/Auto-Crossover RJ-45 Slot 2 x 100/1000Base-X ports IEEE 802.3u/802.3z compliance Support Auto-Sensing for fiber ports SFP Slot Switching Features Store & forward switching Non-blocking switching fabric: 12Gbps Mac address table: 2K Memory buffer total 1MB VLANs support up to 128 VLAN Groups... - Page 8 Introduction Operation Environment Operating Temperature: 0ºC~50ºC Publication date: April 23, 2019 Revision 1.1...
-
Page 9: Front & Top & Side Panels

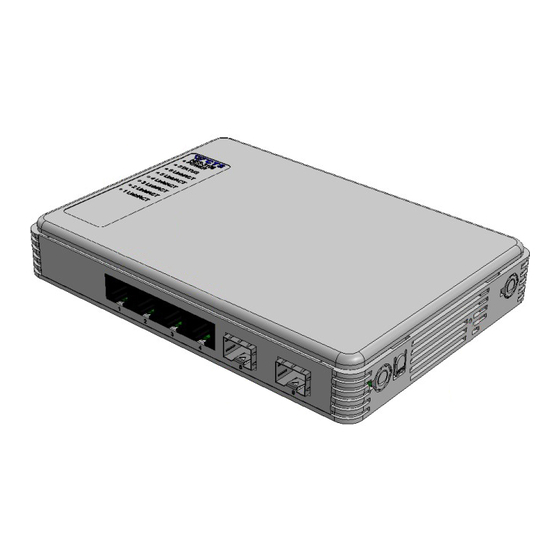

1.3 Front & Top & Side Panels 1.3.1 Front & Top & Right-side Panels Figure 1-1. Side View of HES-3106SFP-F2 Managed Switch The interfaces on the front & top & right-side panels of the Managed Switch are described below: 4 x 10/100/1000Base-T RJ-45 Ports (Ports 1-4) -
Page 10: Left-Side Panel
Introduction 1.3.2 Left-side Panel Figure 1-2. Left-side Panel of HES-3106SFP-F2 Managed Switch The interface on the left-side panel of the Managed Switch is described below: Power Jack: DC Power Consumption: DC 12V, 0.49A Publication date: April 23, 2019 Revision 1.1... -
Page 11: Led Definitions
1.4 LED Definitions The Managed Switch is Plug & Play compliant. The real-time operational status can be monitored through a set of LED indicators located on the top panel. Figure 1-3. LEDs of HES-3106SFP-F2 Managed Switch Color Operation Device is powered down or works abnormally. - Page 12 Introduction No connection exists. Lit when 1000Mbps Fiber port link is up. Blinking when Fiber port is receiving and Orange Link/ACT transmitting data at the speed of 1000Mbps. (5~6 Ports) Lit when 100Mbps Fiber port link is up. Blinking when Fiber port is receiving and Green transmitting data at the speed of 100Mbps.
-
Page 13: Cable Specifications
Introduction 1.5 Cable Specifications The following table contains various cable specifications for the Managed Switch. Please make sure that you use the proper cable when connecting the Managed Switch. Cable Type Description UTP Category 3, 4, 5 (100 meters max.) 10Base-T EIA/TIA- 568 150-ohm STP (100 meters max.) UTP Cat. -
Page 14: Chapter 2. Installation
Installation Installation To properly install the HES-3106SFP-F2 Managed Switch, please follow the procedures listed below. These procedures will be respectively described in detail in the following sections. Installation Requirements Checking the Package Contents Installing the Managed Switch ... -
Page 15: Installation Requirements
Installation 2.1 Installation Requirements Basic requirements for installation are as follows: Environmental conditions One power outlet Proper ventilation Proper isolation to electrical noise, radio, etc. UTP cables should not run in the same duct with power and phone line cables ... -
Page 16: Installing The Managed Switch
Installation 2.3 Installing the Managed Switch You can install the HES-3106SFP-F2 switch on a flat surface. CAUTION To prevent any damage or failure of the Managed Switch, please DO NOT block the ventilation holes. Use the following guidelines when choosing a place to install the switch: ... -
Page 17: Connecting The Managed Switch To The Network
Installation 2.5 Connecting the Managed Switch to the Network Connect to Network The Managed Switch has 4 RJ-45 ports and 2 SFP ports on the front panel. All RJ-45 ports can be plugged with 10/100/1000Base-T UTP cable. The SFP ports 5-6 can be plugged with 100/1000Base-X SFP Fiber transceiver. -
Page 18: Removing Sfp Modules
Installation 2.6.2 Removing SFP Modules To disconnect an LC connector, use the following guidelines: 1. Press down and hold the locking clips on the upper side of the optic cable. 2. Pull the optic cable out to release it from the transceiver. 3. -
Page 19: Chapter 3. Operation
A built-in management module of Managed Switch provides users flexible interfaces to configure, control and monitor the system remotely and locally. To know the further information about the operation of Managed Switch, please refer to HES-3106SFP-F2 Network Management User’s Manual for the detailed management functions and required installation and operation procedures. -
Page 20: Chapter 4.Maintenance
Maintenance Maintenance This Managed Switch is easy to maintain. The procedures are suggested when you would like to identify faults, perform hardware replacement and do the firmware upgrade. 4.1 Fault Identification Identifying faults can greatly reduce the times required to find problem and solution. Users may perform local check or remote check to find the problems. -
Page 21: Remote Check
Maintenance 4.1.2 Remote Check Users may check the Managed Switch through SNMP manager remotely. For detailed procedures, please refer to the Network Management User’s Manual. 4.2 Hardware Replacement Procedures WARNING! The Managed Switch contains no user-serviceable parts. DO NOT, UNDER ANY CIRCUMSTANCES, open and attempt to repair it. - Page 23 18F-6, No.79, Sec.1, Xintai 5th Rd., XiZhi Dist., New Taipei City 221, Taiwan(R.O.C) Tel: +886-2-2698-9661 Fax: +886-2-2698-9662 Dir.Line:+886-2-2698-9201 www.ctsystem.com...
