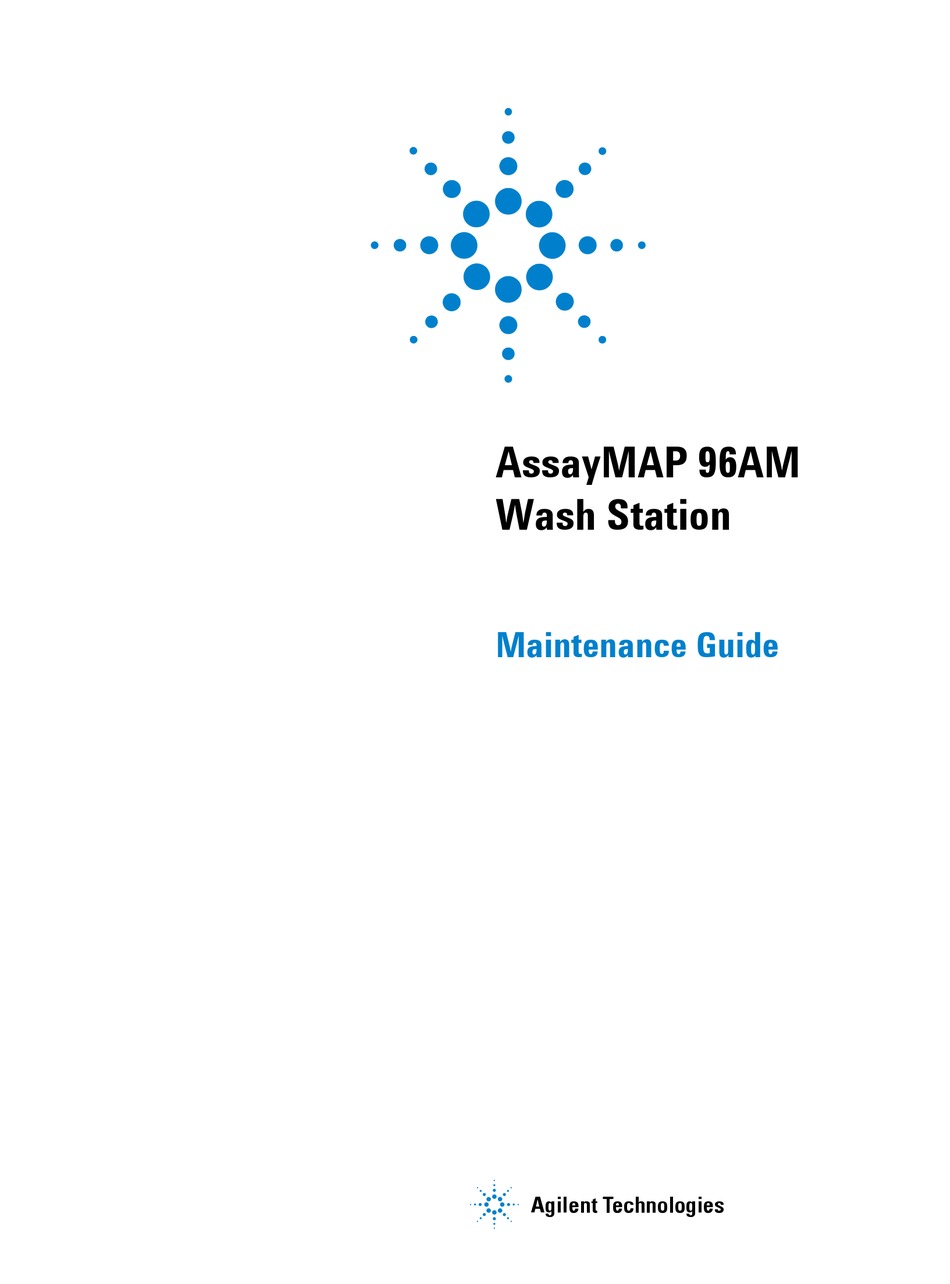

  • Page 1 AssayMAP 96AM Wash Station Maintenance Guide ...
  • Page 2 Further, to the max- A WARNING notice denotes a prior agreement and written consent from imum extent permitted by applicable Agilent Technologies, Inc. as governed by hazard. It calls attention to an law, Agilent disclaims all warranties, United States and international copyright...

  • Page 3: Table Of Contents

    AssayMAP 96AM Wash Station Maintenance Guide 96AM Wash Station Maintenance Guide This guide contains the following topics: • “About this guide” on page 2 • “About the 96AM Wash Station” on page 4 • “Required resources and workflow” on page 4 •...

  • Page 4: About This Guide

    Figure 96AM Wash Station The 96AM Wash Station is a component of the AssayMAP autofilling station, as the following figure shows. Figure AssayMAP autofilling station, including 96AM Wash Station, Pump Module, tubing, and carboys Source Waste AssayMAP 96AM Wash Station Maintenance Guide...
  • Page 5 From the Windows desktop, do one of the following: – Windows 10. Select Start > All Apps > Agilent Technologies > VWorks Knowledge Base. – Windows 7. Select Start > All Programs > Agilent Technologies > VVWorks > User Guides > VWorks Knowledge Base. • Go to www.agilent.com/chem/askb.

  • Page 6: About The 96Am Wash Station

    1 needle- nose pliers to remove the bad chimneys from the 96AM Wash Station • Small rubber pad or foam to protect your thumb when seating a new chimney in the 96AM Wash Station. AssayMAP 96AM Wash Station Maintenance Guide...
  • Page 7 Protein Sample Prep Workbench automatically. Start up the AssayMAP Bravo “Testing the 96AM Wash Platform and verify that all the Station” on page 16 chimneys work consistently. AssayMAP 96AM Wash Station Maintenance Guide...

  • Page 8: Determining If The Chimneys Are In Good Condition

    CAUTION To prevent potential equipment damage, ensure that the deck is clear of any obstacles before initializing the AssayMAP Bravo Platform. AssayMAP 96AM Wash Station Maintenance Guide...
  • Page 9 The device files are installed in the following default location: C:\VWorks Workspace\Workbench\Device Files Click No when the Would you like to initialize devices now? message appears. In the AssayMAP Bravo.dev tab, click Device diagnostics. The Bravo Diagnostics dialog opens. AssayMAP 96AM Wash Station Maintenance Guide...
  • Page 10 If the There appears to be a plate present error message appears, click Ignore and Continue to continue the homing process. When the Verify that it is safe to home the W-axis message appears, click Retry to continue homing the w- axis. AssayMAP 96AM Wash Station Maintenance Guide...
  • Page 11 Pump Reagent properties Reservoir mode Fill Pump speed (0–100%) Pump on time (1–600 s) 60 seconds How often Run second pump Second pump speed (0–100%) Use weigh station Click Execute command. The wash station empties. AssayMAP 96AM Wash Station Maintenance Guide...

  • Page 12: Uninstalling The 96Am Wash Station

    2- mm screws using a hex driver. Uninstall the bracket that secures the wash station to the platepad. Figure 96AM Wash Station secured with platepad brackets On the opposite side of the platepad, guide the wash station horizontal slot off the platepad inner bracket. AssayMAP 96AM Wash Station Maintenance Guide...

  • Page 13: Replacing Damaged Chimneys

    Orient the new plastic chimney so that the end with the little dot is at the top, and then insert the chimney into the hole in the wash station. Figure Dot on chimney oriented at top end for installation AssayMAP 96AM Wash Station Maintenance Guide...
  • Page 14 Ensure that the tops of the chimneys are level with each other. Figure Chimney dots oriented at top and tops of chimneys aligned Repeat steps 1 to 5 to replace any other defective chimneys. AssayMAP 96AM Wash Station Maintenance Guide...

  • Page 15: Installing The Wash Station And Connecting The Tubing

    Figure 96AM Wash Station installed at deck location 1 To install the wash station: At deck location 1, ensure that the outer side bracket (next to the crosshairs) is removed from the platepad. Figure Bracket next to platepad crosshairs AssayMAP 96AM Wash Station Maintenance Guide...
  • Page 16 Source Waste To ensure proper chimney filling and waste emptying characteristics for the 96AM Wash Station, ensure that you use the proper tubing combination for the Pump Module. See the following figure and table. AssayMAP 96AM Wash Station Maintenance Guide...
  • Page 17 Removes the particulates that can clog the chimneys in the wash station. filter 3- way Enables one tube to branch into two tubes at the input and output ports connector on the wash station. AssayMAP 96AM Wash Station Maintenance Guide...

  • Page 18: Testing The 96Am Wash Station

    Troubleshooting problems with the wash station Locate your problem in the following table and try the solution. If the problem persists after you try the solutions, contact Automation Solutions Technical Support. AssayMAP 96AM Wash Station Maintenance Guide...
  • Page 19 The tubing is The pump head clamp is Adjust the tubing clamp for the tube size. See the crushed or damaged too tight for the tube Agilent Pump Module User Guide. in the pump head. size. AssayMAP 96AM Wash Station Maintenance Guide...
  • Page 20 Agilent Technologies Maintenance Guide G5542-90004 Revision B, February 2018...
