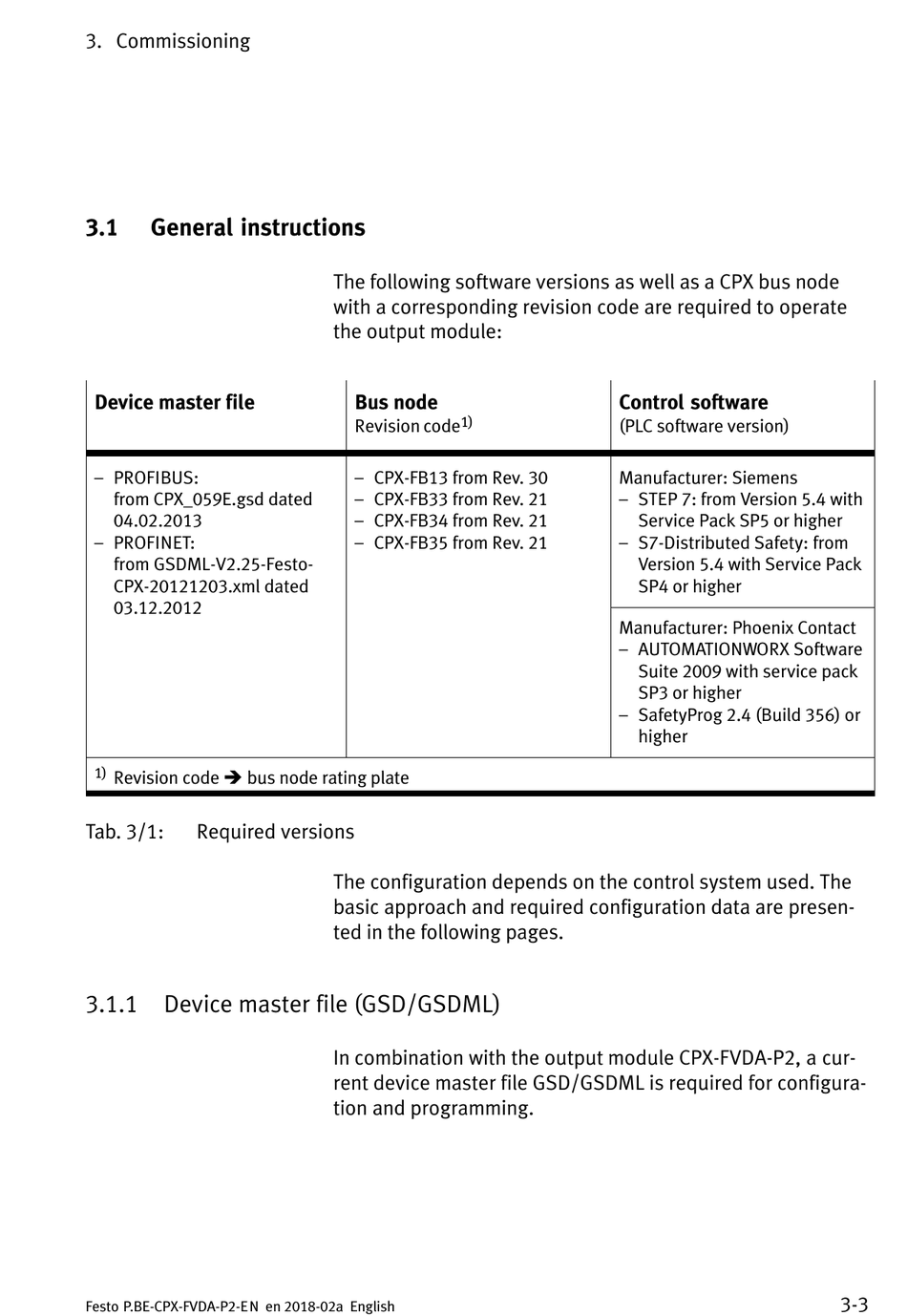

3. Commissioning

3.1

General instructions

Device master file
– PROFIBUS:
from CPX_059E.gsd dated
04.02.2013
– PROFINET:
from GSDML­V2.25­Festo­
CPX­20121203.xml dated
03.12.2012
Revision code è bus node rating plate
1)
Tab. 3/1: Required versions

3.1.1 Device master file (GSD/GSDML)

Festo P.BE-CPX-FVDA-P2-E N en 2018-02a English
The following software versions as well as a CPX bus node
with a corresponding revision code are required to operate
the output module:
Bus node
1)
Revision code
– CPX-FB13 from Rev. 30
– CPX-FB33 from Rev. 21
– CPX-FB34 from Rev. 21
– CPX-FB35 from Rev. 21
The configuration depends on the control system used. The
basic approach and required configuration data are presen­
ted in the following pages.
In combination with the output module CPX-FVDA-P2, a cur­
rent device master file GSD/GSDML is required for configura­
tion and programming.
Control software
(PLC software version)
Manufacturer: Siemens
– STEP 7: from Version 5.4 with
Service Pack SP5 or higher
– S7-Distributed Safety: from
Version 5.4 with Service Pack
SP4 or higher
Manufacturer: Phoenix Contact
– AUTOMATIONWORX Software
Suite 2009 with service pack
SP3 or higher
– SafetyProg 2.4 (Build 356) or
higher
3-3
