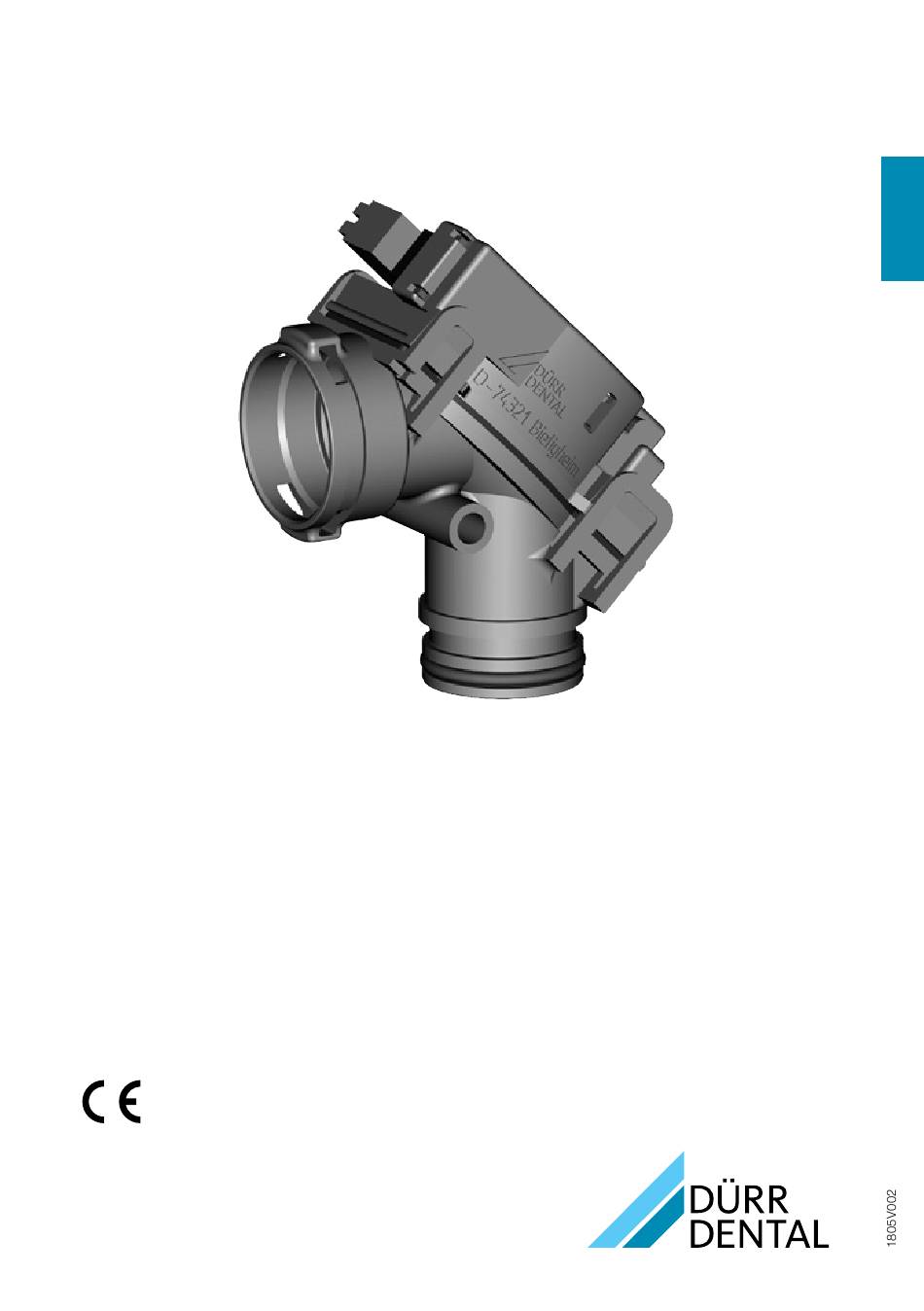

- Page 1 Station selection valve Installation instructions 7560100010L02 ...
-
Page 3: Table Of Contents
Contents Important information Installation 1 About this document 2 6 Requirements 9 Warnings and symbols 2 Setup options 9 Copyright information 2... -
Page 4: Important Information
Important information About this document Other symbols These symbols are used in the document and These installation instructions are a component on or in the unit: of the unit Note, eg specific instructions regarding Failure to comply with the specifications efficient and cost-effective use of the unit of these installation instructions, will void the warranty Dürr Dental will not assume Wear protective gloves... -
Page 5: Safety
Important information Safety 2.5 General safety notes Always comply with the specifications of all Dürr Dental has designed and constructed this guidelines, laws, and other rules and regula- unit so that when used properly and for the in- tions applicable at the site of operation for the tended purpose it does not pose any danger to operation of this unit people or property Nevertheless, residual risks... -
Page 6: Only Use Original Parts
Important information 2.10 Disposal NOTICE Negative effects on the EMC due to The unit may be contaminated Instruct non-authorised accessories the company disposing of the waste to Use only Dürr Dental parts or acces- take the relevant safety precautions sories specifically approved by Dürr Decontaminate potentially contaminated parts Dental before disposing of them If other accessories are used, note... -
Page 7: Product Description
Product description Overview 3.1 Scope of delivery The following items are included in the scope of delivery (possible variations due to country-spe- cific requirements and/or import regulations): Place selection valve .. 7560-500-XX Place selection valve ..75605000XX – Connection parts – Quick start instructions 3.2 Accessories The following items are required for operation of the device, depending on the application: DürrConnect20 system set 0700-700-50 Relay box 7560-565-50... -
Page 8: Technical Data
Product description Technical data Electrical data Rated voltage AC/DC Electrical frequency (for AC) 50/60 Rated power Type of protection IP 20 General data Max pressure mbar/hPa -200 Duty cycle 100 (S1) Dimensions (HxWxD) 76 x 66 x 30 Ambient conditions during storage and transport Temperature °C -10 to +60 Relative humidity <... -
Page 9: Type Plate
Product description 4.1 Type plate The type plate is located on the top of the valve Type plate 4.2 Evaluation of conformity This device has been subjected to conformity acceptance testing in accordance with the cur- rent relevant European Union guidelines This equipment conforms to all relevant require- ments 7560100010L02 1805V002... -
Page 10: Operation
Product description Operation Place selection valve closed The solenoid valve on the place selection valve is normally open Atmospheric pressure enters be- tween the valve cap and membrane through a small channel The membrane therefore rests on the valve body and interrupts the suction power Solenoid valve Valve membrane Place selection valve open... -
Page 11: Requirements
Installation Requirements Installation Prior to working on the device or in case 6.1 Setup options of danger, disconnect it from the mains – Installation in treatment units in dental surger- (e g pull the mains plug) ies or dental clinics – Installation outside the treatment unit in the 7.1 Installation example suction system (eg for 12 o'clock suction) Installation in the dry suction system:... -
Page 12: Installing The Place Selection Valve
Installation 7.3 Installing the place selection valve WARNING Infection due to contaminated treat- ment unit in the event of retrofit in- stallation Clean and disinfect the suction equip- ment before working on the unit Wear protective equipment when working (eg liquid-tight protective gloves, protective goggles, face mask) Locate a suitable installation point in the treat- ment unit –... -
Page 13: Circuit Diagram
Installation 7.5 Circuit diagram 24 V AC/DC Hose manifold Station selection valve Rinsing unit Spittoon valve X1 Cleaning button for switch control panel X3 Solenoid valve X4 Control line for suction unit X5 Power supply K1 Suction unit relay N2 Float sensor detection N3 Cleaning button detection sensor Suction machine relay in the treatment unit 7560100010L02 1805V002... -
Page 14: Commissioning
Installation Commissioning In many countries technical medical products and electrical devices are sub- ject to regular checks at set intervals The owner must be instructed accordingly Turn on the unit power switch or the main sur- gery switch Carry out an electrical safety check in accord- ance with applicable local regulations (eg the German Ordinance on the Installation, Opera- tion and Use of Medical Devices / Medizin-... -
Page 15: Troubleshooting
Troubleshooting Tips for service technicians Any repairs above and beyond routine maintenance must only be carried out by suitably quali- fied personnel or by one of our service technicians WARNING Infection due to contaminated unit Clean and disinfect the suction before working on the unit Wear protective equipment when working (e g impermeable gloves, protective goggles and mouth and nose protection) Fault Probable cause... - Page 20 Hersteller/Manufacturer: DÜRR DENTAL SE Höpfigheimer Str. 17 74321 Bietigheim-Bissingen Germany Fon: +49 7142 705-0 www.duerrdental.com info@duerrdental.com...
