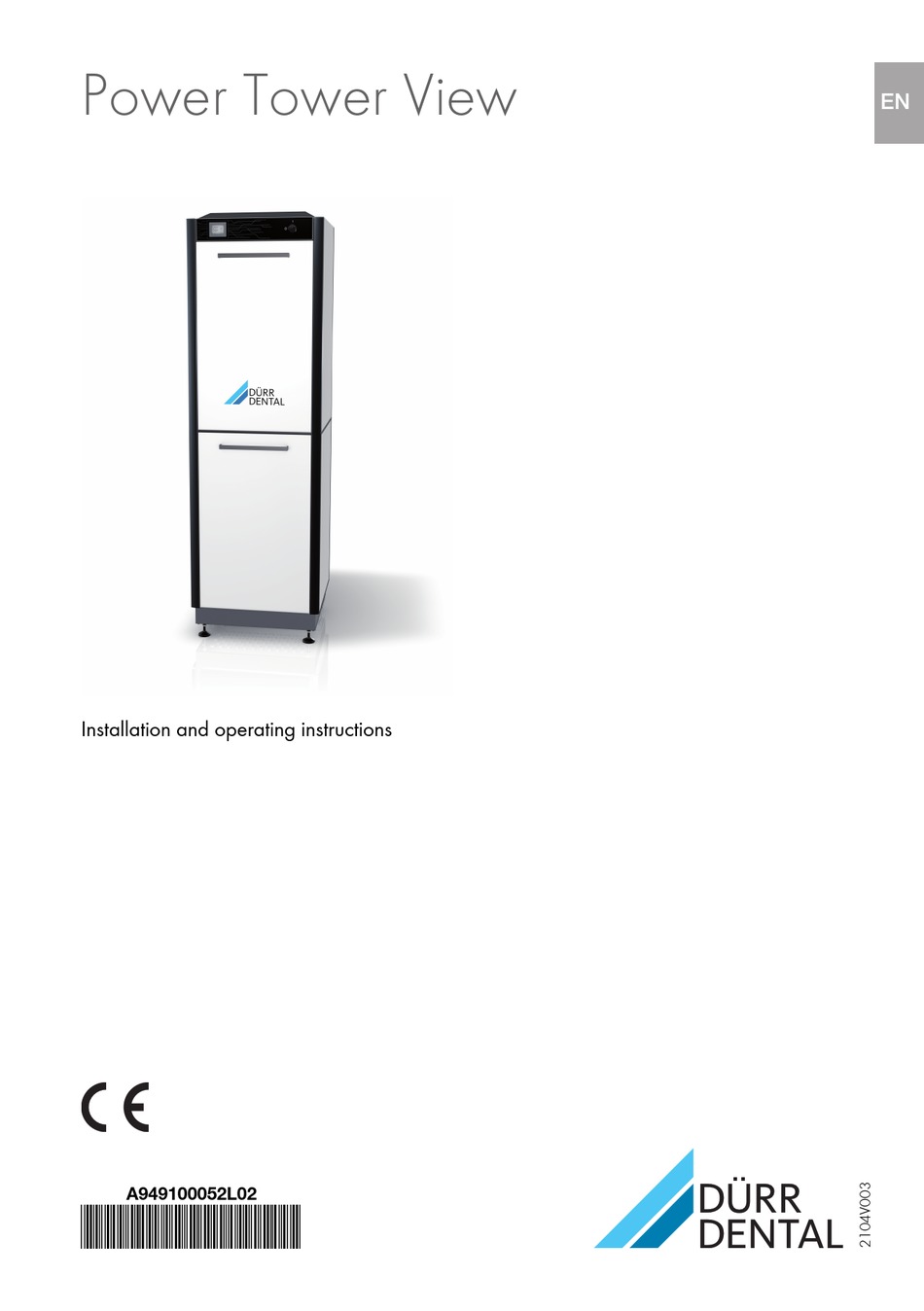

- Page 1 Power Tower View Installation and operating instructions A949100052L02 *A949100052L02*...
-
Page 3: Table Of Contents
Contents Contents Hose materials ....Installation and routeing of hoses and pipes ....Important information Information about electrical con- About this document . - Page 4 Contents Troubleshooting 12 Tips for operators and service techni- cians ......Appendix 13 Connection media plan ... . 14 Electrical connection plan .
-
Page 5: Important Information
These operating instructions are valid for Observe the operating instructions. Power Tower View, order number: A949444000, A949443000, A949454000, and A949453000. CE labelling Warnings and symbols Warnings... -
Page 6: Copyright Information
Important information Copyright information Safety All circuits, processes, names, software pro- Dürr Dental has designed and constructed this grams and units mentioned in this document are unit so that when used properly and for the inten- protected by copyright. ded purpose it does not pose any danger to The Installation and Operating Instructions must people or property. -
Page 7: Electrical Safety
Important information Electrical safety Comply with all the relevant electrical safety ❯ regulations when working on the unit. Never touch the patient and unshielded plug ❯ connections on the device at the same time. Replace any damaged cables or plugs immedi- ❯... -
Page 8: Product Description
Sintered filter ....1650-101-00 cific requirements and/or import regulations): Power Tower View ....A949444000 To configure the required filters or filter –... -
Page 9: Technical Data
Product description Technical data Electrical data Rated voltage 400, 3N~ Frequency Protection class Type of protection IP 20 General technical data Dimensions (W x H x D) 640 x 2080 x 610 Pressure tank volume Delivery at 5 bar (0.5 MPa) l/min Pressure dew point at 7 bar (0.7 MPa) * °C... -
Page 10: Ptv A949444000 And A949443000 With Second Duo Unit And Ca 4
Product description Network connection ³ CAT5 Cable type CAN bus Connector RJ45 ³ CAT5 Cable type Ambient conditions during storage and transport Temperature °C -25 to +55 Relative humidity Ambient conditions during operation Temperature °C +10 to +40 Relative humidity Height above sea level <... -
Page 11: Type Plate
Product description Type plate The type plate is located at the bottom right of the housing. A949100052L02 2104V003... -
Page 12: Declaration Of Conformity
Höpfigheimer Str. 17 74321 Bietigheim-Bissingen Germany Name of product: Power Tower View We hereby declare that the above product meets all applicable requirements of the directives listed below: – Machinery directive 2006/42/EC in its current version. Name of the person with responsibility for compiling all technical documentation: F. -
Page 13: Operation
Product description Dry suction system Operation Wet suction system Main power switch Drying unit Suction unit Main power switch Condensation separator Drying unit Compressor unit Suction unit Pressure tank Pressure equalisation tank Touch display Compressor unit Pressure tank Touch display A949100052L02 2104V003... -
Page 14: Functional Description

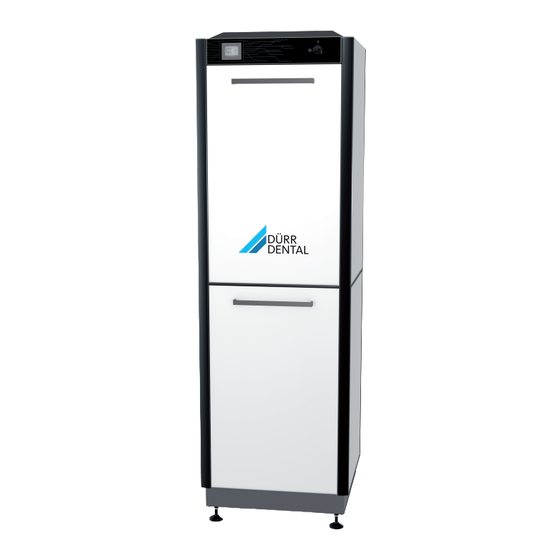

Product description Functional description The Power Tower View combines compressed air generation, suction and amalgam separation in one housing. The housing is insulated, ensuring an appropriate level of soundproofing. The unit is operated via a touch display and indicates the various parameters of the individual components. -
Page 15: Assembly
Assembly Plastic hoses will display signs of ageing Assembly over time. Therefore, they should be inspected regularly and replaced as nec- essary. Only qualified specialists or employees The following types of hoses must not be trained by Dürr Dental are permitted to used: install, connect and start using the unit. -
Page 16: Information About Connecting Cables
Assembly Information about connecting Installation cables Combining devices safely The diameter of the connections depends on the Take care when connecting units together or to current consumption, length of line and the ambi- parts of other systems as there is always an ele- ent temperature of the unit. - Page 17 Assembly Connect the exhaust air hose and suction hose Place the unit in the correct position and align. ❯ ❯ to the floor connection. Observe planning template 9000-619-09. ≤100 A949100052L02 2104V003...
-
Page 18: Mounting The Upper Part Of The Cabinet
Assembly Mounting the upper part of Position the compressor unit in the unit. ❯ the cabinet Mount the compressed air module on the suc- ❯ tion module using four screws. Mount the compressor unit on the retaining ❯ plate using four nuts. Also mount the second compressor unit ❯... -
Page 19: Install The Drying Unit
Assembly Push on and secure the noise insulation on the Insert nozzle, see installation instructions ❯ ❯ suction manifold of the compressor unit. 9000-610-49/01. Insert the filter and close the drying unit with the cover. Install the drying unit Install the drying unit. ❯... - Page 20 Assembly Connect the drying unit to the compressed air Connect the drying unit to the pressure tank. ❯ ❯ hose coming out of the cooler. A949100052L02 2104V003...
-
Page 21: Install The Amalgam Separator (Optional)
Position the amalgam separator in the lower ❯ part of the cabinet. Position the amalgam separator correctly in the ❯ Power Tower View. Plug the mains cable into the mains socket on ❯ the BUS adapter. Remove the electronic hood. -
Page 22: Commissioning
Assembly Ensure that the electrical connections to the Commissioning ❯ mains power supply are established in accord- Perform an electrical safety check prior to ance with current valid national and local regu- commissioning. lations and standards governing the installation of low voltage units in medical facilities. Switch on the main power switch. - Page 23 Assembly – Unit connected to the network – Current monitoring software installed on the computer Combining devices safely – The overall safety of the unit and its main per- formance features are independent of the net- work. The device is designed for operation independent of a network.
-
Page 24: Usage
Usage to switch to the detail view for the ❯ Usage alarm texts. Calling up messages on the Operating the touch touch screen screen Messages are divided into the following catego- ries: NOTICE Fault Unit will no longer function. When the error has been Damage to the touch screen due to remedied, it may be neces- incorrect handling... -
Page 25: 10 Operation
Usage 10 Operation 10.1 Switch on the unit. Switch on the unit at the main power switch. ❯ 10.2 Device information Use the menus Unit information > Unit data and Unit information > Unit usage data to call up information including: –... -
Page 26: Maintenance
Usage 11 Maintenance Prior to working on the unit or in case of danger, disconnect it from the mains. 11.1 Compressor unit and drying unit WARNING Risk of infection due to burst filters Particles enter the compressed air network and can therefore enter the mouth of the patient. Replace filters in accordance with the maintenance schedule. - Page 27 Usage Insert a new filter. ❯ Replacing the air intake filter Replace the filter housing and close. ❯ Switch off the device. ❯ Pull off the noise reducer from the air intake fil- ❯ ter. Remove the air intake filter. ❯...
-
Page 28: Troubleshooting
Troubleshooting Troubleshooting 12 Tips for operators and service technicians Any repairs exceeding routine maintenance may only be carried out by qualified personnel or our service. Prior to working on the unit or in case of danger, disconnect it from the mains. Error Possible cause Remedy... -
Page 29: Appendix
Appendix Appendix 13 Connection media plan PC board mit / with CA 4 A949100052L02 2104V003... -
Page 30: 14 Electrical Connection Plan
Appendix 14 Electrical connection plan 14.1 Version 400 V, 3N~ L1 L2 PE L3 N U1 V1 W1 PE U1 V1 W1 PE PE U V W L N PE A949100052L02 2104V003... -
Page 31: 15 Menu Structure
Appendix 15 Menu structure 15.1 Settings Level 1 Level 2 Level 3 Level 4 Operator Access level Administrator Service Technician (PIN) Device data Device Information Device usage data German (DE) System Settings Language English (EN) ... Date Time/Date Time Time zone DHCP IP address Network... - Page 32 Appendix Product name Order number (REF) Serial number (SN) o Visual inspection of the packaging for any damage o Unpacking the medical device and checking for damage o Confirmation of the completeness of the delivery o Instruction in the proper handling and operation of the medical device based on the operating instructions Notes: Name of person receiving instruction:...
- Page 36 Hersteller / Manufacturer: DÜRR DENTAL SE Höpfigheimer Str. 17 74321 Bietigheim-Bissingen Germany Fon: +49 7142 705-0 www.duerrdental.com info@duerrdental.com...
