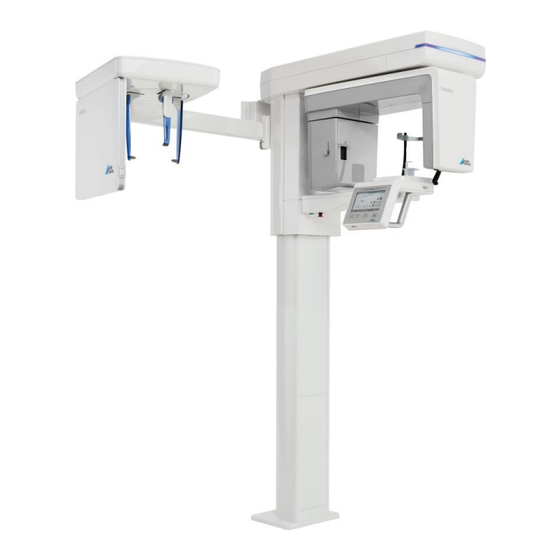

Durr Dental VistaVox S Service Manual
  1. Manuals
  2. Brands
  3. Durr Dental Manuals
  4. Dental equipment
  5. VistaVox S
  6. Service manual

Durr Dental VistaVox S Service Manual

Hide thumbs Also See for VistaVox S:
Table of Contents

Advertisement

Quick Links

VistaVox S (Ceph)
Service manual
DÜRR DENTAL
Doc. no. 4174205 / Revision 2.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VistaVox S and is the answer not in the manual?

Questions and answers

Related Manuals for Durr Dental VistaVox S

Summary of Contents for Durr Dental VistaVox S

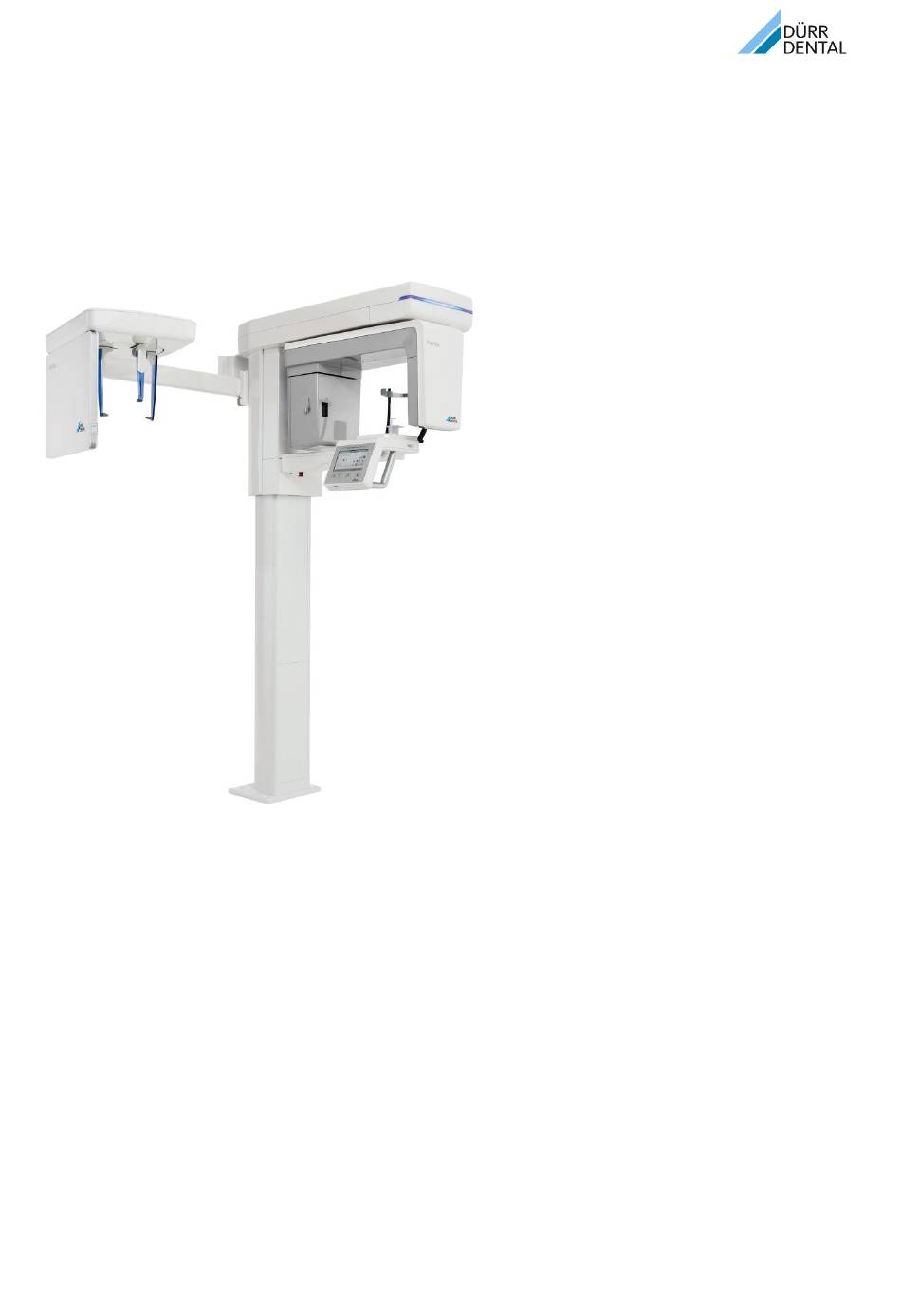

  • Page 1 VistaVox S (Ceph) Service manual DÜRR DENTAL Doc. no. 4174205 / Revision 2.2...

  • Page 2: Table Of Contents

    Further documentation ........................... 4 Technical data and additional information about installation of the unit ..........5 1.4.1 Unit dimensions ............................5 1.4.2 Technical data for VistaVox S ........................8 1.4.3 Assembly instructions ..........................8 1.4.4 (Remote) Exposure switch .......................... 8 1.4.5...
  • Page 3 Service manual VistaVox S Common Commands ........................... 44 4.3.1 Output device parameters ........................44 4.3.2 Output device errors ..........................44 4.3.3 Output tube temperature ........................44 4.3.4 Verification of the transport mode ......................44 4.3.5 Manual exposure switch release check ....................44 4.3.6...
  • Page 4 Service manual VistaVox S 10.9 Unusual running noises when opening or closing the temple supports ........... 79 10.10 In the Service Tool, the left and right edges remain at 0 px during calibration ......... 79 10.11 In the Service Tool the tilting of the Ceph collimator is outside the tolerance ........81 10.12...

  • Page 5: Background

    1 Background 1.1 About this manual This manual describes the procedures for calibrating the VistaVox S / VistaVox S Ceph and ProVecta 3D Prime / ProVecta 3D Prime Ceph units. It also contains background information and instructions for optimising, servicing, fault finding and repairing the systems.

  • Page 6: Technical Data And Additional Information About Installation Of The Unit

    70 is available for planning a VistaVox mounting. 1.4.1 Unit dimensions Fig. 1 Height measurements in mm (apply to VistaVox S and VistaVox S Ceph) The hole spacing shown in Fig. 2 Hole spacing for wall bracket in mm on page 6 applies to both the upper wall bracket (included in the scope of delivery) and to the optional lower wall bracket.
  • Page 7 Short holder: 1530 – Long bracket: 1600 Short holder: 1190 – Long bracket: 1260 Short holder: 310 Long holder: 380 Fig. 4 Width and depth measurements for VistaVox S in mm Doc. no. 4174205 / Revision 2.2 Page 6 of 142...
  • Page 8 Service manual VistaVox S 1615±12 1251±12 415±12 1212 1940 Fig. 5 Width and depth measurements for VistaVox S Ceph in mm Doc. no. 4174205 / Revision 2.2 Page 7 of 142...

  • Page 9: Technical Data For Vistavox S

    • Red/green wire -> 24V DC LED yellow If you wish to connect an existing (two-pole) remote exposure switch to the VistaVox S, this can be done using the connection on the PCB A07 (X10 first generation, X7 second generation).

  • Page 10: Connecting An External Status Led

    Service manual VistaVox S 1.4.5 Connecting an external status LED As described in 1.4.4 (Remote) Exposure switch on page 8, the included exposure switch has 2 LEDs for visually indicating the status. However, it is possible to tap the signal directly, without needing to disconnect the cable of the exposure switch.
  • Page 11 Service manual VistaVox S Lamp X11/X12/X13 L1 (max. 250 VAC at max. 1.5 A) Fig. 6 Switching an external lamp A07 – second generation System ready for operation (LED status: blue) System ready for exposure (LED status: green) System generating an X-ray image (LED status: orange) Fig.

  • Page 12: Connecting Diagram For A07 - First And Second Generation

    Service manual VistaVox S 1.4.5.3 Door contact circuit A door contact can be linked to the unit if required. This is done with the two-pole connector block X6 on the PCB A07 (first generation) or X8 on the PCB A07 (second generation).

  • Page 13: Menu Structure For The Touch Display

    Service manual VistaVox S 1.4.7 Menu structure for the touch display The touch display can be used to adjust various settings on the unit. The menu structure below shows all adjustment options that can be accessed under the Service Technician access level.
  • Page 14 Service manual VistaVox S 1.4.7.3 Ceph lateral size Possible values: Normal (standard) or Full. This defines how far back the irradiation and recording of the X-ray image extend to the rear part of the patient's skull. Here, the X-ray image in Normal mode effectively records around 19 cm. In Full mode this is around 24.5 Ceph Normal (approx.

  • Page 15: Reconstruction Computer / Vistasoft Installation

    For the reconstruction of CBCT data sets, the VistaVox module from VistaSoft places greater demands on the computer hardware than VistaSoft. The hardware requirements can be found in the VistaVox S installation instructions or the document System Requirements for Computer Systems – order number: 9000-618-148.

  • Page 16: Reconstruction Pc (Dell) Orderable By Dürr Dental

    Service manual VistaVox S 2.2.1 Reconstruction PC (DELL) orderable by Dürr Dental Dürr Dental offers an optional reconstruction PC for the VistaVox system, which is tested and recommended by Dürr Dental. It can be ordered directly from Dürr Dental with the order number: 2210201057.

  • Page 17: Anygrabber

    Service manual VistaVox S (from the download centre of duerrdental.com or duerrdental.net). Independently of this, the following are important factors for successful reconstruction: At least 4 GB internal memory Latest drivers installed The amount of local memory required by the reconstruction computer is generally low.

  • Page 18: Software Requirements For Reconstruction Computer

    Service manual VistaVox S 2.3 Software requirements for reconstruction computer To ensure trouble-free operation, it is important to adjust the energy saving options both in the BIOS and in Windows (see installation instructions). If you are using Windows 10, it is especially important that the registry value for EnableLUA be set to 0 (see 2.3.3 Configuring Windows 10 security settings (enableLUA) on page 18).

  • Page 19: Antivirus Settings In Windows

    Service manual VistaVox S 2.3.2 Antivirus settings in Windows The following paths must be excluded from scanning by your locally installed antivirus program (this is recommended for all Dürr Dental installations): C:\Program Files\Duerr C:\ProgramData\Duerr 2.3.3 Configuring Windows 10 security settings (enableLUA) In Windows 10 systems, the enableLUA entry in the registry must be set to 0.
  • Page 20 Service manual VistaVox S Fig. 14 Fast start-up settings for Windows 10 Doc. no. 4174205 / Revision 2.2 Page 19 of 142...

  • Page 21: Vistasoft Installation

    Service manual VistaVox S 2.4 VistaSoft installation Note This manual only covers VistaVox specific matters relating to the installation of VistaSoft. Details concerning installation procedures can be found in the VistaSoft manual. VistaVox can be operated under VistaSoft from version 2.0. As a rule, however, we always recommend using the latest version of VistaSoft.
  • Page 22 Service manual VistaVox S Note There is no point in installing the VistaVox module on other computers in the network if they are not reconstruction computers. Even without this module, 3D volumes can still be opened at any time by all computers in the network.
  • Page 23 Service manual VistaVox S Entry in Device Manager when using Entry in Device Manager when using AnyGrabber (for first-generation Framegrabber 3 (usually for second- VistaVox) generation VistaVox) Fig. 17 Device Manager - with AnyGraber Fig. 18 Device Manager - With Framegrabber 3 Here, the COM Port for CONTACT-US Virtual Serial Port or for Flectron PCI Serial Driver is assigned by Windows and may differ for each installation.

  • Page 24: Permissible Areas Of Application Reconstruction Pc

    Service manual VistaVox S The VistaVox module has its own version number. Together with the installed VistaSoft version, this constitutes a tested and approved unit. Although it is possible, in principle, to update the VistaVox module to a higher version, this must only be done in exceptional cases (see 11.4.1 Performing a VVSP update on page...

  • Page 25: Connecting The Device To The Reconstruction Computer

    Service manual VistaVox S 2.6 Connecting the device to the reconstruction computer Communications between the reconstruction computer and the device are carried via a fibre-optic cable. Instead of the 10 m cable supplied with the device, a 5 m or 20 m cable may be used as...

  • Page 26: Connection To Framegrabber 3

    Service manual VistaVox S 2.6.2 Connection to Framegrabber 3 As described under 2.2.6 Framegrabber 3 on page 16, Framegrabber 3 can be used both for the first and second-generation versions of VistaVox . When used with a second-generation VistaVox unit, the fibre-optic cable can be...

  • Page 27: Integration In Vistasoft

    Service manual VistaVox S 2.7 Integration in VistaSoft Immediately after installation of VistaVox and installation of the reconstruction computer, attempts to directly link to VistaSoft usually fail. This is not a malfunction. Before a link can be established, VistaSoft needs to be told how the connection between the software and the VistaVox is to take place (i.e.
  • Page 28 Service manual VistaVox S Fig. 22 Activating GPU acceleration If a computer does not have an active GPU (e.g. onboard graphics card), VistaSoft will render the volume using the CPU. This is certainly possible, but the CPU will have to be quite powerful in order to produce a smooth and efficient rendering.
  • Page 29 Service manual VistaVox S Fig. 23 NVIDIA Control Panel - Program Settings 3. Click Add to open the selection dialog for the latest programs. Now use Browse… to navigate to C:\Program Files\Duerr\VistaSoft\Binaries, there select the Duerr.DigitalDiagnostics.Applications.VistaSoft.WorkstationService.exe file and confirm your selection by clicking Open Fig.
  • Page 30 Service manual VistaVox S Fig. 25 NVIDIA Control Panel - Selecting the high-performance NVIDIA processor 5. Finish changing your settings by clicking Apply Fig. 26 NVIDIA Control Panel - Applying the settings Doc. no. 4174205 / Revision 2.2 Page 29 of 142...
  • Page 31 Service manual VistaVox S This entire process must be executed for both Duerr.DigitalDiagnostics.Applications.VistaSoft.WorkstationService.exe and for VistaSoft.exe. You will find VistaSoft.exe under C:\Program Files\Duerr\VistaSoft\Clients Fig. 27 File path to VistaSoft.exe Fig. 28 Distribution of resources for 3D acceleration on page 31 again summarizes the three possible states for a system with two GPUs.
  • Page 32 Service manual VistaVox S State Behaviour View Fig. 28 Distribution of resources for 3D acceleration Doc. no. 4174205 / Revision 2.2 Page 31 of 142...

  • Page 33: Service Tool

    Service manual VistaVox S 3 Service Tool 3.1 Start-up and range of functions The Service Tool software was developed to perform a wide range of device calibration tasks. It is an integral part of the VistaSoft installation (version 2.0 and higher) in combination with the VistaVox module.
  • Page 34 Table 3 Options for launching the Service Tool The most important functions of the Service Tool are: Initial calibration of the VistaVox S / VistaVox S Ceph Recalibration of various components Calibrations required in association with device repairs...

  • Page 35: Method Of Operation

    Service manual VistaVox S 3.0.10 New functions over 3.0.1: Improved collimator calibration (time advantage due to simultaneous movement) Bug fixes over 3.0.1: Jumping within the collimator calibrations possible Missing images in the Instructions area are displayed correctly Table 4 Functional overview of the Service Tool in combination with VistaSoft version 3.2 Method of operation...
  • Page 36 Service manual VistaVox S Fig. 31 Overview of workflows in the Service Tool The main window of the Service Tool can be divided into three columns: The left-hand column shows the operation steps that make up the calibration workflow and that are carried out in the given sequence.
  • Page 37 Service manual VistaVox S Operation Operation Input and steps results instructions Fig. 32 Overview of Service Tool The Service Tool serves as a testing and calibration aid that takes the user step-by-step through the required workflow. The results of an image acquisition are, for the most part, evaluated automatically by the Service Tool.
  • Page 38 Service manual VistaVox S Warning A distinction is made between testing steps and calibration steps. While testing steps make no changes to the configuration, calibration steps directly alter the active calibration. Calibration steps exert a direct effect on the system. This means that if the...

  • Page 39: Settings In The Service Tool

    Service manual VistaVox S 3.3 Settings in the Service Tool The gears icon found in the upper right-hand corner of the Service Tool is used to open the general program settings. Fig. 33 Service Tool gears and help icons Fig. 34 Service Tool settings Doc.
  • Page 40 Service manual VistaVox S Function Description Language Selection of the display language Logging path Path specification for internal log files. The log files here are not the kind required by service technicians (no change recommend). Actual log information (that can provide help in identifying the cause of errors) is automatically transferred to VistaSoft by the Service Tool.

  • Page 41: First Callibration Procedure And Setup After Initial Installation

    VistaVoxPlugin\ VistaVoxPlugin\ VistaVoxServiceTool VistaVoxServiceTool 2. Run ServiceTool initial 2. Run ServiceTool.lnk installation.lnk 3. Load the workflow VistaVox S 2. First time calibration Ceph first calibration 1. Device connection (automatically 2. First time calibration disable transport mode) 1. Device connection (automatically 2.

  • Page 42: Test Phantom / Calibration Case

    Service manual VistaVox S 3.5 Test phantom / calibration case A basic differentiation must be made between: Initial calibration Extended calibration / repair No special test phantoms are required for the initial calibration. Factory pre-calibration includes all of the calibration data needed for the unit. Only those deviations that arise due to transport and storage (primarily affecting the collimators) need to be checked and adjusted during the initial calibration.

  • Page 43: Service Device Commands (Terminal)

    Service manual VistaVox S 4 Service Device Commands (Terminal) 4.1 Call and range of functions The Terminal is a tool that can be used to send administrative commands directly to the VistaVox. It can be downloaded free of charge from the Internet and is not part of the Service Tool or VistaSoft.
  • Page 44 Service manual VistaVox S After a successful connection, ‘Connected’ is displayed at the bottom of the program and the program is now ready to transmit commands to the VistaVox via the input line. The commands are set uniformly in square brackets. Underscores separate the command structure and its values.

  • Page 45: Common Commands

    Service manual VistaVox S 4.3 Common Commands 4.3.1 Output device parameters Output of all parameters on the A01 board (MCU board) (including firmware version): [SPM_PVER] 4.3.2 Output device errors If the device registers an internal error (for example, during device initialization), it can be read out via this command.

  • Page 46: Overview Of Test Objects And Phantoms

    Service manual VistaVox S 5 Overview of test objects and phantoms This section describes the individual components required for quality assurance (acceptance and consistency check) and for advanced calibration operations (e.g. for repairs). 5.1 Quality assurance (acceptance and consistency check) 5.1.1 Panoramic...

  • Page 47: Cbct

    Service manual VistaVox S 2207-021- Spherical Phantom for checking the 2D Needed for every phantom slice position. acceptance check to ensure that the slice position is OK. Is also required for advanced calibrations. 22071000 Primary absorber Absorber set with 1.0 and 0.8...
  • Page 48 Service manual VistaVox S 22102003 CBCT 161 test Corresponds to the test This test phantom phantom, element of article 2210200527, is not so much AC+CC but with an absorber both intended for the above and below the test active element so that it can fully...

  • Page 49: Advanced Calibration

    Service manual VistaVox S 5.2 Advanced calibration 5.2.1 Panoramic unit Order Name Description Meaning Part of test number phanto m set 2210200 2207-021- Spherical Phantom for checking the 2D Needed for every acceptance phantom slice position. check to ensure that the slice position is OK.

  • Page 50: Cbct Unit

    Service manual VistaVox S 5.2.2 CBCT unit Order Name Description Meaning Part of number test phanto m set 2210200 22102003 Adjustment unit Required as a base for It is the basis for all multiple phantoms and test advanced CBCT phantoms calibrations.
  • Page 51 Service manual VistaVox S 22102004 Spherical Required for checking or Needed for every phantom recalibrating the CBCT type of CBCT geometry. geometry. Checking can be done with the adjustment unit (2210200371) alone. Recalibration further requires the stand (9000100643) and the locating pins (2210200425).
  • Page 52 Service manual VistaVox S 22102005 Phantom spacer Needed for bringing other Primarily needed in phantoms (2210200512 and combination with 2210200513) to a required 2210200513. height. 22102004 Locating pin (2 These pins help to better They are only each) position the adjustment unit...

  • Page 53: Electronic Design

    Service manual VistaVox S 6 Electronic design 6.1 Circuit diagram – generation 1 Fig. 37 Electronic configuration – generation 1 – overview and column in detail Doc. no. 4174205 / Revision 2.2 Page 52 of 142...
  • Page 54 Service manual VistaVox S Fig. 38 Electronic configuration – generation 1 – details of patient arm, C-shaped arm, cross member Doc. no. 4174205 / Revision 2.2 Page 53 of 142...

  • Page 55: Circuit Diagram - Generation 2 (Incl. Ceph)

    Service manual VistaVox S 6.2 Circuit diagram – generation 2 (incl. Ceph) Fig. 39 Electronic configuration – generation 2 – overview and column in detail Doc. no. 4174205 / Revision 2.2 Page 54 of 142...
  • Page 56 Service manual VistaVox S Fig. 40 Electronic configuration – generation 2 – details of patient arm, C-shaped arm, cross member Doc. no. 4174205 / Revision 2.2 Page 55 of 142...
  • Page 57 Service manual VistaVox S Fig. 41 Electronic configuration – generation 2 – details of column carriage and + Ceph arm Doc. no. 4174205 / Revision 2.2 Page 56 of 142...

  • Page 58: A01 / Mcu Board

    Service manual VistaVox S 6.3 A01 / MCU board The MCU board can be considered as the electronic mainboard. It maintains a connection to most of the electronic components in order to control and monitor them. The MCU board contains the primary unit firmware. This controls, for example, motor behaviour during image acquisition as well as the beam localisers, correction values etc.

  • Page 59: A03 / Inverter Board

    Service manual VistaVox S 6.5 A03 / Inverter board The inverter board primarily controls the X-ray tube. It supplies the tube with 380 V DC and monitors the tube during X-ray image acquisition. The inverter board has no configurable software.

  • Page 60: Sensor (Incl. Board)

    Service manual VistaVox S 6.9 Sensor (incl. board) In itself, the sensor incl. board is an independent unit. Replacing it, however, results in the need for very extensive calibration of the sensor and the symmetry. 6.10 X-ray tube (incl. board) The X-ray tube (incl.

  • Page 61: Quality Assurance

    Service manual VistaVox S 7 Quality assurance The performance of an acceptance/consistency check within VistaSoft Inspect is always recommended as a yardstick for assessing and assuring image quality. Nonetheless, this section will examine some problems that may arise when acquiring patient images and offer approaches for solving them.
  • Page 62 Service manual VistaVox S Fig. 43 Pano - collimator maladjusted As the sensor is very sensitive and the software always tries to produce high-contrast images of the structures, a maladjustment of the collimator does not reveal itself directly. The image shows (as in the case of insufficient dosage) an increased level of image noise and in some cases increased brightness.
  • Page 63 Service manual VistaVox S performed using the Service Tool (this can also be done if the cause of the problem is not clear, since calibration does not take very long and merely requires a plate with 1 mm of copper). To carry out calibration you need to execute the Sensor brightness calibration (CBCT + Pano) workflow in the Service Tool.
  • Page 64 Service manual VistaVox S Fig. 47 Pano - Canine laser too far back The entire jaw (and especially the anterior tooth area) appears pushed together. Even though the image is sharp (thanks to the S-Pan technology), this a very likely a case of faulty positioning.

  • Page 65: Cbct

    Service manual VistaVox S Here we have the opposite problem seen in Fig. 47 Pano - Canine laser too far back only shown in reverse. The cause here, however, lies primarily in the faulty positioning of the patient. 7.2 CBCT Fig.
  • Page 66 Such a clear ring-like feature points to the faulty positioning of the collimator. The device has to be recalibrated following the steps described for initial calibration. No phantoms are required for this. Perform all of the steps described for "VistaVox S initial calibration". Doc. no. 4174205 / Revision 2.2...
  • Page 67 Service manual VistaVox S Fig. 51 Distortions in the volume representation – axial Fig. 52 Distortions in the volume representation – axial representation with implant representation without metal The volume reveals distortions throughout the entire image. There are three possible causes for this effect: 1.
  • Page 68 Service manual VistaVox S Fig. 53 Standard quality for full CBCT volume Fig. 54 Sensor calibration defect If all volumes show a light or dark area (usually a streak) at exactly the same location, this indicates a defect in the sensor calibration. This can be remedied through recalibration.

  • Page 69: Handling Kv Measurement And Retracting The X-Ray Tube

    Service manual VistaVox S 8 Handling kV measurement and retracting the X-ray tube 8.1 Retracting (shooting) the tube After a long standstill of the X-ray system or when commissioning an X-ray machine from the stock, it is advisable to "shoot in" the X-ray tube again before operation. To prevent damage to the tube, we recommend performing this procedure after 6 months of standstill at the latest.

  • Page 70: Testing The Tube Voltage (Kv)

    Service manual VistaVox S 8.2 Testing the tube voltage (kV) The easiest way to measure the kV level is during a CBCT acquisition. The radiation field is here large enough to reliably fill the entire surface of the measuring probe. Moreover, no change to the kV value occurs during the CBCT acquisition.

  • Page 71: Checklists

    Fig. 56 Width and depth specification VistaVox S incl. operation mm For the VistaVox S Ceph, the effective width corresponds to the sizes shown in Fig. 5 Width and depth measurements for VistaVox S Ceph in mm on page 7 (patient stands inside the Ceph unit, operator stands between Ceph unit and main unit).
  • Page 72 Service manual VistaVox S Wall condition + floor condition checked (if necessary, second wall bracket □ ordered in case of unstable walls or lack of possibility to screw into the floor). Manpower planned (min. 2 persons, for assembly of cross beam + C-arm 3 □...

  • Page 73: Setting Up The Reconstruction Computer

    Service manual VistaVox S 9.2 Setting up the reconstruction computer Activity Checked □ BIOS settings adjusted. Under Windows 7: User Account Control setting set to the lowest level. □ Under Windows 10: Registry entry enableLUA set to 0. □ Under Windows 10: Windows fast start-up disabled.

  • Page 74: 3-Year Maintenance

    Service manual VistaVox S 9.3 3-year maintenance Activity Checked □ Functional test of the display. Are all symbols displayed? □ Functional test of the exposure button. □ Do the various status LEDs light up? Check that the head supports mechanism functions correctly. Are the □...

  • Page 75: Dguv (Bgv A3) Measurement

    Service manual VistaVox S 9.4 DGUV (BGV A3) measurement The following measuring points are to be checked for each new installation. During repair, it is up to the electrical technician to define further suitable measuring points. Test in accordance with EN 62353 / VDE 0751: Protective conductor testing.

  • Page 76: Troubleshooting

    5. Make sure that the Service Tool is not open in the background (and blocking access to the device) 6. Start Service Tool with the "VistaVox S initial calibration" workflow and execute the first step, "Establish connection" Doc. no. 4174205 / Revision 2.2...

  • Page 77: Computer Displays A Blue Screen

    Service manual VistaVox S 10.3 Computer displays a blue screen Situation The computer displays a blue screen when shutting down and/or restarting. Procedure 1. Observe the hardware requirements of the computer 2. Insert the frame grabber card into a different slot 3.

  • Page 78: Device Makes Clattering Noise After Start Position Is Pressed On The Touchscreen

    The unit was probably just recently installed and not yet calibrated. The transport mode will be deactivated during calibration. Procedure 1. Start the Service Tool 2. Execute the VistaVox S initial calibration workflow 3. Restart device Doc. no. 4174205 / Revision 2.2 Page 77 of 142...

  • Page 79: Reconstruction Aborts During Measurement Of Cbct Dose At The Image Receiver

    Service manual VistaVox S 10.6 Reconstruction aborts during measurement of CBCT dose at the image receiver Situation After generating an "empty" image in which only the measuring probe was placed at the image receiver, the reconstruction of the volume aborts in VistaSoft (or VistaSoft Inspect).

  • Page 80: Unusual Running Noises When Opening Or Closing The Temple Supports

    Service manual VistaVox S 10.9 Unusual running noises when opening or closing the temple supports Situation Rubbing, scratching or squeaking noises are audible when the temple supports are opened or closed. Procedure The noises are probably caused by the worm drive mechanism. It is possible, for example, that the running blocks may have come loose.
  • Page 81 Service manual VistaVox S Each time you click Retake, the aperture position is adjusted. It is therefore important to take care to repeat the recording often enough, otherwise it is wrongly assumed that the aperture would not move. A hardware defect is generally rather unlikely, as all apertures are verified during device initialization and the function of the stepper motors is also checked.

  • Page 82: In The Service Tool The Tilting Of The Ceph Collimator Is Outside The Tolerance

    Service manual VistaVox S 10.11 In the Service Tool the tilting of the Ceph collimator is outside the tolerance Situation During calibration of the Ceph collimator (e.g. during the initial calibration) the number of degrees on the left or right tilting is out of tolerance. The result could look like this.
  • Page 83 Service manual VistaVox S Background Tilting of the collimators cannot be corrected by the unit or by the software. Pressing Repeat X-ray image acquisition will therefore not improve the situation. A mechanical adjustment needs to be made. Adjustments can either be made on the collimator or to the sensor position. It is therefore necessary to check beforehand whether the collimator angle for Pano and CBCT is within the tolerance (which is presumably the case).
  • Page 84 Service manual VistaVox S 3. Adjusting the sensor angle Fig. 62 Adjustment of the Ceph sensor angle 4. Tighten the screws 5. Repeat the X-ray image acquisition in the Service Tool 6. Repeat the process until the angle is within the tolerance (0.13°) Doc.

  • Page 85: Device Produces Noise When Starting Up Or Shutting Down

    Service manual VistaVox S 10.12 Device produces noise when starting up or shutting down Situation Rollers produce a bumpy noise when driving up or down, which is repeated at even intervals. Background The noise is caused by the four support rollers on the back of the column.
  • Page 86 After replacing the support rollers and reassembling the Ceph boom, the VistaVox S Ceph initial calibration workflow must be carried out in the Service Tool. The first steps up to The Ceph calibration can be skipped.

  • Page 87: Firmware Update

    Service manual VistaVox S 11 Firmware update VistaVox features several software components. Two of these (MCU firmware and GUI firmware) can be updated if required. In addition, the reconstruction computer with its VistaVoxSoftwarePackage (VVSP) is also considered as a third firmware component.

  • Page 88: Reading Out The Current Version Statuses

    Service manual VistaVox S 11.1 Reading out the current version statuses An overview of all current versions is available in VistaSoft. Fig. 65 Reading the current versions 11.2 Requirements for a firmware update The following accessories are required for a firmware update: 1.

  • Page 89: Cable

    Service manual VistaVox S 11.2.1 RS-232 cable A serial cable with 9-pin RS-232 connection is required for the firmware update of the MCU. As a rule, a USB to Serial Adapter cable is used. Note In addition, there is also a serial cable that has been modified by Dürr Dental (order number 2210200510).
  • Page 90 Service manual VistaVox S Fig. 67 FDT module selection Fig. 68 FDT installation 11.2.2.2 Installation of the FlashLoader software The labelled illustrations below will guide you through the installation. Doc. no. 4174205 / Revision 2.2 Page 89 of 142...
  • Page 91 Service manual VistaVox S Fig. 69 Launching the FlashLoader setup Follow the setup instructions to carry out the installation, which is self-explanatory. We recommend not changing the installation path for the software. Fig. 70 FlashLoader installation Fig. 71 FlashLoader installation complete Doc.

  • Page 92: Obtaining The Firmware Files

    Service manual VistaVox S 11.2.3 Obtaining the firmware files The VistaVoxSoftwarePackage (VVSP) installed on the reconstruction computer has firmware files (depending on the version). Fig. 72 Firmware directory from VistaSoft structure However, these firmware files contain the firmware version from the time of publication of the then VVSP.

  • Page 93: Performing A Gui Update

    Service manual VistaVox S as a supporting device during installation). This approach is always recommended, as it is ensured in this case that the VistaSoft version is compatible with the installed VVSP version. Alternatively, it is also possible to install the VistaVoxSoftwarePackage (VVSP) as a manual update.

  • Page 94: Performing An Mcu Update

    Service manual VistaVox S 11.4.3 Performing an MCU update The main changes between the MCU PCBs of the two generations also necessitate a different approach for the MCU firmware update. In essence, this relates to a change in the software and the firmware file.
  • Page 95 Service manual VistaVox S Fig. 75 DIP switch 100 adjustment for firmware update on A01 (MCU) on a first-generation VistaVox In the next step the connection between the computer and VistaVox is established via the serial cable. To do this, the computer on which the FDT software was installed is connected to the PCB A07.
  • Page 96 Service manual VistaVox S Fig. 77 COM port for serial adapter Launch the FDT software under C:\Program Files (x86)\Renesas\FDT4.09\FDT.exe In the first step you will need to create a new project. Fig. 78 FDT - creating a new project Assign a name under Workspace Name: (you can choose this freely).
  • Page 97 Service manual VistaVox S Fig. 79 FDT - choosing the project name In the list provided, select the bottom point Generic BOOT Device. Fig. 80 FDT - selecting the access device In the next step you need to select the matching COM port under Select port: for the serial connection.
  • Page 98 Service manual VistaVox S Fig. 81 FDT - selecting the COM port Under Select a device: you need to select the entry HS8SX 1520R(40MHz). Fig. 82 FDT - selecting the firmware chip Next the connection is established and the firmware is removed from the device. When doing this, make sure that all ticks are green.
  • Page 99 Service manual VistaVox S Fig. 84 FDT - setting the CKP value to 4 Fig. 85 FDT - connection type Doc. no. 4174205 / Revision 2.2 Page 98 of 142...
  • Page 100 Service manual VistaVox S Fig. 86 FDT - programming options The wizard closes and the actual programming interface can now be seen. To continue uploading the new firmware, continue via Tools > Simple Interface…. Fig. 87 FDT - calling up a simple interface In the window that opens, go to Download File and select the required firmware file (see 11.2.3 Obtaining the firmware files on page 91) via the arrow.
  • Page 101 Service manual VistaVox S Fig. 88 FDT - selecting the firmware file The write process takes around 3 minutes (time could be different). Doc. no. 4174205 / Revision 2.2 Page 100 of 142...
  • Page 102 Service manual VistaVox S Fig. 89 FDT - writing the firmware Once the software has been successfully updated, click Disconnect to end the process. Afterwards you can close the FDT software. Doc. no. 4174205 / Revision 2.2 Page 101 of 142...
  • Page 103 Service manual VistaVox S Fig. 90 FDT - Firmware successfully updated With the unit switched off, remove the serial cable and restore the positions of the DIP switch back to their original settings. Doc. no. 4174205 / Revision 2.2 Page 102 of 142...
  • Page 104 Service manual VistaVox S 11.4.3.2 Performing an MCU update on VistaVox generation 2 The DIP switch S11 controls the basic signal input to the MCU PCB and controls whether or not the memory can be written to. DIP switch Off (standard) S11.1...
  • Page 105 Service manual VistaVox S Fig. 92 DIP switch 11 setting for firmware update on A01 (MCU) for a second-generation VistaVox In the next step the connection between the computer and VistaVox is established via the serial cable. To do this, the computer on which the Flash Loader was installed is connected to the PCB A07.
  • Page 106 Service manual VistaVox S serial adapter can be checked via the Device Manager on the connected computer (the displayed name of the adapter will differ). Fig. 94 COM port for serial adapter The Flash Loader software should be loaded under: C:\Program Files (x86)\STMicroelectronics\Software\Flash Loader Demo\STMFlashLoader Demo.exe...
  • Page 107 Service manual VistaVox S Fig. 96 Flash Loader - defining the baud rate If the following message is displayed in the next step then you need to check that the DIP switch is correctly set. Fig. 97 Flash Loader - fault: impossible to save to memory The process can be continued if the connection is successfully established.
  • Page 108 Service manual VistaVox S Fig. 98 Flash Loader - successful connection Confirm the selection of the destination. Fig. 99 Flash Loader - confirming the memory module Doc. no. 4174205 / Revision 2.2 Page 107 of 142...
  • Page 109 Service manual VistaVox S Fig. 100 Flash Loader - loading the firmware file Switch to the directory of the firmware file (see 11.2.3 Obtaining the firmware files on page 91). The file format needs to be changed to Bin Files (*.bin).
  • Page 110 Service manual VistaVox S Fig. 102 Selecting the firmware file Start writing the firmware. Fig. 103 Flash Loader - confirming the summary The effective firmware update takes around 5 minutes (time could be different). Doc. no. 4174205 / Revision 2.2...
  • Page 111 Service manual VistaVox S Fig. 104 Flash Loader - process of writing to the chip Once the update has been completed, click Close to end the process. Fig. 105 Flash Loader - successful write process With the unit switched off, remove the serial cable and restore the positions of the DIP switch back to their original settings.

  • Page 112: Perform Collimator Update

    Service manual VistaVox S 11.4.4 Perform Collimator Update For the collimator update a special serial cable is required (article number 2210200510), which is plugged directly onto the collimator board M09. To connect to the device, the terminal program is also required, as well as the FDT software.
  • Page 113 Service manual VistaVox S Fig. 107 Tube covers In the next step, the connection between the computer and VistaVox is made using the serial cable. For this purpose, the computer on which the terminal program is installed is connected to the collimator board M09.
  • Page 114 Service manual VistaVox S Fig. 108 Terminal program with version of the A09 board Fig. 109 FDT software with BIN file After the device has been restarted, the version number must be checked (see 11.1 Reading out the current version statuses from page 87).

  • Page 115: Device And Error Messages

    Service Manual VistaVox S 12 Device and error messages 12.1 General information about error messages Besides the items shown on the device's display, further messages are also shown directly in VistaSoft. VistaSoft also keeps a very detailed log of the entire device communication and acquisition process. Certain hardware-related errors can be identified using this log.

  • Page 116: Overview Of Device Messages

    Service Manual VistaVox S 12.2 Overview of device messages Number Message Description Solution approach The device has detected Internal device error. If the error occurs repeatedly, the VistaSoft log files and the device report 4101001E an internal fault and Restart the device.
  • Page 117 Service Manual VistaVox S The following items must be checked 1. The device and VistaSoft are active and the fibre optic cable is connecting the device to the reconstruction computer (make sure that the Service Tool and VistaSoft are not open at the same time).
  • Page 118 Service Manual VistaVox S Before each acquisition, the software checks whether the licence dongle exists in the reconstruction computer. Should this message appear even The licence dongle is The software cannot find though the licence dongle is in the reconstruction computer, check the missing.
  • Page 119 Service Manual VistaVox S The device has reported Sorry! An internal error an unexpected error. Restart reconstruction computer and device. If the error persists, the has occurred. This was 412A001E There is no further VistaSoft log files and the device report from VistaSoft must be sent to Dürr...
  • Page 120 Service Manual VistaVox S Reconstruction of the image data was An error occurred during If the reconstruction fails again, check the following components: aborted. The raw image reconstruction. 1. The GPU meets the requirements (see installation instructions) and data is still available.
  • Page 121 Service Manual VistaVox S Cooling takes place as follows: Following a 30 second period of active tube The temperature limit time, the system needs to cool down in order to protect the tube. If This message appears if of the X-ray emitter someone tries to start an interruptions occur before the 30 seconds are over, 1.66% of this time is...

  • Page 122: Internal Error Messages

    Service Manual VistaVox S 12.3 Internal error messages The following list contains internal error messages, which are not displayed on the touch display. However, they can be read out via the terminal (see 4 Service Device Commands (Terminal) from page 42).
  • Page 123 Service Manual VistaVox S Tube Displayed mA value is +150% higher than the actual Restart devices. if incident occurs repeatedly, if value set necessary replace tube and inverter board Engines Failed to reference the P-axis motor Restart the device, check the light barriers...

  • Page 124: Spare Parts

    13 Spare parts The following section lists all of the replacement parts, by assembly, that are available for the VistaVox S. The replacement parts are divided into three categories. This is done to show you which parts require calibration following replacement.

  • Page 125: Assemblies And Device Connection

    Service Manual VistaVox S 13.1.2 Assemblies and device connection Fig. 111 Overview of assemblies and device connection Doc. no. 4174205 / Revision 2.2 Page 124 of 142...
  • Page 126 Category 1 Chin holder for edentulous jaws 2207-052-50 Category 1 First steps from: Frame grabber card 2210200551 Category 2 VistaVox S initial calibration Fibre-optic cable, 10 m (standard) 2210200580 Category 1 Fibre-optic cable, 5 m 9000100494 Category 1 Fibre-optic cable, 20 m...

  • Page 127: C-Shaped Arm

    Service Manual VistaVox S 13.1.3 C-shaped arm (ZZ-2) (ZZ-1) Fig. 112 Overview of C-shaped arm Doc. no. 4174205 / Revision 2.2 Page 126 of 142...
  • Page 128 Service Manual VistaVox S Pos. Description Order no. Category Workflow Phantom 2207-021-50, 2210200371, 9000100643, 2210200447, • Recalibration after sensor replacement 2210200512, Sensor 2210200572 Category 3 • Change serial number (after 2210200513, component replacement) 2210200514, 2210200425, 2210200375, 2207100047 Calibrate [ceph,] CBCT and pano...
  • Page 129 Service Manual VistaVox S 140 Slider for Frankfurt plane laser 2210200481 Category 1 150 Sensor housing, rear 2210200463 Category 1 160 Light barrier ZZ – ZZ-1 2210200534 Category 1 2207-021-50, 2210200371, Recalibration (CBCT + pano [+ ceph]) after 160 Light barrier ZZ – ZZ-2...

  • Page 130: Cross Member

    Service Manual VistaVox S 13.1.4 Cross member Fig. 114 Overview of cross member status lamp Fig. 113 Overview of cross member Doc. no. 4174205 / Revision 2.2 Page 129 of 142...
  • Page 131 Service Manual VistaVox S Pos. Description Order no. Category Workflow Phantom Stepper motor for X-axis or Y-axis 2210200454 Category 1 Vibration buffer set 2210200505 Category 1 Power board (A02) 2210200028 Category 1 Input line filter 2210200486 Category 1 Restore MCU parameters...

  • Page 132: Column, Carriage And Wall Bracket

    Service Manual VistaVox S 13.1.5 Column, carriage and wall bracket Fig. 115 Overview of column, carriage and wall bracket Doc. no. 4174205 / Revision 2.2 Page 131 of 142...
  • Page 133 Service Manual VistaVox S Pos. Description Order no. Category Workflow Phantom Column (VistaVox - no provision for replacement of complete assembly) 2210200081 Column carriage (VistaVox - no provision for replacement of complete assembly) 2210200082 Wall mounting element, top (VistaVox) Category 1 Fig.
  • Page 134 Service Manual VistaVox S Pos. Description Order no. Category Workflow Phantom Disassembly set for lift motor with spindle (VistaVox) 2210200489 Category 1 Lower panel 2210200477 Category 1 Centre panel 2210200479 Category 1 Upper panel 2210200478 Category 1 Lift motor with spindle...
  • Page 135 Service Manual VistaVox S Fig. 118 Overview of carriage Pos. Description Order no. Category Workflow Phantom Carriage housing, upper 2210200471 Category 1 Carriage housing, lower 2210200470 Category 1 Height stop sensor 2210200453 Category 1 Doc. no. 4174205 / Revision 2.2...

  • Page 136: Patient Positioning

    Service Manual VistaVox S 13.1.6 Patient positioning Fig. 119 Patient positioning Doc. no. 4174205 / Revision 2.2 Page 135 of 142...
  • Page 137 Set of sealing plugs 2210200482 Category 1 Check geometry of panoramic 2207-021-50 unit, VistaVox S initial calibration Chin support base 2210200075 Category 3 (skip all steps except the check of the sensor height) Doc. no. 4174205 / Revision 2.2...

  • Page 138: Wall Bracket And Head Supports

    Service Manual VistaVox S 13.1.7 Wall bracket and head supports Fig. 121 Head supports Plus Pos. Description Order no. Category Silicone pads for head supports Plus, Category 2210200701 Fig. 120 Wall brackets right and left Pos. Description Order no. Category...

  • Page 139: Spare Parts Generation 2

    Service Manual VistaVox S 13.2 Spare parts generation 2 13.2.1 General spare parts and tools Kit for column motor and spindle replacement VistaVox 2210200489 Hygienic Covers Bite Block (100 pieces) 2207-010-50 Calibration and Test Body Set VistaVox 2210200542 Consistency Test Phantom 3D Set 2210200527 For a detailed view of all assemblies and spare parts, open the spare parts catalog under https://www.duerrdental.net/home/.

  • Page 140: Overview Of The Different Generations

    Order number Generation 2210200001 (VistaVox S) Generation 1 2210200653 (VistaVox S), 2210200575 (VistaVox S Ceph) Generation 2 Table 13 Overview of the different generations Note A key difference between the two generations is the change in frame grabber card. Make sure that the suitable frame grabber and the matching conductor polarity are used.

  • Page 141: Overview Of Main Changes

    Voltage filter Is located lower in the column. Tube suspension Only on the VistaVox S Ceph variant – motor control of the tube position (Pano/CBCT or Ceph) Ceph arm Only on the VistaVox S Ceph variant – extension arm incl. sensor Table 14 Main changes between first and second-generation units Doc.

  • Page 142: Directory Structure

    Service Manual VistaVox S 15 Directory structure Almost everything relating to the data used in VistaVox can be found in the following directory on the reconstruction computer: C:\ProgramData\Duerr\VistaSoft\WorkstationService\VistaVoxPlugin In addition, log files relating to VistaVox are also saved in log files of VistaSoft. These can be found here: C:\ProgramData\Duerr\VistaSoft\DiagnosticLogs 15.1 Overview of the subfolders of VistaVoxPlugin...
  • Page 143 Service Manual VistaVox S Driver, Firmware Rabbit Support VistaVoxServiceTool DriverPackageInstaller The Driver folder contains, The Firmware folder The Rabbit folder The Support folder The VistaVoxServiceTool among other things, contains the most recent contains the key tools contains the collimator folder contains all...
