3.3.1 JP1 Jumper

Jumper JP1 is used to select the display output format, NTSC or PAL. This jumper
must be populated in one of the two configurations. When the center to NTSC is
selected the display output will be NTSC format. When the center to PAL is selected
the display output will be in PAL format. These positions are shown in the figure below.
3.3.2 JP2 Jumper
Jumper JP2 is a jumper bank used to select the routing of the CS2 signal. It can be
routed to Flash ROM, SRAM, NAND Flash, and daughter card connector. Only one of
these 1-2 selections should be made. The positions are shown in the figure below.
3-20
Board
edge
PAL Selection
Board
edge

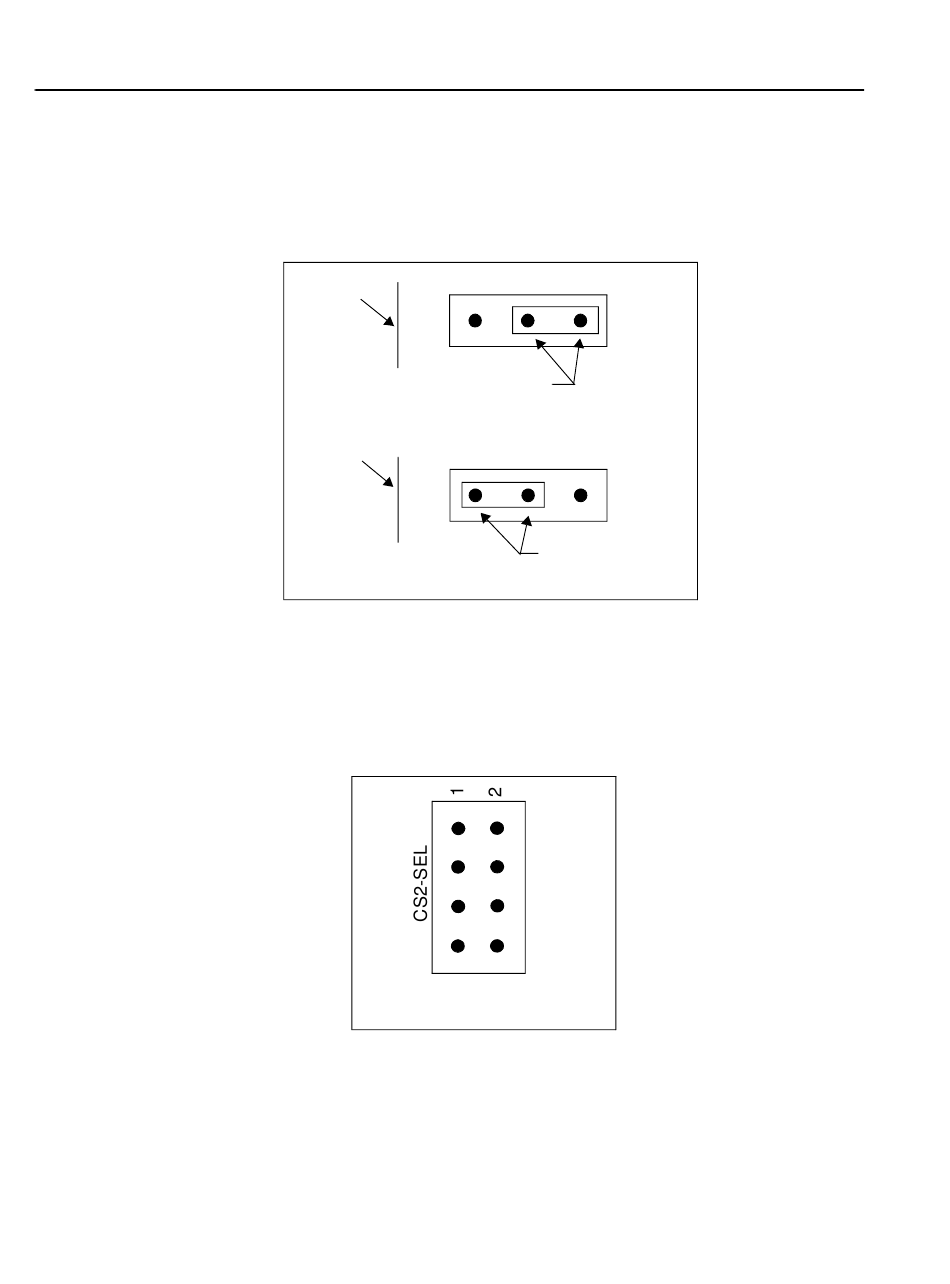

Figure 3-18, JP1 Jumper
JP2
Figure 3-19, JP2 Jumper
NTSC Selection
FLASH
SRAM
NAND
DC
