3.2.19 P12, Audio Line Out Connector
The audio line out is a stereo output. The output connector is a 3.5 mm stereo jack. The
signals on the mating plug are shown in the figure below.
3.2.20 P14, S/PDIF Out (Optical)
P14 is an optical transmitter connector used as an output from the McBSP FSR signal
on the DM6437 DSP. This connector brings out an optical S/PDIF signal. Do NOT plug
into this connector with the power on. The figure below shows this connector as viewed
from the card edge.
3-16

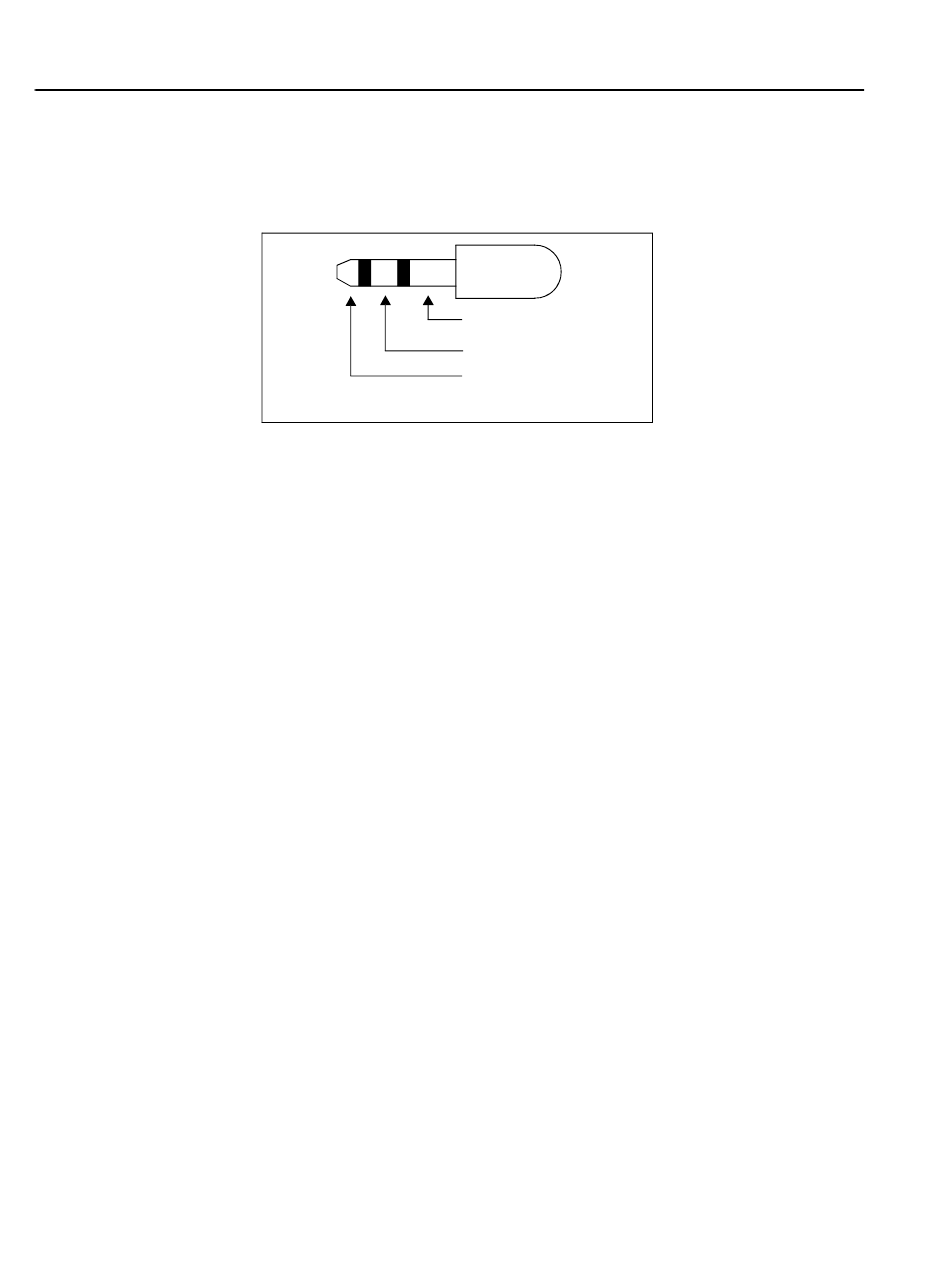

Figure 3-16, Audio Line Out Stereo Jack
Ground
Right Line Out
Left Line Out
