Spectrum Digital, Inc

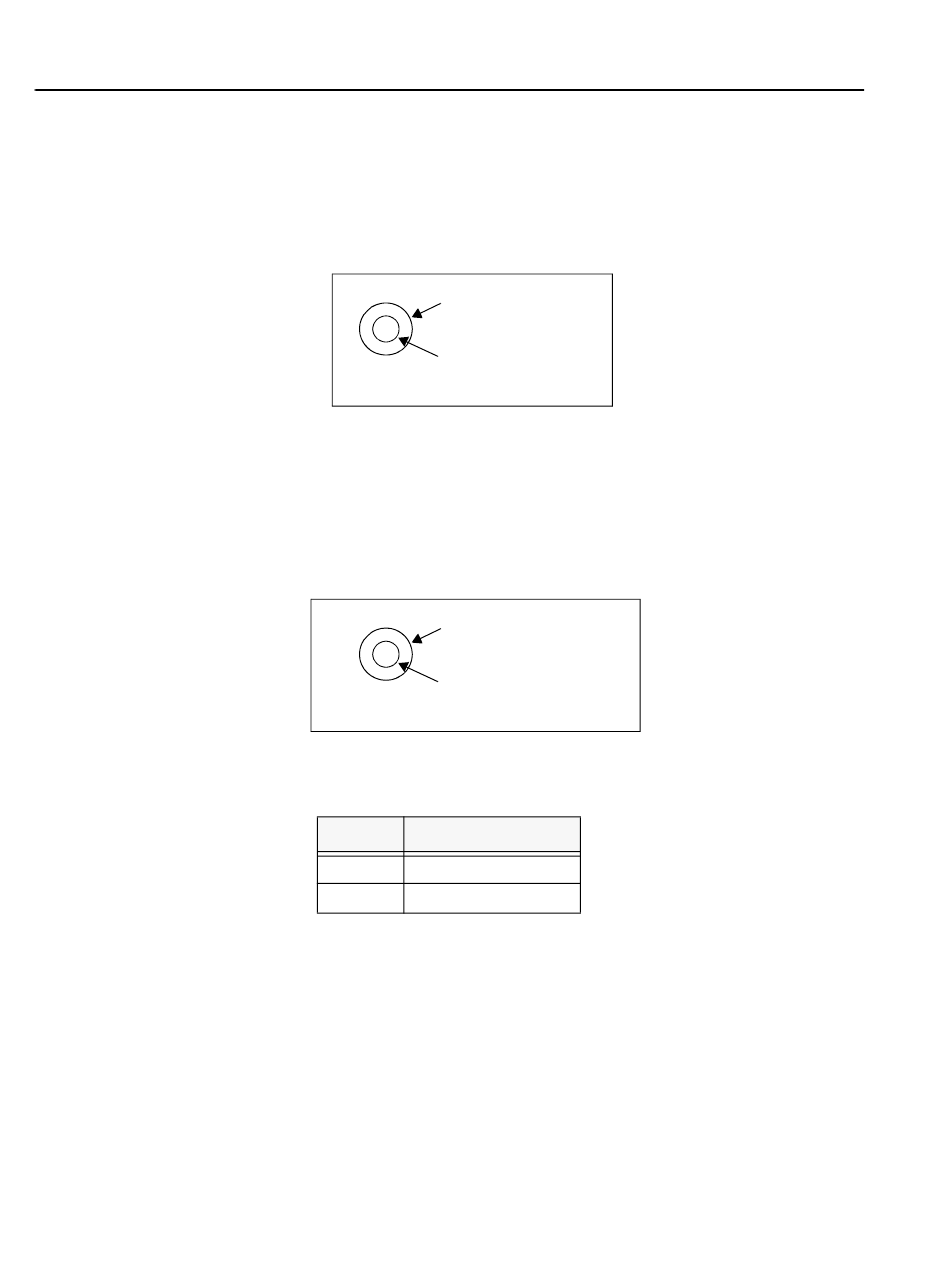

3.2.4 J4, DAC D Video Out
J1 is an RCA jack used to interface to DAC D of the DM6437 to a video device. This
connector is driven directly by the VPSS back end via an opamp. This connector is not
installed for clearance reasons when using the PCI bus. The pinout of this connector is
shown below.
3.2.5 J5, Video In
J5 is an RCA jack used as a video input to the TVP5146M2 video decoder. This
connector brings in a video signal to the TVP5146M2. Do NOT plug into this
connector with the power on. The figure below shows this connector as viewed from the
card edge.
3-6
Shield (ground)
Signal Output
Figure 3-5, J4, RCA Jack
Pin 2, Shield (ground)
Pin 1, Signal Input
Figure 3-6, J5, Video In RCA Jack
Table 2: J5, Video In, RCA Jack
Pin #
Signal Name
1
Pin 8, TVP5146M2
2
GND
DM6437 EVM Technical Reference
