Parts and Their Functions

This section provides you with the names and functions of all the parts of the machine. The keys and display on the
control panel are also described. Read this section to use the machine's various functions smoothly.
"Appendix" > "Options" in the User's Guide

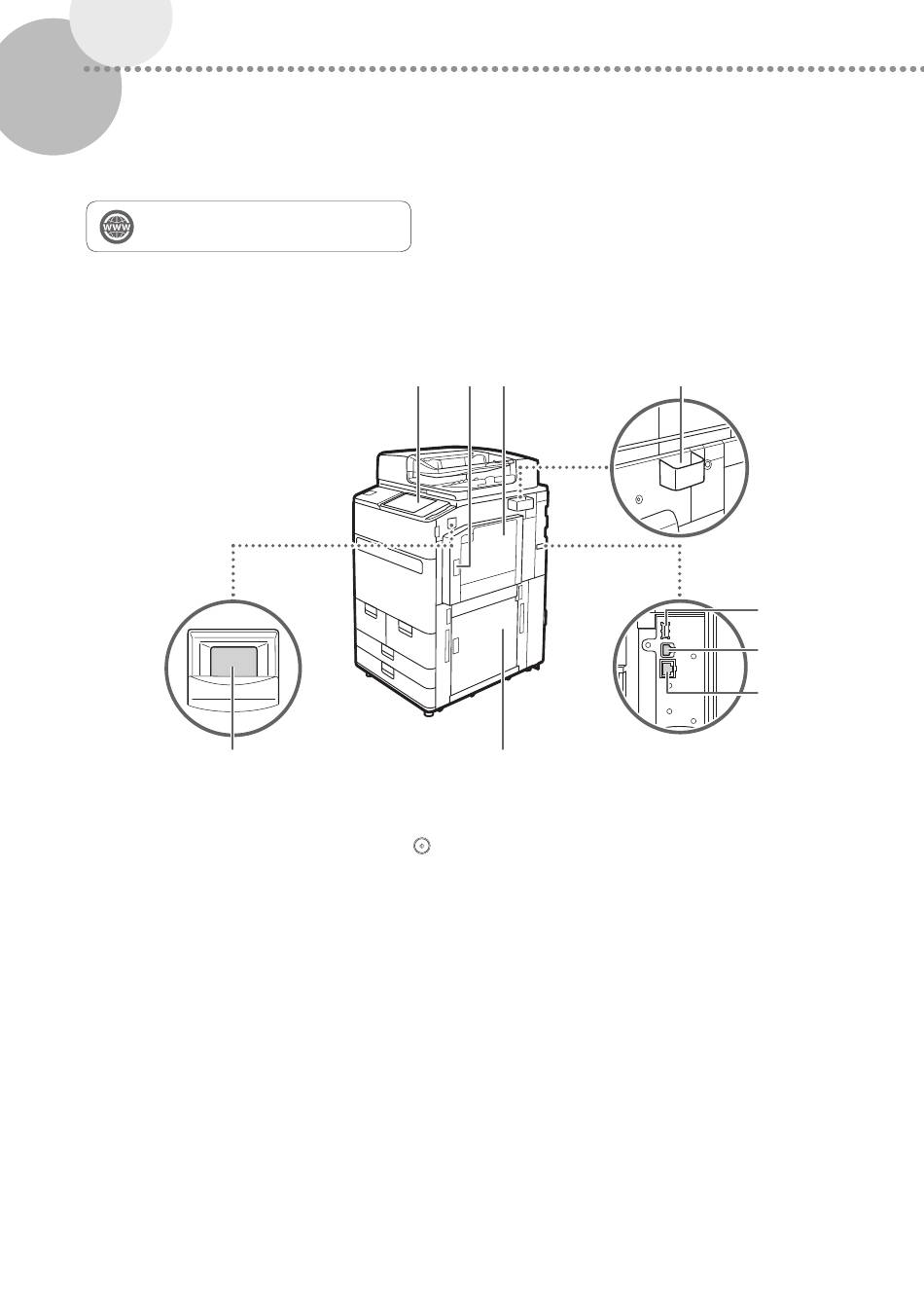

External View (Front Side)

9
1
Control panel
The control panel consists of the numeric keys,
indicators, touch panel display, etc. You can perform
all the operations and specify settings from the
control panel.
2
Upper-right cover of the main unit
Open this cover when clearing a paper jam inside the
machine.
3
Multi-purpose tray
Load paper into the multi-purpose tray when you
want to use a type of paper different from that which
is loaded in the paper deck/drawer.
4
Glass cleaning cloth storage box
Use this box to store the cloth for cleaning the platen
glass.
6
1
2
3
8
5
USB port (Rear-right side of the machine)
,
You can connect devices such as an external hard
disk to the machine.
6
USB connector
Connect a USB cable when connecting the machine
and a computer.
7
LAN port
Connect a LAN cable when connecting the machine
to a wired LAN router, etc.
8
Lower-right cover of the main
Open this cover when clearing a paper jam inside the
machine.
9
Power switch
Press the power switch when turning ON or OFF the
machine.
4
5
6
7
