OLIMEX STM32-H107 User Manual page 13

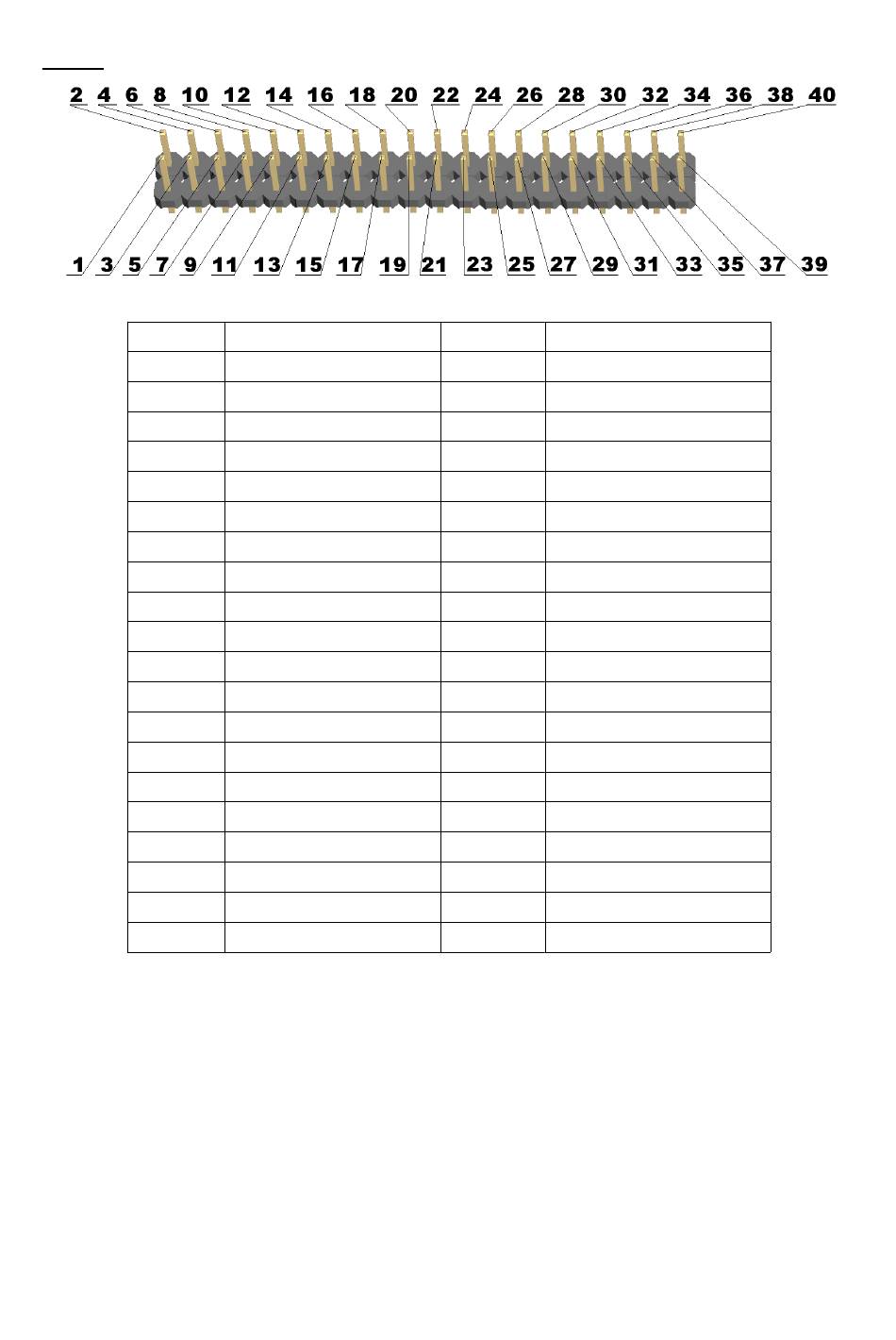

EXT2
Pin #
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
Signal Name
3.3V
RST
EXT2-5
EXT2-7
EXT2-9
USB_VBUSON
EXT2-13
EXT2-15
EXT2-17
EXT2-19
EXT2-21
EXT2-23
EXT2-25
EXT2-27
EXT2-29
EXT2-31
EXT2-33
EXT2-35
EXT2-37
GND
Pin # Signal Name
2 GND
4 EXT2-4
6 EXT2-6
8 EXT2-8
10 EXT2-10
12 EXT2-12
14 EXT2-14
16 EXT2-16
18 EXT2-18
20 EXT2-20
22 EXT2-22
24 EXT2-24
26 EXT2-26
28 EXT2-28
30 EXT2-20
32 EXT2-32
34 EXT2-34
36 EXT2-36
38 GND
40 +5V
Page13
