OLIMEX STM32-H107 User Manual page 12

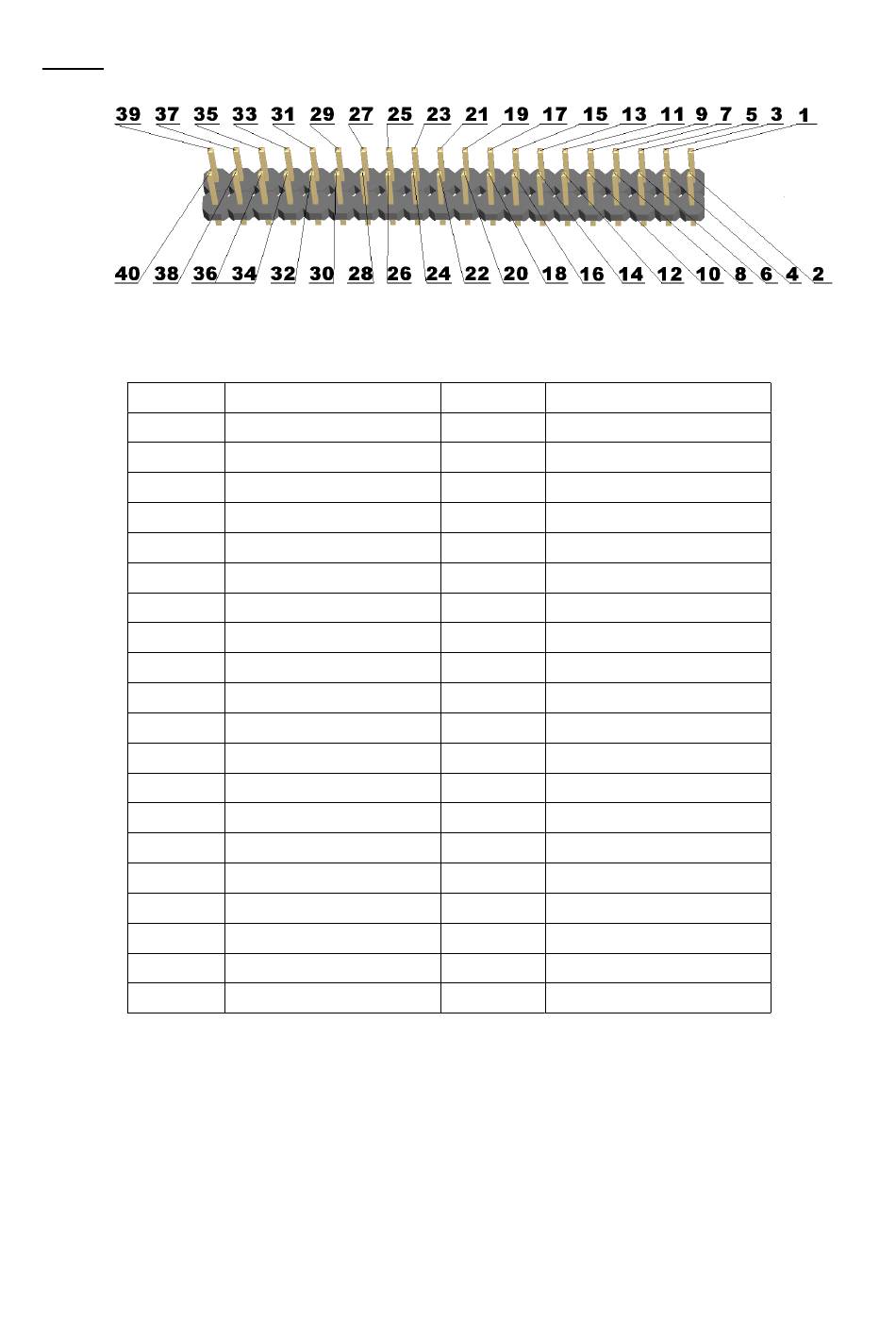

EXT1
Pin #
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
Signal Name
3.3V
RST
EXT1-5
EXT1-7
EXT1-9
EXT1-11
EXT1-13
EXT1-15
EXT1-17
EXT1-19
EXT1-21
EXT1-23
EXT1-25
EXT1-27
EXT1-29
EXT1-31
EXT1-33
EXT1-35
VREF-
GND
Pin # Signal Name
2 GND
4 WKUP
6 EXT1-6
8 EXT1-8
10 EXT1-10
12 EXT1-12
14 USB_FAULT
16 EXT1-16
18 EXT1-18
20 EXT1-20
22 EXT1-22
24 EXT1-24
26 EXT1-26
28 EXT1-28
30 EXT1-30
32 EXT1-32
34 EXT1-34
36 VREF+
38 VBAT
40 +5V
