Connector Descriptions - OLIMEX STM32-H107 User Manual

Default state is open.
INPUT/OUTPUT
Status LED1 (green) with name STAT1 connected to STM32F107VCT6 pin 63
(PC6/I2S2_MCK/TIM3_CH1).
Status LED2 (yellow) with name STAT2 connected to STM32F107VCT6 pin 64
(PC7/I2S3_MCK/TIM3_CH2).
Power-on LED (red) with name PWR – this led shows that +3.3V is applied to the
board.
User button with name WKUP connected to STM32F107VCT6 pin 23
(PA0/WKUP).
Reset button with name RESET connected to STM32F107VCT6 pin 14 (NRST).

CONNECTOR DESCRIPTIONS

JTAG:
Test Action Group) port directly to the core. Instructions may be inserted and
executed by the core thus allowing STM32F107VCT6 memory to be programmed
with code and executed step by step by the host software.
Port and Boundary Scan Architecture and STM32F107VCT6 datasheets and users
manual.
Pin #
1
3
5
7
9

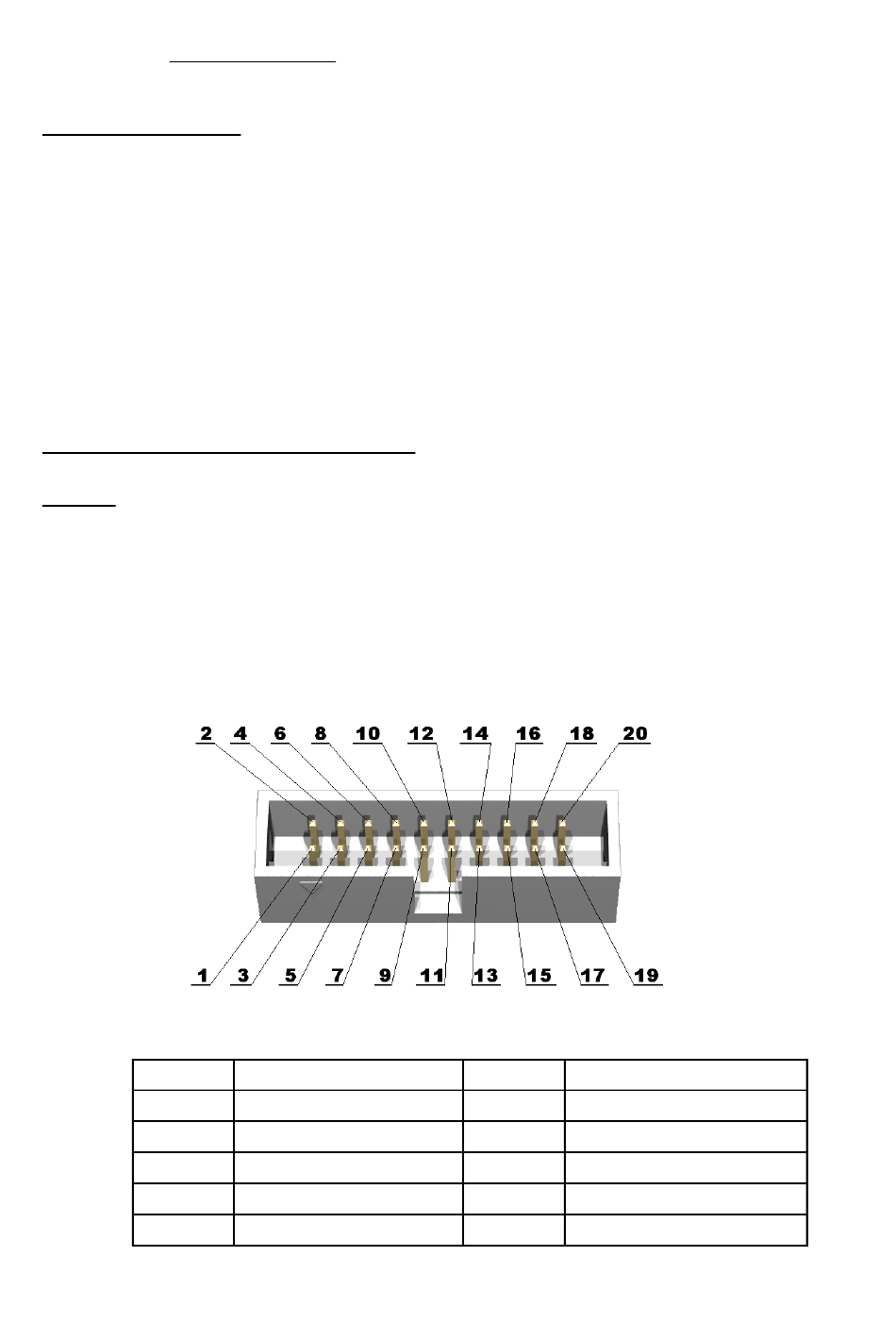

The JTAG connector allows the software debugger to talk via a JTAG (Joint
For more details refer to IEEE Standard 1149.1 - 1990 Standard Test Access
Signal Name
3.3V
TRST
TDI
TMS
TCK
Pin #
2 3.3V
4 GND
6 GND
8 GND
10 GND
