2 Installation Instructions

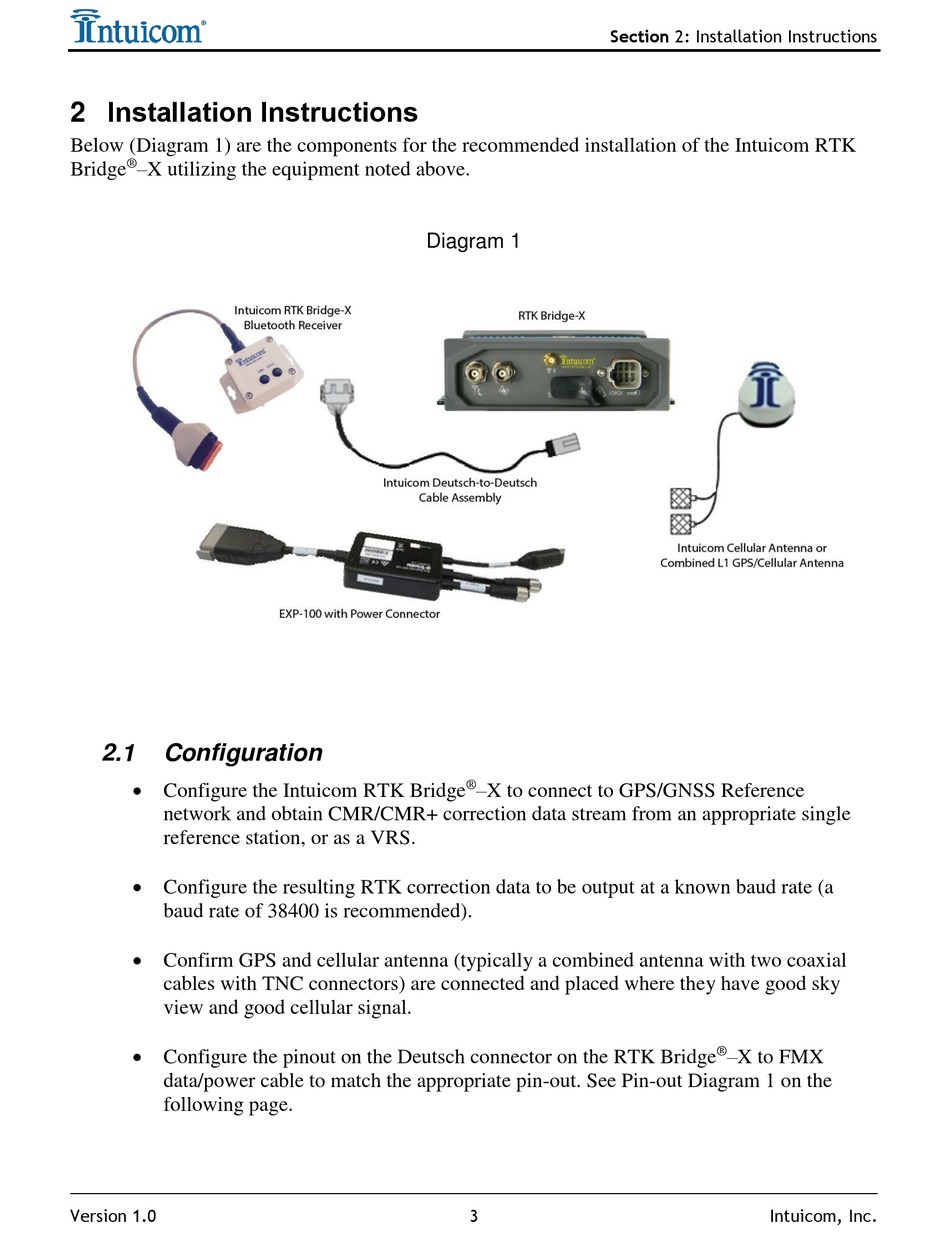

Below (Diagram 1) are the components for the recommended installation of the Intuicom RTK
–X utilizing the equipment noted above.
®
Bridge
2.1 Configuration
 Configure the Intuicom RTK Bridge
network and obtain CMR/CMR+ correction data stream from an appropriate single
reference station, or as a VRS.
 Configure the resulting RTK correction data to be output at a known baud rate (a
baud rate of 38400 is recommended).
 Confirm GPS and cellular antenna (typically a combined antenna with two coaxial
cables with TNC connectors) are connected and placed where they have good sky
view and good cellular signal.
 Configure the pinout on the Deutsch connector on the RTK Bridge
data/power cable to match the appropriate pin-out. See Pin-out Diagram 1 on the
following page.
Version 1.0
Diagram 1
–X to connect to GPS/GNSS Reference
®
3
Section 2: Installation Instructions
–X to FMX
®
