Section 2: Installation Instructions

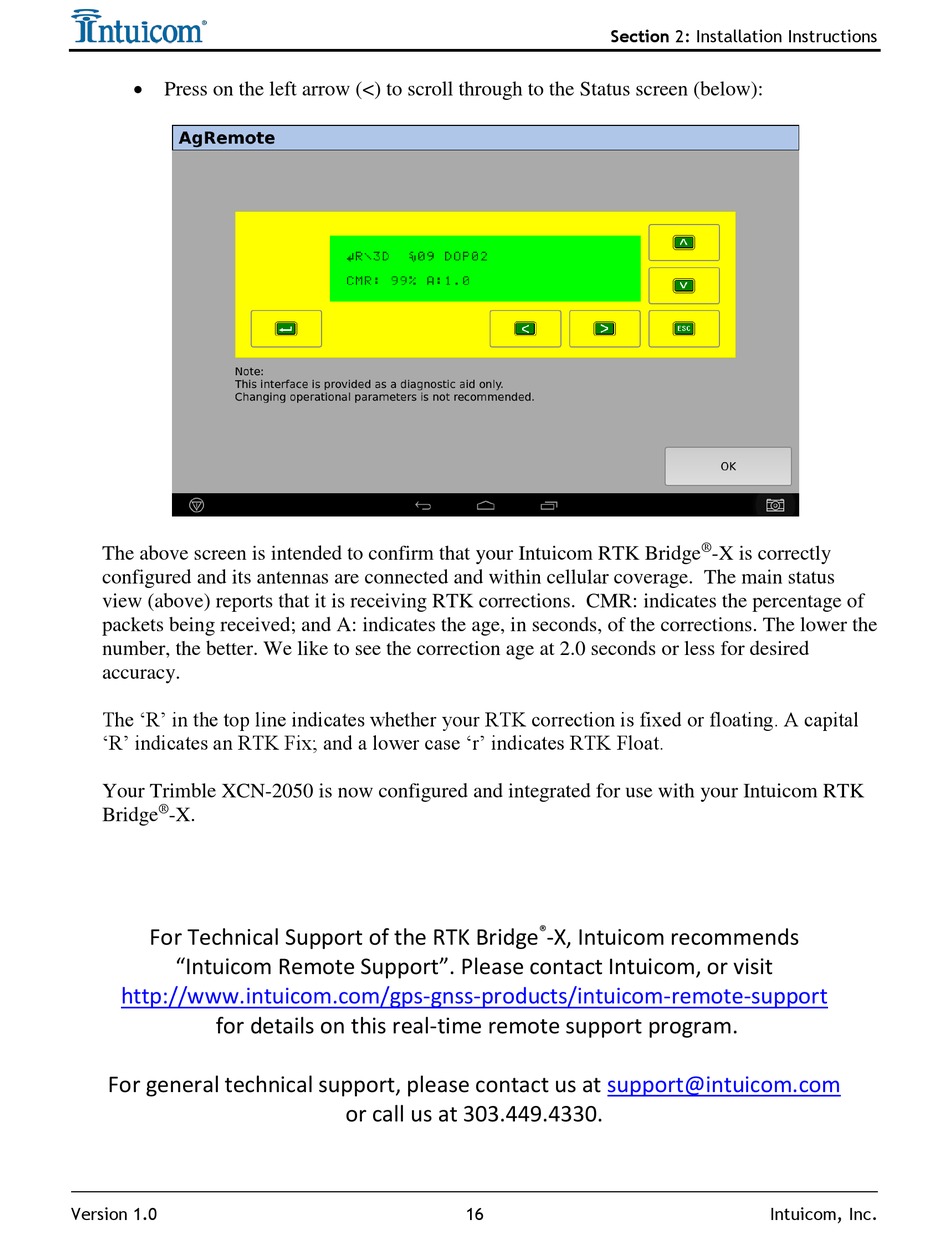

 Press on the left arrow (<) to scroll through to the Status screen (below):

The above screen is intended to confirm that your Intuicom RTK Bridge

-X is correctly

configured and its antennas are connected and within cellular coverage. The main status

view (above) reports that it is receiving RTK corrections. CMR: indicates the percentage of

packets being received; and A: indicates the age, in seconds, of the corrections. The lower the

number, the better. We like to see the correction age at 2.0 seconds or less for desired

accuracy.

The 'R' in the top line indicates whether your RTK correction is fixed or floating. A capital

'R' indicates an RTK Fix; and a lower case 'r' indicates RTK Float.

Your Trimble XCN-2050 is now configured and integrated for use with your Intuicom RTK

Bridge

-X.

For Technical Support of the RTK Bridge

-X, Intuicom recommends

"Intuicom Remote Support". Please contact Intuicom, or visit

http://www.intuicom.com/gps-gnss-products/intuicom-remote-support

for details on this real-time remote support program.

For general technical support, please contact us at

support@intuicom.com

or call us at 303.449.4330.

Version 1.0

Intuicom, Inc.
