2 Installation Instructions

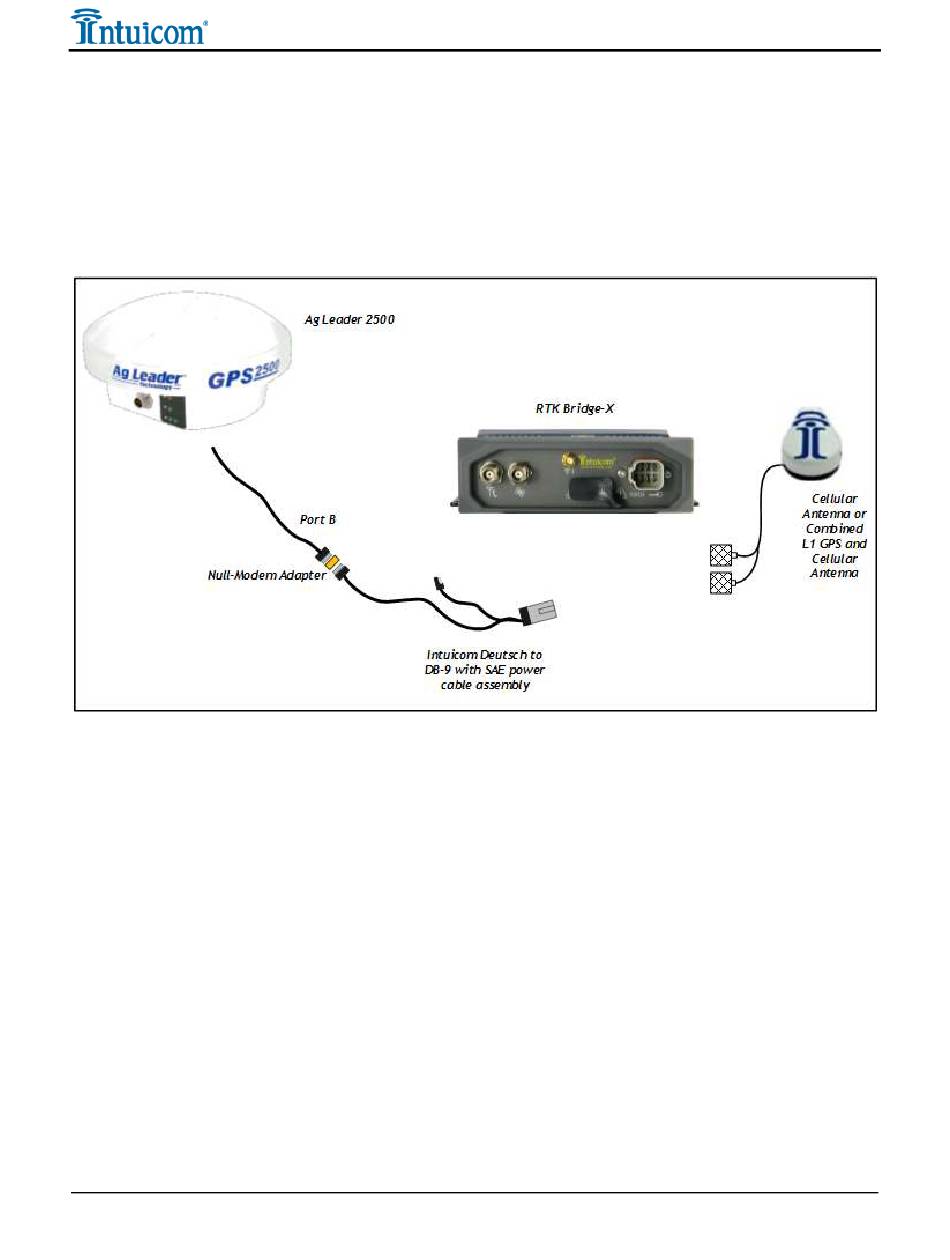

Below is the Installation Diagram for the recommended installation of the Intuicom RTK

Bridge–X utilizing the equipment noted above.

2.1

Configuration

• Configure the Intuicom RTK Bridge–X to connect to GPS/GNSS Reference network

and obtain CMR or RTCM correction data stream from an appropriate single

reference station, such as a VRS.

• Configure the resulting RTK correction data to be output at a known baud rate (a

baud rate of 38400 is recommended).

• Confirm GPS and cellular antenna (typically a combined antenna with two coaxial

cables with TNC connectors) are connected and placed where they have good sky

view and good cellular signal.

• Using the Intuicom RTK Bridge-X to GPS 2500 data/power cable and null-modem

adapter, connect the RTK Bridge-X data port to Serial 2 (Port B) on the GPS 2500.

Version 1.0

Diagram 1

Section 2: Installation Instructions

Intuicom, Inc.
