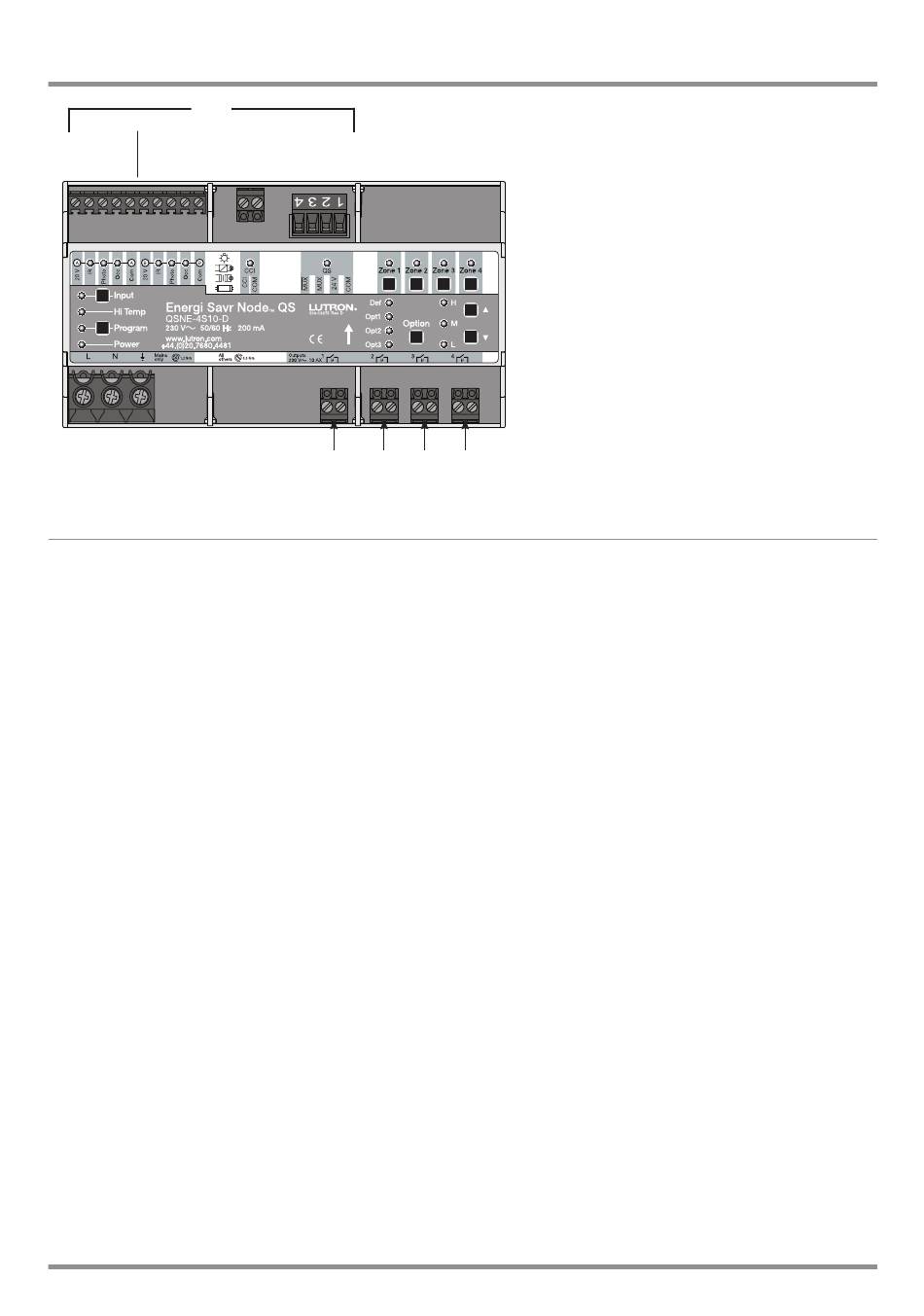

Energi Savr Node
PELV
Sensor Sensor
Inputs Inputs
Group A Group B
Mains
Wiring

Out of Box Functionality

This section describes the default functionality that the unit will present when first installed.
Sensors:
• Connected to sensor group A: controls zones 1 and 2.
• Connected to sensor group B: controls zones 3 and 4.
Occupancy
• Corresponding zones will turn on when the occupancy sensor is in the occupied state (closed) and off when in
the unoccupied state.
Daylight
• Corresponding zones will turn on when light sensed by photo sensor falls below the factory preset level.
• Corresponding zones will turn off when light sensed by photo sensor rises above the factory preset level.
IR
• Zones respond to On, Off, and Scene commands to the Lutron
(see IR Sensor literature for compatible transmitters).
QS Wallstations
• All seeTouch QS wallstations are Scene keypads by default.
®
• Scenes 1-16 will turn all the lights On.
• Scene Off will turn all the lights Off.
Contact Closure Input (CCI)
• The CCI behaves as an Emergency Contact Closure Input.
• If the CCI is open, the Energi Savr Node QS unit will enter Emergency Mode, which will turn on all loads and
disable local zone control and control from sensors and QS devices.
• When the CCI is closed or jumpered, Energi Savr Node QS unit zones will return to the settings or levels they
were at prior to entering Emergency Mode.
Troubleshooting and Maintenance Features
• After installation, each zone button will toggle the zone between on and off.
• Sensor status LEDs ('Occ', 'Photo', and 'IR') verify connections to control stations and sensors.
Normal Mode Operation
• Zone buttons—Used to toggle zone on and off.
|
Energi Savr Node QS
TM
QS | Programming Guide
TM
Contact
Closure
QS
Input
Link
Zone Zone
1 2
Input power and switched
outputs to zones
Programming Guide
Zone Zone
3 4
IR receiver from compatible IR transmitters
®
|
Lutron 2
®
