Energi Savr Node
QS
TM
Programming Guide

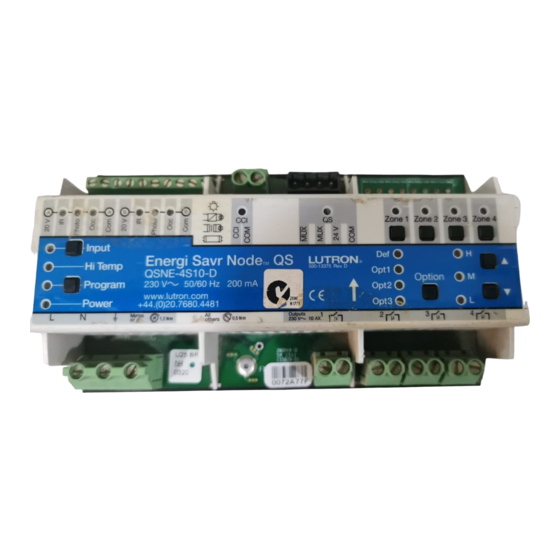

Model: QSNE-4S10-D
Contents
Page
Out of Box Functionality ............................................ 2
Programming ............................................................ 3
Input Programming Mode ......................................... 3
Sensor Overview ...................................................... 3
Advanced Button Programming ................................ 4
Scene Programming Mode ....................................... 4
QS Link Input(s) Setup .............................................. 6
Contact Information .................................................. 8
Advertisement
Table of Contents
Related Manuals for Lutron Electronics Energi Savr Node QS QSNE-4S10-D
Summary of Contents for Lutron Electronics Energi Savr Node QS QSNE-4S10-D
-
Page 1: Table Of Contents
Energi Savr Node Programming Guide Model: QSNE-4S10-D Contents Page Out of Box Functionality ..........2 Programming ............3 Input Programming Mode ......... 3 Sensor Overview ............3 Advanced Button Programming ........ 4 Scene Programming Mode ........4 QS Link Input(s) Setup ..........6 Contact Information .......... -
Page 2: Out Of Box Functionality

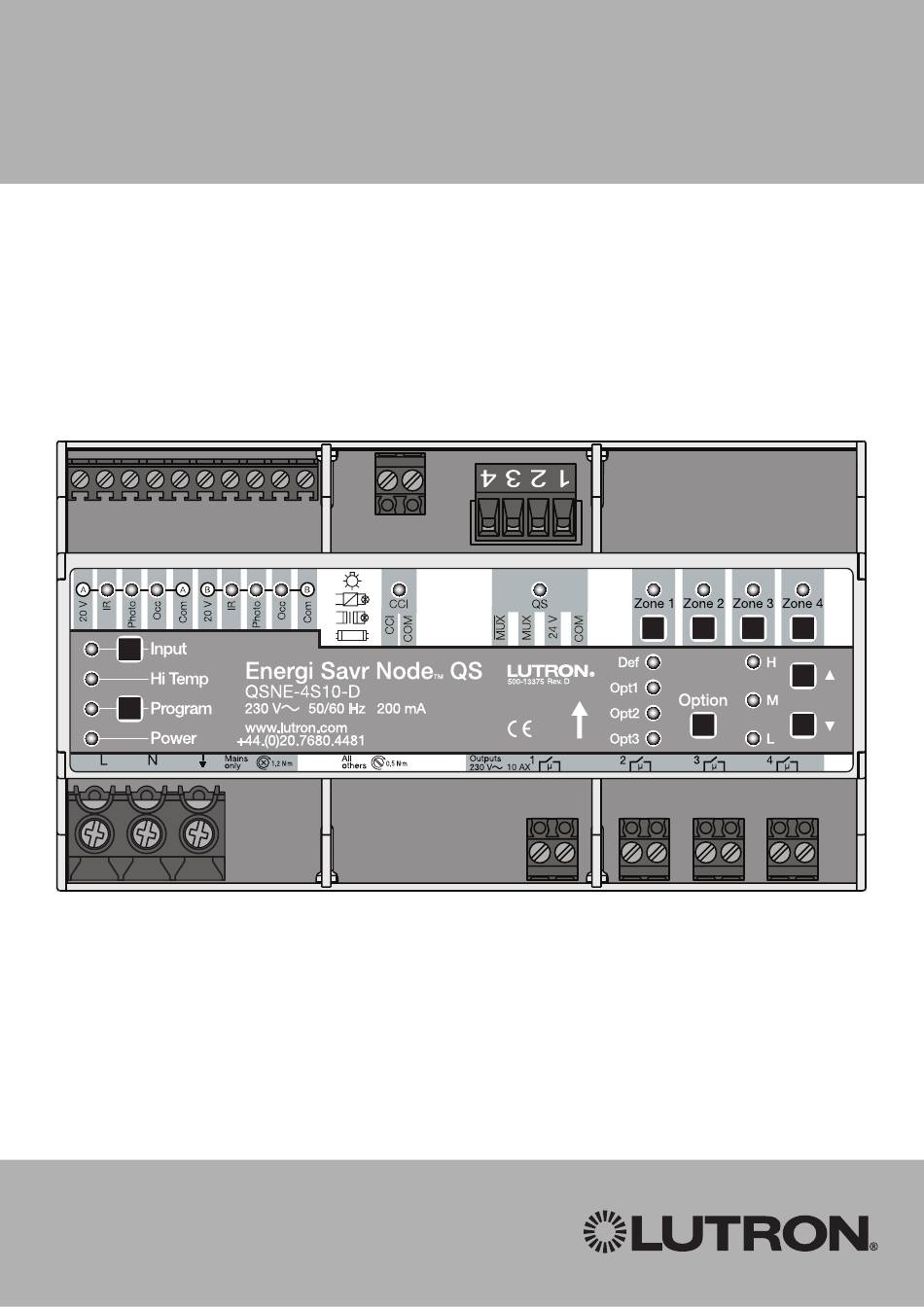

Energi Savr Node QS | Programming Guide PELV Sensor Sensor Contact Inputs Inputs Closure Group A Group B Input Link Mains Wiring Zone Zone Zone Zone Input power and switched outputs to zones Out of Box Functionality This section describes the default functionality that the unit will present when first installed. Sensors: • Connected to sensor group A: controls zones 1 and 2. -
Page 3: Programming
Energi Savr Node QS | Programming Guide Programming The out-of-box settings of an Energi Savr Node QS unit can be changed to customize the installation. Please follow the steps described below to adjust the settings on your Energi Savr Node QS unit. Input Programming Mode * N ote: After 10 minutes without activity on the user interface, the Energi Savr Node QS unit will automatically exit the Input Programming Mode. The Energi Savr Node QS unit will retain the latest changes. Assign/Unassign zones to wired sensors 1. To enter Input Programming Mode, press and hold the Program button for 3 seconds. The ‘Program’ LED will blink. -
Page 4: Advanced Button Programming
Energi Savr Node QS | Programming Guide Please refer to the daylight sensor installation guide for details on sensor placement. Infrared (IR) Remote Receivers Energi Savr Node QS units are programmable to turn lights on and off based on signals provided by compatible Lutron IR transmitters and received by compatible Lutron IR receivers. -
Page 5: Scenes
Energi Savr Node QS | Programming Guide 5. Exit Scene Programming Mode: Press and hold the Program and Option buttons for 3 seconds. Scenes 5-16 1. Simultaneously press and hold the Program and Option buttons on the Energi Savr Node QS unit for 3 seconds to enter Scene Programming Mode. ‘Program’ and Group B LEDs will flash rapidly. -
Page 6: Qs Link Input(S) Setup
Energi Savr Node QS | Programming Guide QS Link Input(s) Setup To assign a seeTouch QS Wallstation or GRAFIK Eye QS unit to any Energi Savr Node QS unit zone on the ® ® QS link, follow the steps below. seeTouch QS Wallstation - Scenes and Scenes + Off 1. Simultaneously press and hold the top and bottom buttons on the wallstation for 3 seconds. The QS link enters Programming Mode. The sensor Group A and Group B LEDs and the ‘H’, ‘M’, and ‘L’ LEDs on the Energi Savr Node QS unit(s) will flash sequentially in groups. - Page 7 Energi Savr Node QS | Programming Guide QSE-IO Association - Scene DIP configuration The Energi Savr Node QS unit can be associated to a QSE-IO (contact closure interface) that is set in a Scene DIP configuration. This can be used to change scenes on your Energi Savr Node QS unit from third party equipment (using contact closure inputs into the QSE-IO), or to monitor scene changes on your Energi Savr Node QS unit from third party equipment (using contact closure outputs out of the QSE-IO).
-
Page 8: Contact Information
Southern China: 10.800.120.1536 Technical support Hong Kong: 800.901.849 +44.(0)20.7680.4481 Singapore: 800.120.4491 FREEPHONE 0800.282.107 Taiwan: 00.801.137.737 Thailand: 001.800.120.665853 Other Areas in Asia: +65.6220.4666 Lutron, GRAFIK Eye, seeTouch, and the sunburst logo are registered trademarks and Energi Savr Node is a trademark of Lutron Electronics Co. Inc. Lutron Electronics Co., Inc. © 05/2010 Lutron Electronics Co., Inc. 7200 Suter Road Made and printed in the U.S.A. Coopersburg, PA 18036 P/N 032-311 Rev. B...
