Lutron Electronics seeTouch GRAFIK Eye SG-4BN Series Manual

®
Color and Engraving Codes
SG-4BN-___-___

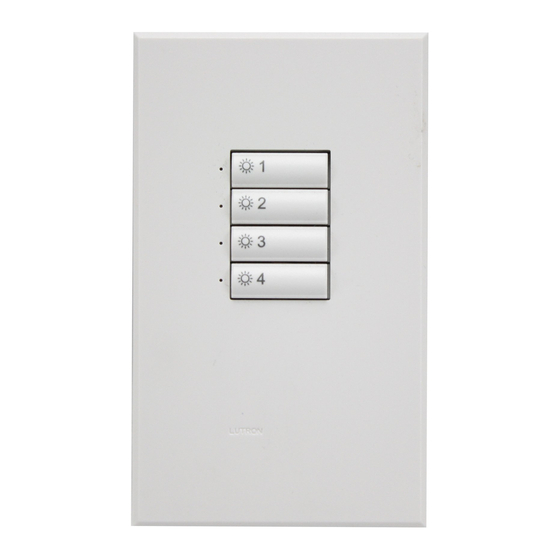

4-Button Wallstation
SG-4B N-WH-EGN
Field Selected Functionality
Scene selection
DIP Switch Settings
buttons activate:
5 6
Scenes 1 to 4
Scenes 5 to 8
Scenes 9 to 12
Scenes 13 to 16
DIP Switches 7-10 are set at the factory. Do not change
switch 7, 8, or 9. Switch 10 controls the button backlight.
Refer to product installation guide for more details.

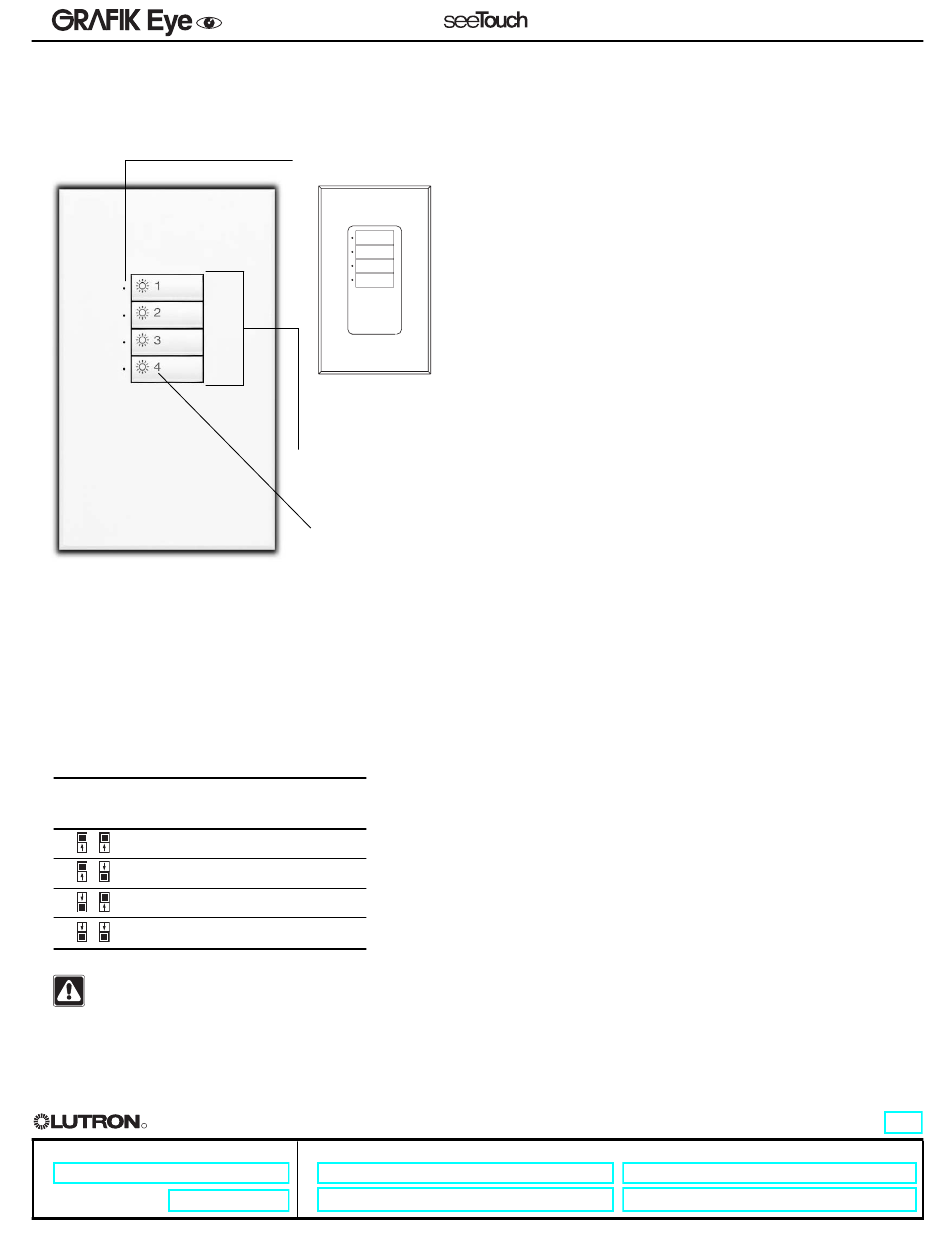

S P E C I F I C AT I O N S U B M I T TA L
R
Job Name:
Job Number:
LEDs
SG-4BI-WH-E00
(Insert version)
Scene Selection Buttons
Engraving
Model Numbers:
TM
Description
• Used to select and adjust scenes in GRAFIK Eye
Control Units.
• Large, rounded buttons are easy to use.
• Backlit buttons with optional engraving make it
easy to find and operate the control in low light
conditions.
• Optional button engraving is angled up to the eye
for easy reading.
• Scene selection functionality can be selected in
the field.
• Status LEDs indicate which scene is selected.
• Works with GRAFIK Eye 3000 and 4000 Series
Control Units.
• Selects scenes in just one Control Unit or a group
of up to eight Control Units.
Finish and Engraving Options
• Available with button engraving.
• Three engraving options are available: General
Engraving, Standard Engraving, & Non-Standard
Text Engraving. For more details, please refer to
the seeTouch Ordering Guide (P/N 367-274) or
visit the website at www.lutron.com/seetouch.
