Lutron Electronics QS IR Eye Programming Manual

Programming QS IR
Eye with Sivoia QS

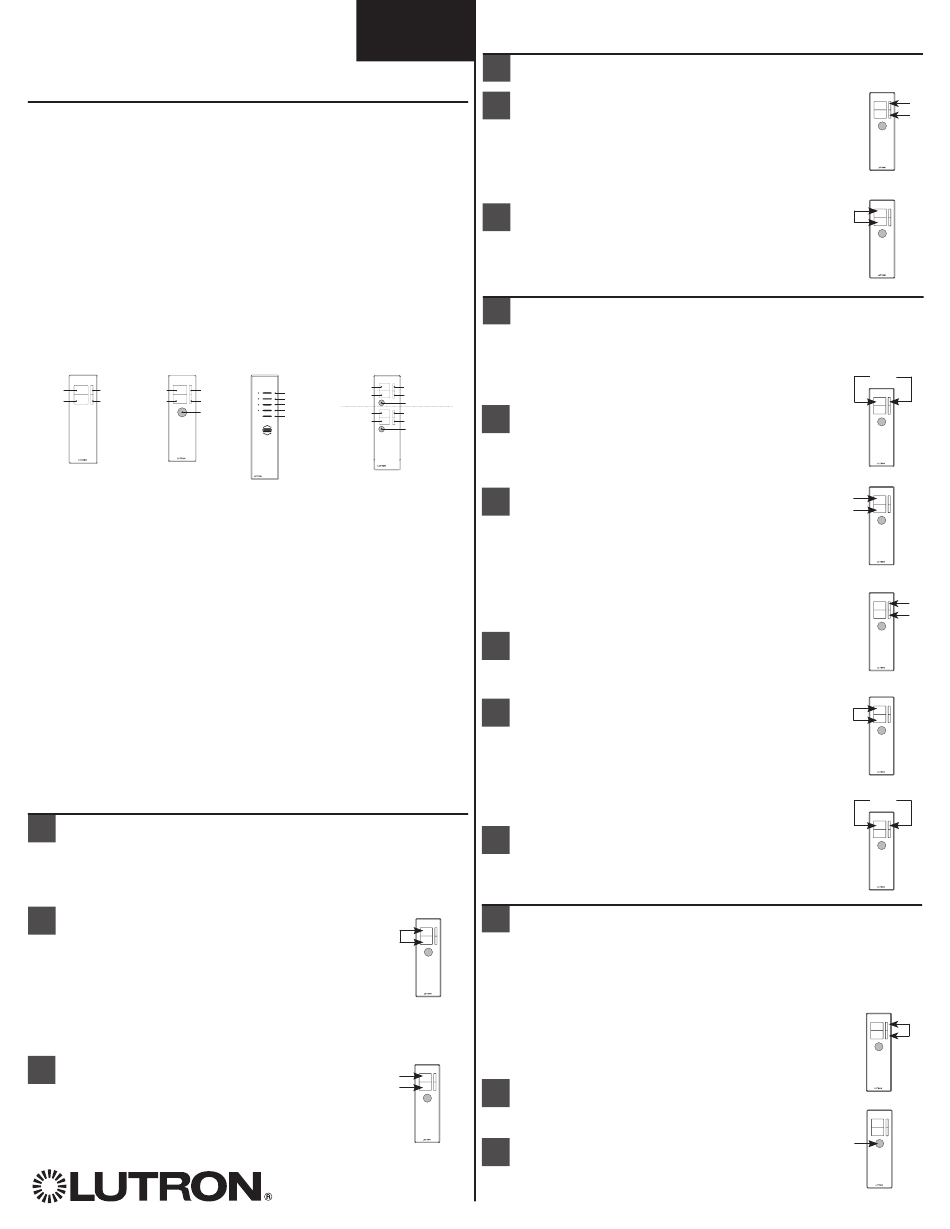

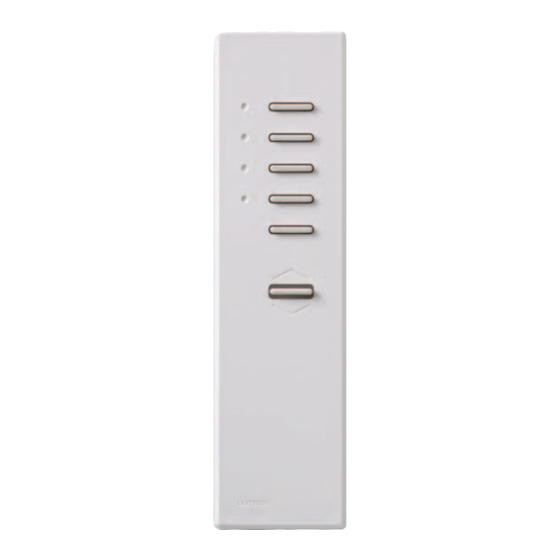

A system with an IR Eye provides a means to control and setup the
shades/draperies from a handheld IR remote. When the IR Eye is first
connected to the system a shades/drapes IR remote will control all QS
shades/draperies on the QS communication link. The setup procedure
provides the ability to assign specific shades/draperies to respond to the
IR remote. The complete list of programming functions include:
Assignment
•
Setting Limits
•
Storing Presets
•
Individual Level Adjust
•
Disabling programming
•
Disabling LED feedback
•
Restoring Factory Defaults
•
Single Group Remotes
Open
Open Raise Open Open Raise
Close Close
Close Lower Close Lower
Preset
SVIT SVIT-SH
SVIT-DR
Note: All programming is shown using a single group shade remote. To
program a dual group remote, program the first group, then repeat the
programming steps on the second group.
Assignment, preset, Individual Level adjust and disabling
programming lockout settings are stored in the IR Eye. Once
programmed, the IR Eye can be moved to anywhere on the
communication link.
Third Party IR Remote Integration
The maximum number of shade groups is 32 per IR Eye
•
Any one shade can be a member of up to 3 shade groups
•
Each shade group can have up to 3 presets
•
IR codes for third party devices can be found at
•
www.lutron.com/qsireyecodes
1
Assigning Shades/Draperies to the IR Eye
Shades/draperies in the system can be programmed to respond to a
shade/drapery remote via the IR Eye. The assignment procedure is used to
identify which shades in the system will respond.
1.1
To enter programming mode, Press and Hold Open
and Close together (5 sec) until the LED on the IR Eye
flashes. It will continue to flash slowly.
Shades/draperies that are unassigned will move
to the open limit.
Shades/draperies that are assigned will move
to the close limit.
1.2
Tap Open to cycle forward or tap Close to cycle
backward through the shades/draperies.
Selected shade/drapery will wiggle, or move
back and forth a short distance repeatedly.
Note: You will be able to cycle through ALL
shades/draperies in the system.
English
Dual Group Remote
Open Sheer Raise
Open
Close
Open Lower
Close
Preset 1
Preset
Preset 2
Open
Preset 3 Blackout
Raise
Open
Close
Close
Lower
Close
Preset
SVQ-3PIT SVIT-SH-SH
SVIT-SH-DR
SVIT-SR-BL
SVIT-SC-BL
Open
HOLD
Close
Enter
TAP
Open
or
TAP
Close
Select
1
Assigning Shades/Draperies to the IR Eye (continued)
1.3
Tap Lower to assign or Raise to unassign the
selected shade/drapery. To assign an additional
shade/drapery, repeat Step 1.2.
1.4
To exit, Press and Hold Open and Close
together (5 sec) until the LED on the IR Eye
turns off.
2
Limit Setting
The open and close limits define the boundaries which the shade/drapery
can travel during normal operation. They can be set using the IR Eye and a
shade/drapery remote.
2.1
To enter limit set mode, Press and Hold Open
and Raise together (5 sec) until the LED on the
IR Eye flashes. It will continue to double flash.
2.2
Tap Open to cycle forward or tap Close to cycle
backward through the assigned shades/draperies.
The selected shade/drapery will wiggle.
Note: If the IR Eye is unassigned, it will cycle through ALL
shades in the system. Otherwise, it will cycle through only
the assigned shades from section 1.
2.3
Press and Hold Lower or Raise to move
selected shade/drapery to the desired position
2.4
Press and Hold Open (5 sec) until the LED on the
IR Eye flashes to store Open Limit or
Press and Hold Close (5 sec) until the LED on the
IR Eye flashes to store Close Limit.
Adjust shade/drapery to set another limit (step 2.3)
or select another shade/drapery to set its limits (step 2.2).
2.5
To exit, Press and Hold Open and Raise
together (5 sec) until the LED on the IR Eye
turns off.
3
Storing Preset(s)
IR remotes with one or more preset buttons can be programmed to recall
favorite shade/drapery positions. Presets will be stored on all shades that
are assigned to the IR Eye.
To store preset(s) only on specific shades/draperies, see the
Individual Level Adjust Programming section (section 10).
Preset lockout must be disabled prior to storing presets.
See Programming Lockout section (section 5).
3.1
Press and Hold Lower or Raise to move
shades/draperies to the desired position.
3.2
To store Preset, Press and Hold Preset
Button (5 sec) until the LED on the IR Eye flashes.
TAP
Open
or
TAP
Close
Assignment
Open
HOLD
Close
Store and Exit
HOLD
Open
Close
Enter
TAP
Open
or
TAP
Close
Select
HOLD
Open
or
HOLD
Close
Adjust
HOLD
Open
HOLD
Close
Store
HOLD
Open
Close
Exit
HOLD
Open
or
HOLD
Close
Adjust
Open
Close
HOLD
Store
