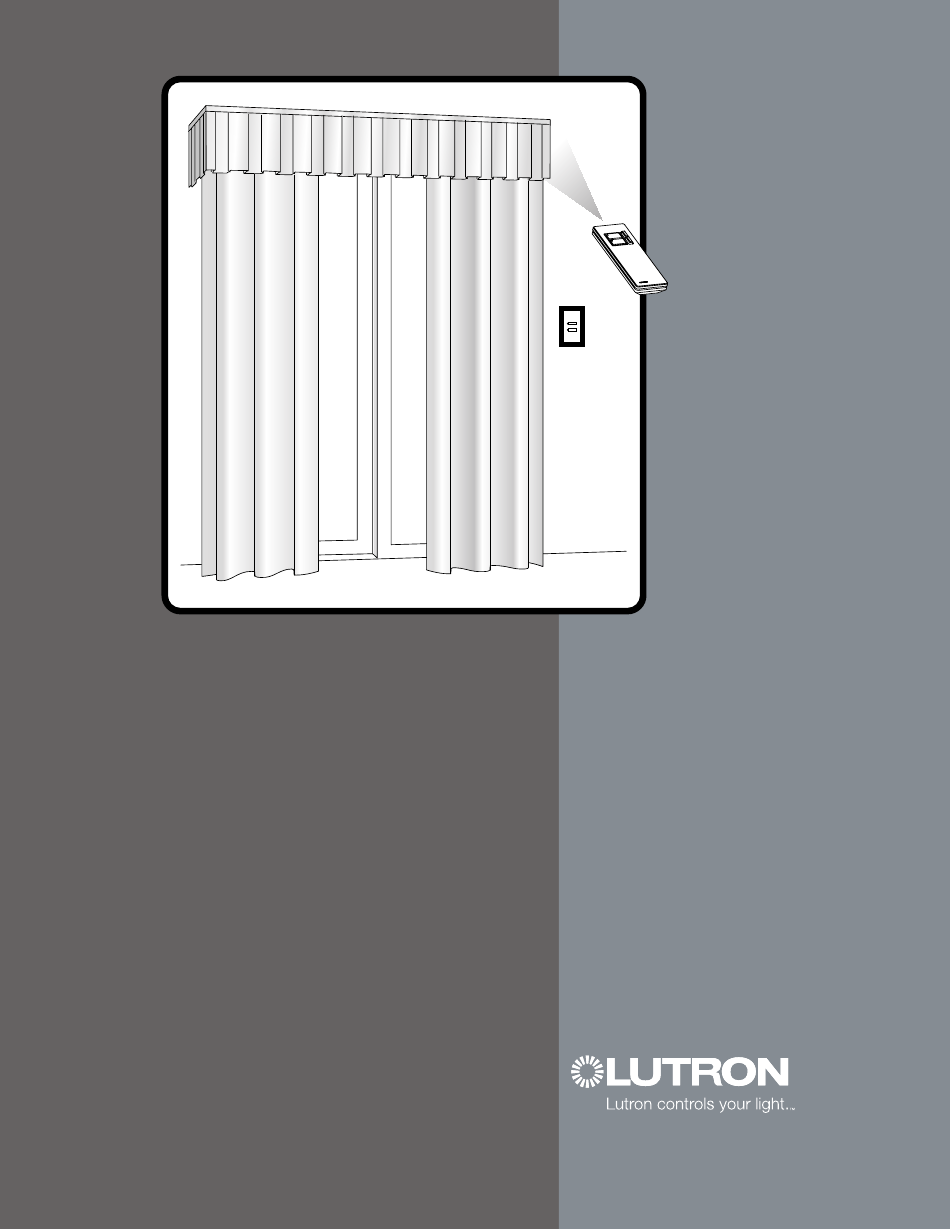

- Page 1 Open Close LUTRON Sivoia QED Installation and Operating Instructions Drapery System...
- Page 2 Sivoia QED drapery system Installation Instructions Tools Required: Tape Measure 1/8 inch Straight Blade Screwdriver Wire Cutter/Stripper Level Pliers Power Drill: Drill Bits, Screwdriver Attachments #2 Phillips Screwdriver Carton Contents: wall mount brackets with cam lock One way Draw System — right draw shown...
- Page 3 The drapery track must be straight and level to operate properly. When the wall brackets are securely mounted, install the track to the brackets using the cam locks. (SEE ILLUSTRATIONS BELOW FOR CAM LOCK OPERATION) Side Elevation View Level Line Brackets MUST be mounted STRAIGHT AND LEVEL SIVOIA QED Drapery Installation Instructions...
- Page 4 Top View C A M L E V E R Cam is fully engaged when bracket the tab on the cam is against the track. Push in cam lever until the tab is against the track. SIVOIA QED Drapery Installation Instructions...
- Page 5 The brackets should be mounted on a straight and level line. If the contour of the ceiling is not straight and level, use shims between the cam lock bracket and the ceiling to compensate for the irregularities. Side Elevation View Level Line SIVOIA QED Drapery Installation Instructions...
- Page 6 C A M L E V E R Track Swing cam lock arm to lock track to cam lock bracket. Cam is fully engaged when the tab on the cam is against the track. Locked SIVOIA QED Drapery Installation Instructions...
- Page 7 Replace plastic square plug by pushing it up into the square hole until it snaps into place. Square hole Push up SIVOIA QED Drapery Installation Instructions...
- Page 8 Insert or remove auxiliary carriers through the square hole in the idle end cap until the proper number of carriers are installed. Install idle end hook eye and replace the idle end cover using the screw removed in step 2. SIVOIA QED Drapery Installation Instructions...
- Page 9 This allows the system to operate with minimal noise. .50 in D R A P E R Y F A B R I C R E T U R N 4.0-6.5 in (depends on wall mount bracket extension) SIVOIA QED Drapery Installation Instructions...
- Page 10 System Wiring – Multiple EDUs Wire each EDU to a Sivoia QEDTM plug-in transformer, junction-box-mount transformer, or a Sivoia QED power panel. Each EDU must be EARTH grounded. Each transformer, of any type, can power ONLY ONE EDU, regardless of drapery size.
- Page 11 4 keypads to Power Panel - 200 feet (red,red/white) 1- #18AWG Earth Ground (green/yellow) 4- #18AWG Comm Link (blue,yellow, violet, gray, twisted and shielded) Note: If Sivoia QED cable is used for keypad wiring, there would be extra conductors left unused. SIVOIA QED Drapery Installation Instructions...
- Page 12 EDU to EDU - 500 feet (twisted and shielded) Maximum Total Communication link - 4000 feet Power Supply Maximum Wire Length 3 Conductor #16-20AWG Transformer to EDU #16AWG - 200 feet #18AWG - 150 feet #20AWG - 100 feet SIVOIA QED Drapery Installation Instructions...
- Page 13 ¥ The SV-IR must NOT be located near lighting fixtures or in direct sunlight. ¥ The SV-IR must be located within 50 ft of the EDU it is connected to. Add up to five SV-IR-EXT-10 extension cables (10 ft each). SIVOIA QED Drapery Installation Instructions...
- Page 14 Press and hold the Open Limit Set or button for 5 seconds, the LED will flash oL for 2 seconds then go dark, indicating the current position has been stored as the open limit. Open Limit Set Button SIVOIA QED Drapery Installation Instructions...
- Page 15 Close Limit Close Limit Set Button Set Button STEP 2 Adjust the position of the EDU to the desired close limit using the adjustment arrows buttons. Adjustment Arrow Button SIVOIA QED Drapery Installation Instructions...
-
Page 16: Troubleshooting
Drapery will not move to full open or full close..Confirm that drapery fabric is not obstructed or caught on something..Confirm that drapery fabric is hanging from only the 1st and 4th holes of the master car. SIVOIA QED Drapery Installation Instructions... -
Page 17: Limited Warranty
Vimco warrants, for eight years from shipment, Vimco to be due to normal wear and tear, or to each new Sivoia QED Drapery System to be free abuse, misuse, or accident, such as: from defects in materials or workmanship under a. -
Page 18: Technical Assistance
DES. 437,585; DES. 450,043; and DES 462,332. and corresponding foreign patents. US and foreign patents pending. Lutron, the Sunburst logo, and Sivoia are registered trademarks, and Sivoia QED and Lutron controls your light are trademarks of Lutron Electronics Co., Inc. Technical Assistance... - Page 19 450,043; and DES 462,332. and corresponding foreign patents. US and foreign patents pending. Lutron, the Sunburst logo, and Sivoia are regis- tered trademarks, and Sivoia QED and Lutron controls your light are trademarks of Lutron Electronics Co., Inc. Technical Assistance...
