Lutron Electronics Grafik Eye GRX-TVI Installation And Operating Instructions

Installation and Operation Instructions
Read Before Installing
Please Leave for Occupant
®
COOPERSBURG, PA 18036 U.S.A.
Switched Rating
Incandescent 16A
Fluorescent 5A
Magnetic Low-voltage 16A
Electronic Low-voltage 16A
Motor 1/4 HP@120V
1/2 HP@277V
Description
The GRX-TVI provides 0-10V control and ballast
switching capabilities in one enclosure. The
interface gives GRAFIK Eye
the ability to control 0-10V ballasts powered by
120V or 277V and provides switching relays that
can handle the in-rush current of a circuit of
ballasts. The interface gives a GRAFIK Eye 3000
Series Control the ability to both dim and switch
electronic ballasts such as Lutron's Eco-10
models).
Product Specifications
Weight
Input Power Rating
Mounting
Terminals
Environmental
Output Switching Capacity • Switches 100-277V
0-10V Output Rating
GRX-TV1 H Input Rating
2
GRX-TV1 DH Input Rating
2
Regulatory Approval
Features • Provides a Class 2 isolated
• Accepts a constant-gate drive

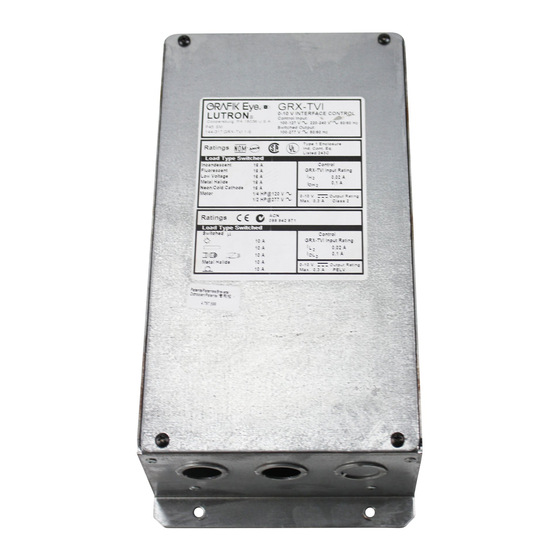

GRX-TVI
0-10V INTERFACE CONTROL
Control Input:
100-120V, 220-240V 50/60Hz
Switches:
100-277VAC
GRX-TVI Input Rating
I 0.02A
H
2
I 0.1A
DH
2
0-10V Output Rating
Max. 0.3A
3000 Series Control
®
(TVE
™
4.25 lb., (2kg)
100-120/220-240V 50/60Hz
Mount on a wall with 4 screws
(Not Provided).
2, No. 12-20AWG or 0.5-
2.5mm 2 conductors per terminal
32-104°F (0-40°C)
Fluorescent ....................... 5A
Incandescent .................. 16A
Low Voltage .................... 16A
Metal Halide .................... 16A
Neon/Cold Cathode ........ 16A
Motor .............. 1/4Hp @ 120V
Motor .............. 1/2Hp @ 240V
10µA-300mA
20mA
100mA
Complies with Standard UL 508
0-10V output signal that
conforms to EN60929 and
IEC929
fluorescent signal. (100-120V,
220-240V, 50/60Hz)

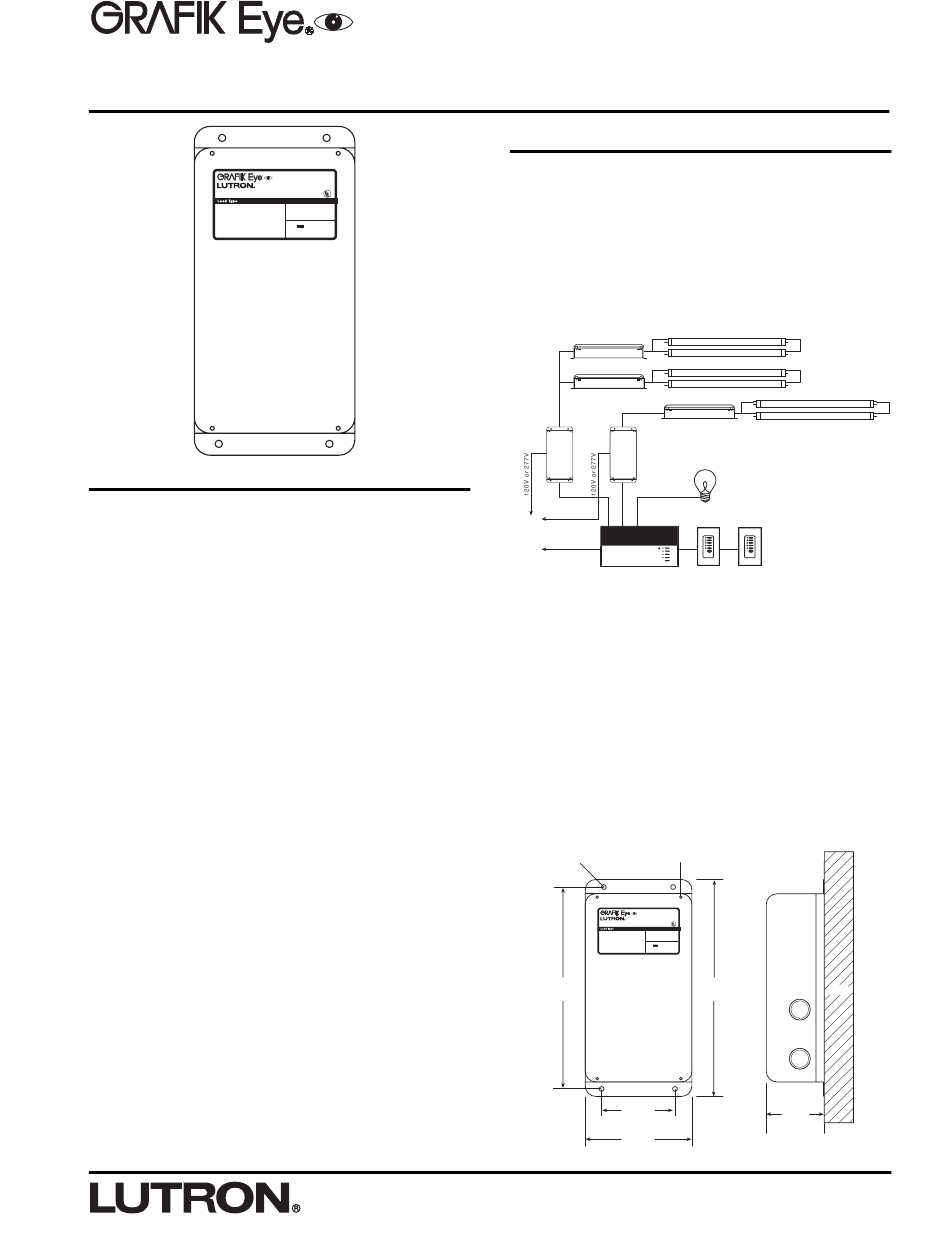

GRX-TVI
Phase Control to 0-10V
Interface Control
Installation
Find a suitable location for mounting.
• Look at the System Wiring Layout (below) to
decide on the proper location for the GRX-TVI
(for indoor use only, type1 enclosure).
• The environment where the GRX-TVI is placed
must have an ambient temperature between 32-
104°F (0-40°C).
System Wiring Layout
0-10V Control Fluorescent Zone/Load 1
0-10 Volt Ballast
0-10V Control Fluorescent Zone/Load 1
0-10 Volt Ballast
GRX- GRX-
TVI TVI
To
Distribution
Panel
120V
LUTRON
GRX-3000 Series Control Class 2 Accessory Controls
NOTE: When interfacing with a GRAFIK Eye 3000
Series Control, a GRX-TVI interface is required for
each fluorescent dimming zone. (Three zone unit
with two fluorescent zones and one incandescent
zone shown as an example.)
Mounting
• Mount the enclosure vertically on a wall. (See
Mounting Diagram below.)
• Mounting method must be able to support
weight and forces applied during installation.
Mounting Diagram
Four Mounting Holes Four Screws
Diameter - .25", 6mm Secure Cover
GRX-TVI
® 0-10V INTERFACE CONTROL
Control Input:
100-120V, 220-240V 50/60Hz
COOPERSBURG, PA 18036 U.S.A. Switches:
100-277VAC
Switched Rating GRX-TVI Input Rating
Incandescent 16A
I 0.02A
H 2
Fluorescent 5A I 0.1A
DH
2
Magnetic Low-voltage 16A
Electronic Low-voltage 16A 0-10V Output Rating
Max. 0.3A
Motor 1/4 HP@120V
1/2 HP@277V
11.75"
298mm
4.0"
102mm
6.10"
155mm
